SIMRAD IS35 Engine Instrument Display - Suzuki Honda Yamaha Outboard - NMEA2000

SIMRAD IS35 Colour Instrument Display

Simrad IS35 Color Gauge is used to display engine and vessel related data on the network provided by NMEA 2000 compatible engines and sensors.

Connects to NMEA 2000 networks via integrated 1.2 m (4 ft) cable with Micro-C male connector.

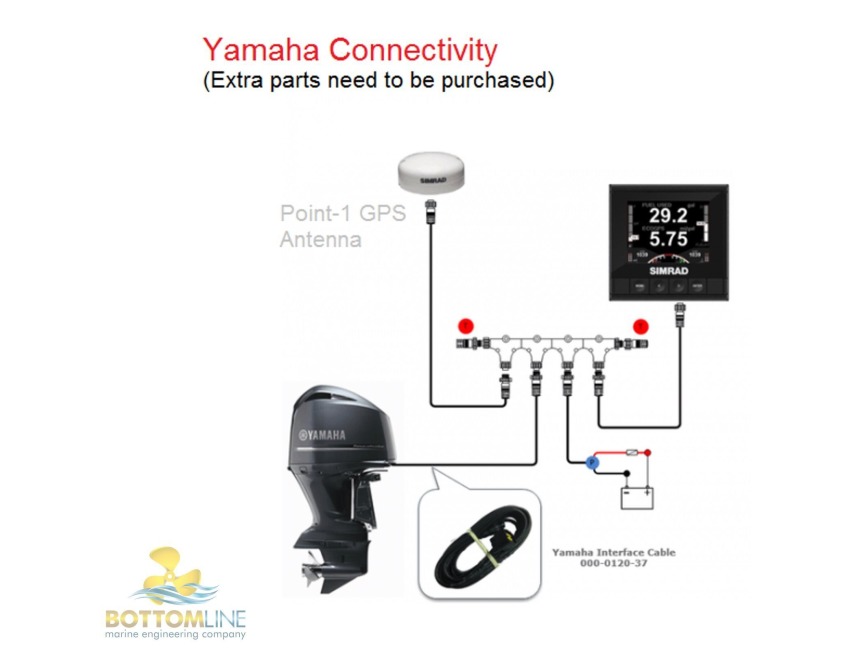

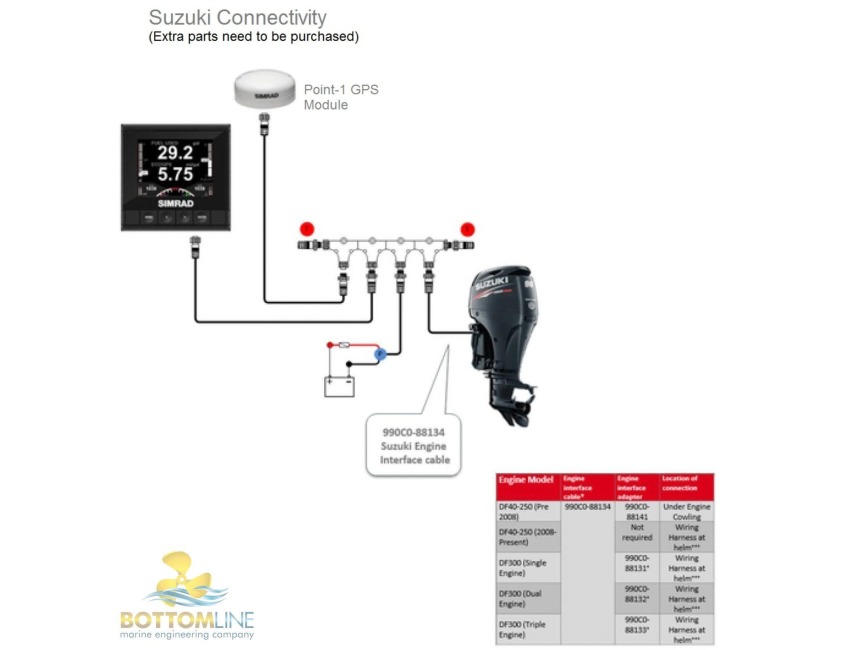

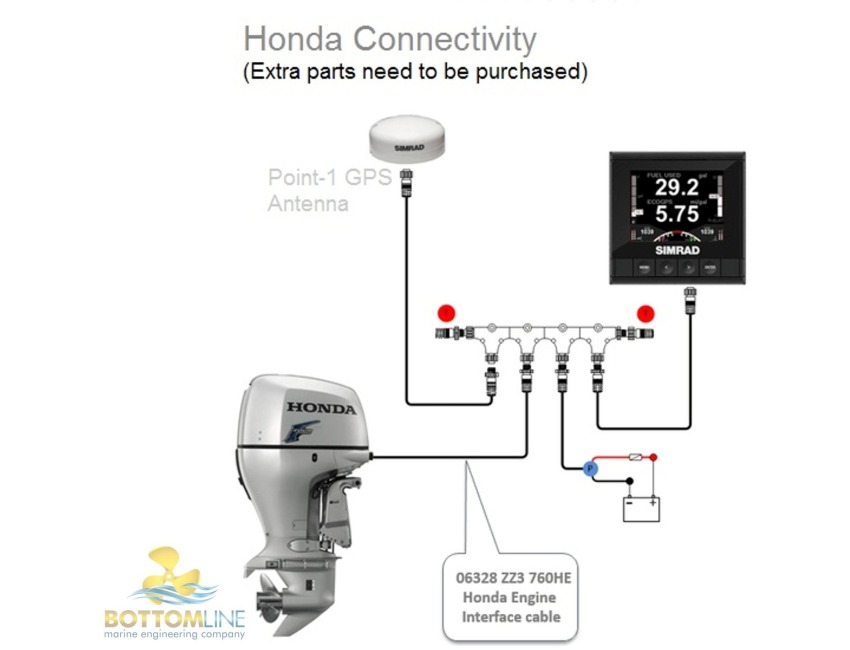

You can use the IS35 as engine display for most types of marine engines, either via a NMEA2000 gateway, or a J1939 to NMEA2000 convertor. (for example the Livorsi CAN Data Gateway).

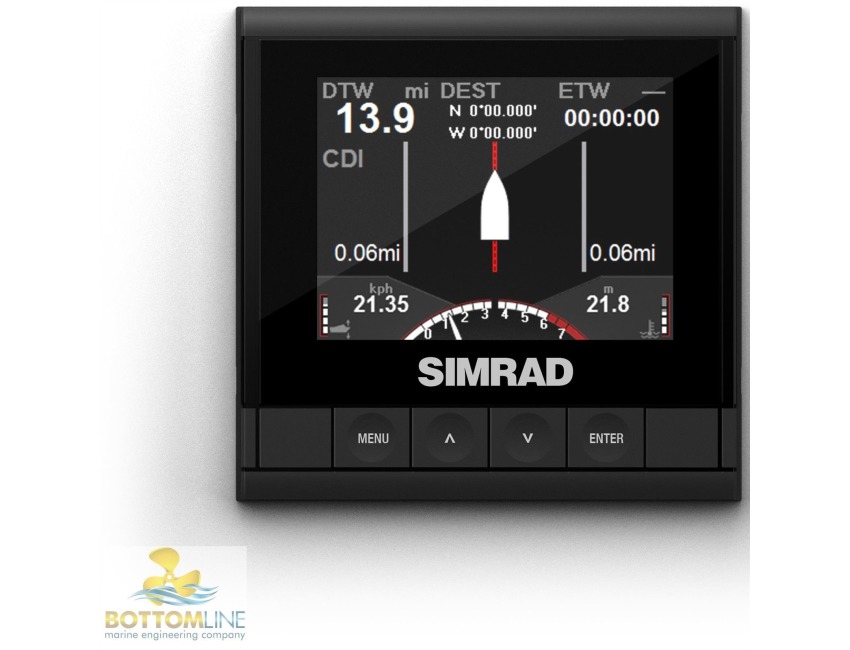

The IS35 comes with 5 pre-configured pages for the most commonly used information when operating vessels.
The information on these pages is automatically displayed from an internal hierarchy of available data.

IS35 Colour Instrument Display Key Features:
Automatic display of prioritized dynamic data types. (RPM, fuel flow, economy, speed etc.)

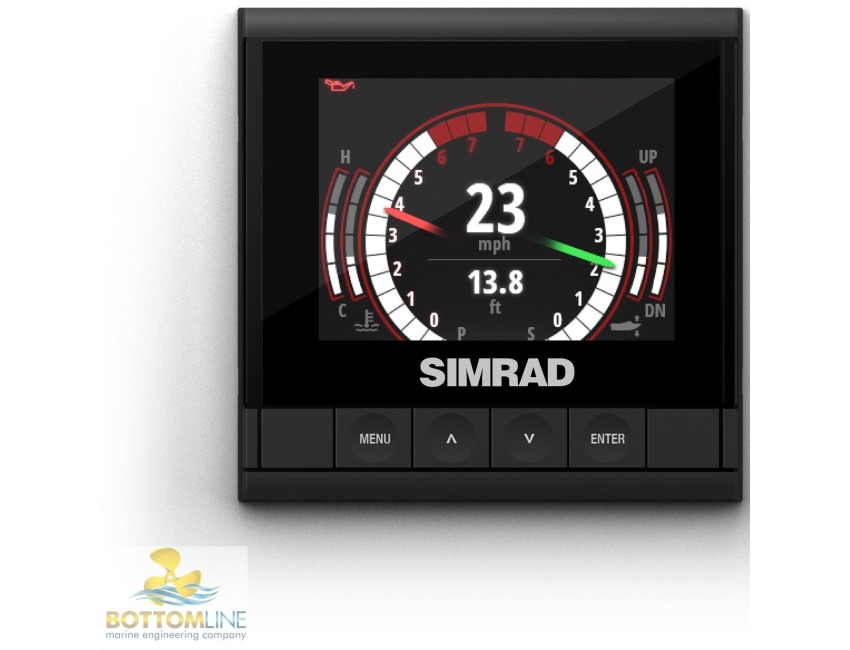

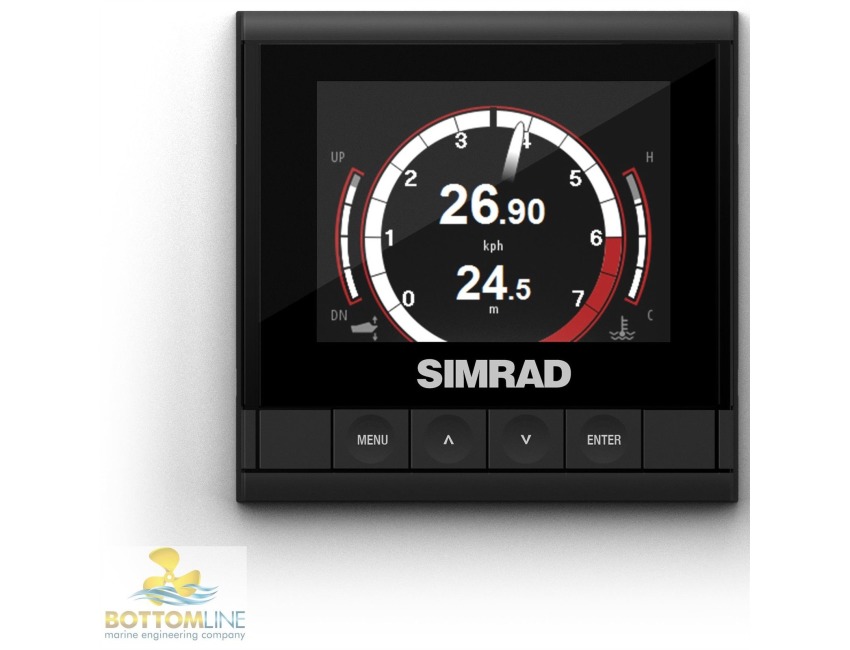

Bright, full color 240 × 360 LED screen makes it easier to see menus and screen detail in both full sunlight and night operation.
Menu button doubles as backlight control.

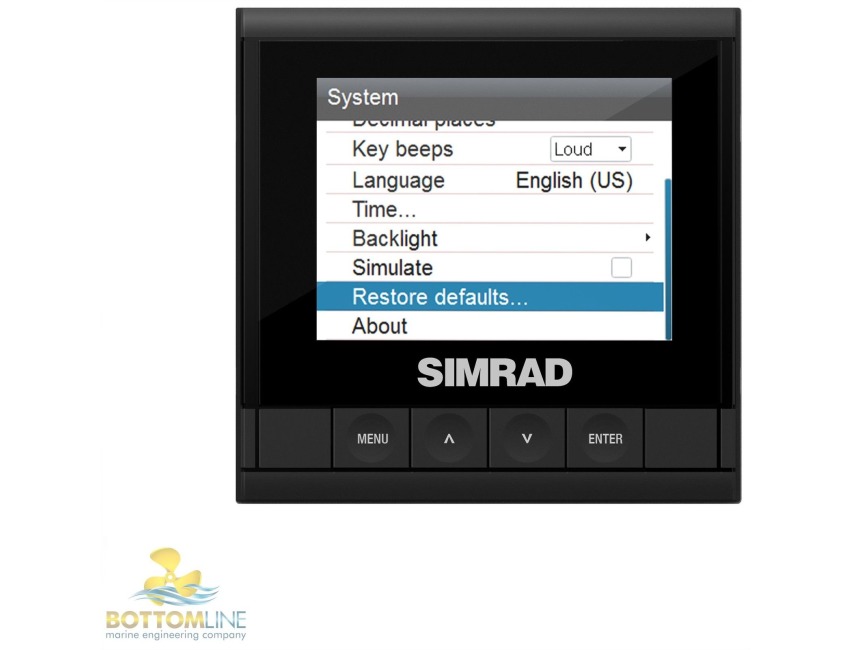

Simple menu navigation using menu, arrow and enter buttons.
Easily swap between pages using arrow keys.
Page cycle with configurable times.

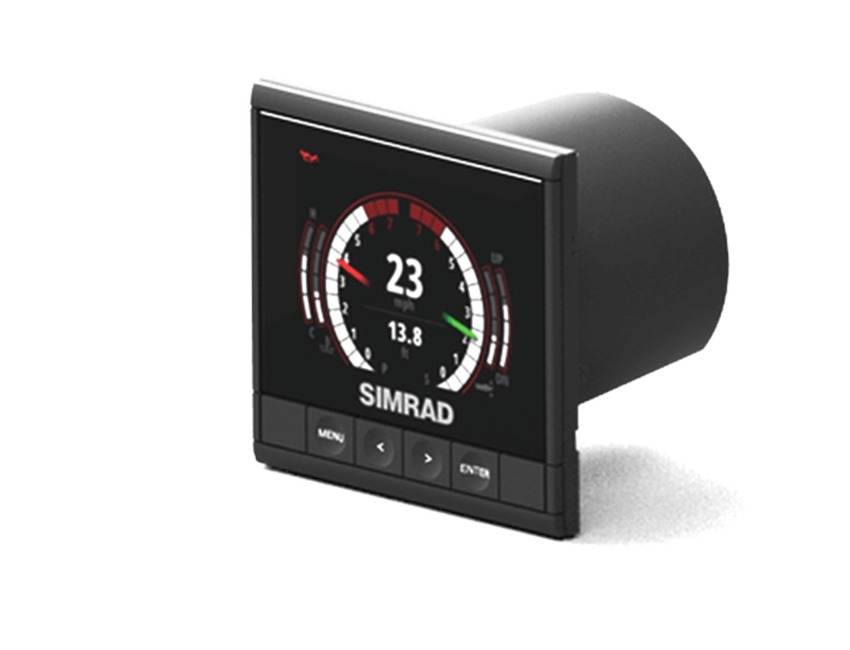

Surface mount, or flush/rear mount option.

Pre configured data pages

Motoring.
Engine Monitoring.
Fuel Economy.
Depth History.
Motor Steer
Device will automatically detect available sensors on the network and display the most relevant information on the corresponding pages.

User Interface The IS35 is running on the NOS (Navico Operating System) platform. Anyone that is familiar with Navico products will quickly and easily understand the user interface of the IS35. Power Control The unit automatically starts up when N2K bus is powered. The IS35 cant be powered off but can be put into standby. Refueling You can quickly set the fuel to full, or add a fuel amount directly from pressing menu on the fuel page, or by the settings menu and going to Fuel. Auto scroll The IS35 can be set to automatically scroll through the pages ranging from 1 to 10 seconds.

Other Features:

Easy to install
Fits standard gauge hole
Display NMEA2000 engine information affordably
Automatically displays information relevant to which sensors are installed
Easily display fuel management information
Glass dash low profile display
Rear mount option for flush mount glass dash installs
Automatic page scrolling with configurable adjustable delay time
Simple user interface
Dedicated engine display
Display following information on non-NMEA2000 engines by installing sensors:
Fuel flow
Fuel used
Fuel remaining
Water pressure

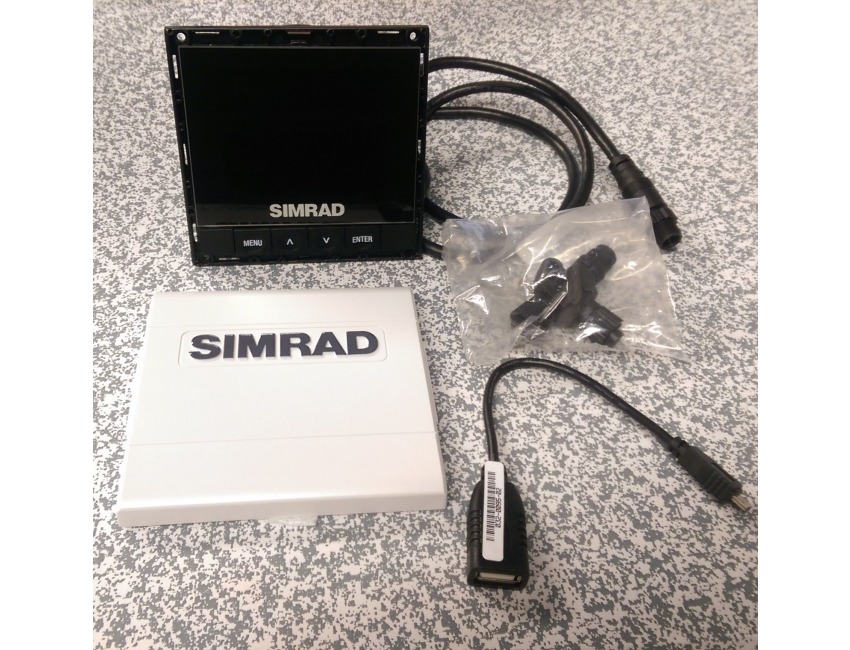

Box contents:
IS35 display withintegrated 1.2mNMEA2000 cable
Screen cover
NMEA2000 T piece
USB cable
