YAMAHA engine interface cable - Lowrance HDS - Link Cable - NMEA2000 - N2K - 000-0120-37

Click to enlarge

MPN 000-0120-37

£118.79

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

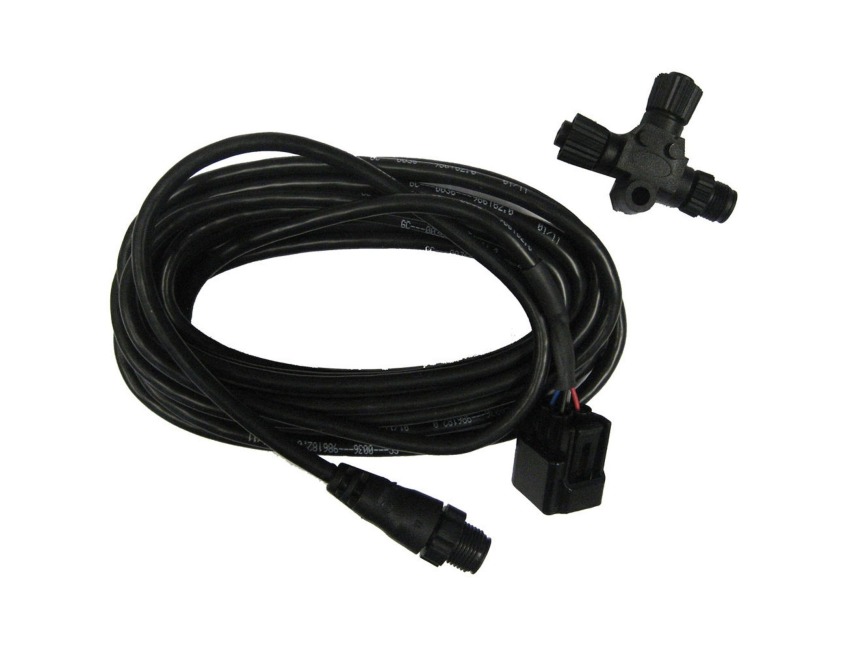

Lowrance Yamaha engine interface cable 120-37.

For use when Yamaha command link isn't used.

Interface between a compatible Yamaha engine and NMEA network to display engine data. Comes with a NMEA2000 'T' connector.

(This will not connect from a Yamaha command link hub to your MFD directly as the NMEA2000 plug is the incorrect gender)

For use with NMEA2000 network.
Works with: NMEA 2000 compliant units. F50, F60, F70 etc.

Length: 4.5m
This will cable will enable engine data to be displayed on your HDS, Elite TI, FS, Simrad NSS, GO etc:
Temperature, charge voltage, pressures, levels, trim,RPM, etc

NMEA2000 instruments can use engine data such as speed, fuel flow and tank levels to calculate range etc.

NMEA 2000 networks are easy to set up - here's the basics:
You can have up to 50 'T' pieces and drop cables.
The NMEA 2000 backbone must have a terminator at each end.
There must be one NMEA 2000 power cable.
Everything else is optional (including the backbone cable)

Specification List

Type Network - NMEA Sub-Type Engine to NMEA 2000 Device
