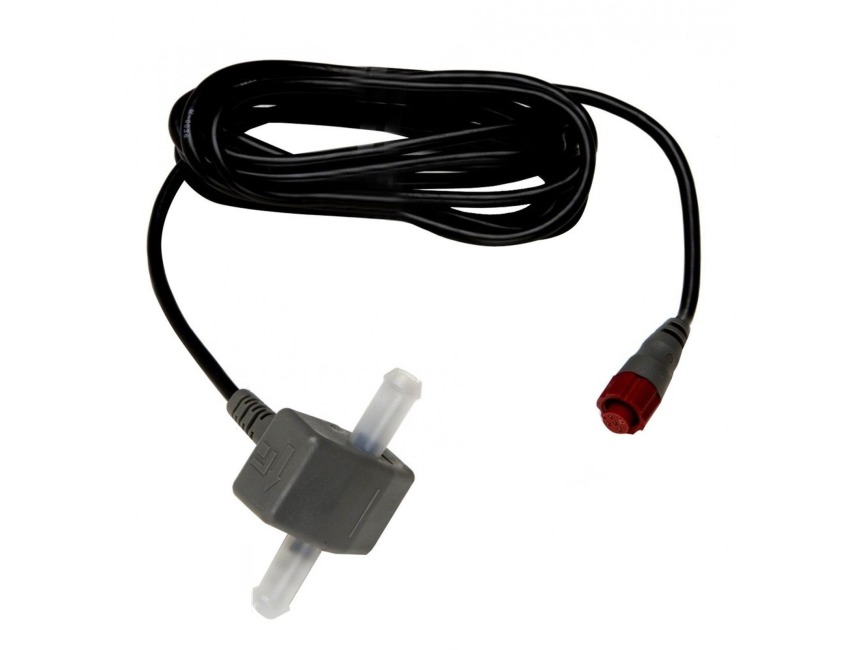

Lowrance - Fuel flow Sensor - NMEA 2000 - N2K - LMF-200 / 400 - 000-11517-001

NMEA 2000 Fuel Flow sender Fuel Flow Sensor Petrol only. One required per engine. Up to 3 engines supported. Outputs: Fuel Flow Tank Fuel Used Trip Fuel Used Seasonal Fuel Used Cable Length: 10 Ft Fuel Line Diameter: 3/8" (9.5 mm) Inside Diameter Flow Rate Measured: Optimized for 0.6-45 Gal/hr but can measure outside these values Added Back Pressure to the fuel system: 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr Installation Location: Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line Package: The Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps Fuel Type: Petrol only. The Fuel Flow Sensor does not operate diesel engine fuel systems.
(or any other fuel system with a return) Hole required to route through a bulkhead: 22mm (7/8") Multiple Fuel Flow sensors possible: Yes
