Blue Sea - Battery Switch - Mini - Marine rated - 3-Position - Black - 6008200

Click to enlarge

Code165217108704

MPN 6008200

£70.68

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

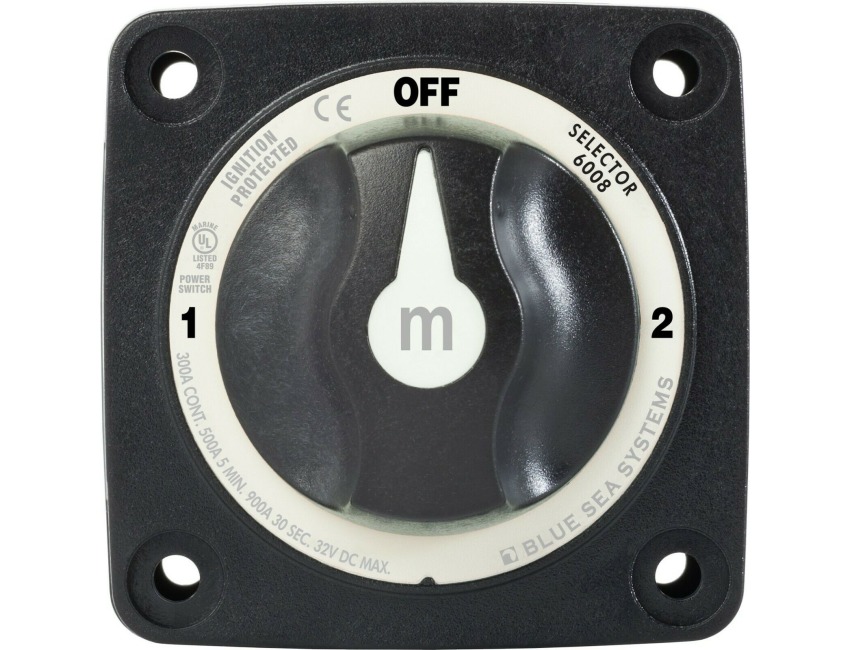

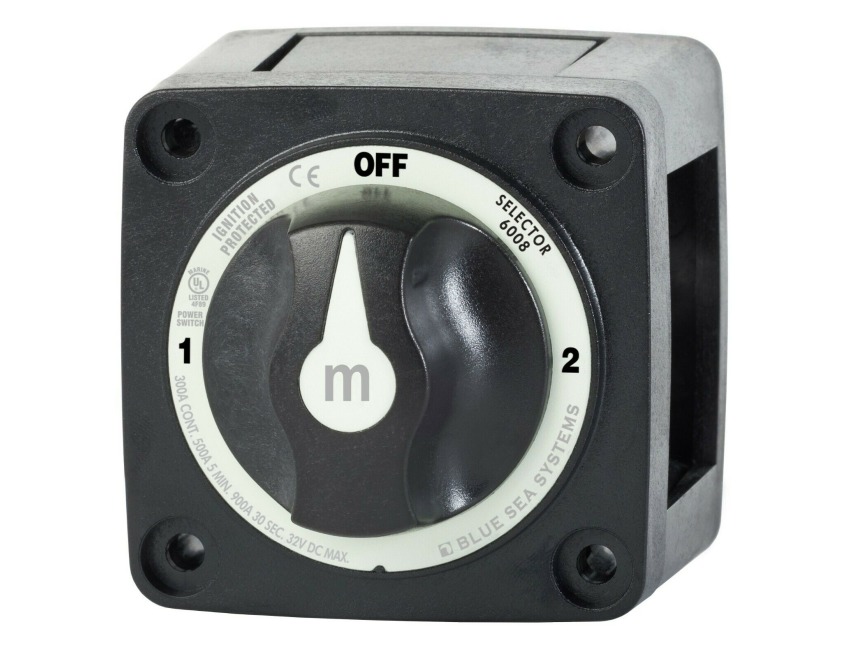

Blue Sea - 3 Position Battery switch

Blue Sea - M-Series - Battery Switch

PN 6008200 - Marine rated - IP66

Switches isolated battery banks to load

Rated for 900amp cranking for 30 seconds (300amp continuous)

Ignition protectedsafe for installation aboard petrol powered boats.

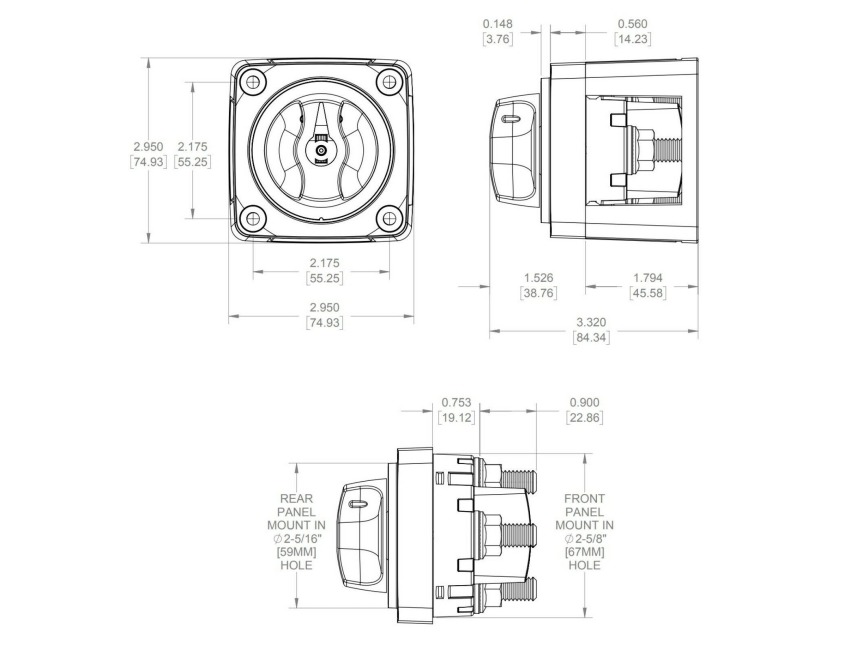

Case design allows surface, front panel, or rear panel mounting.

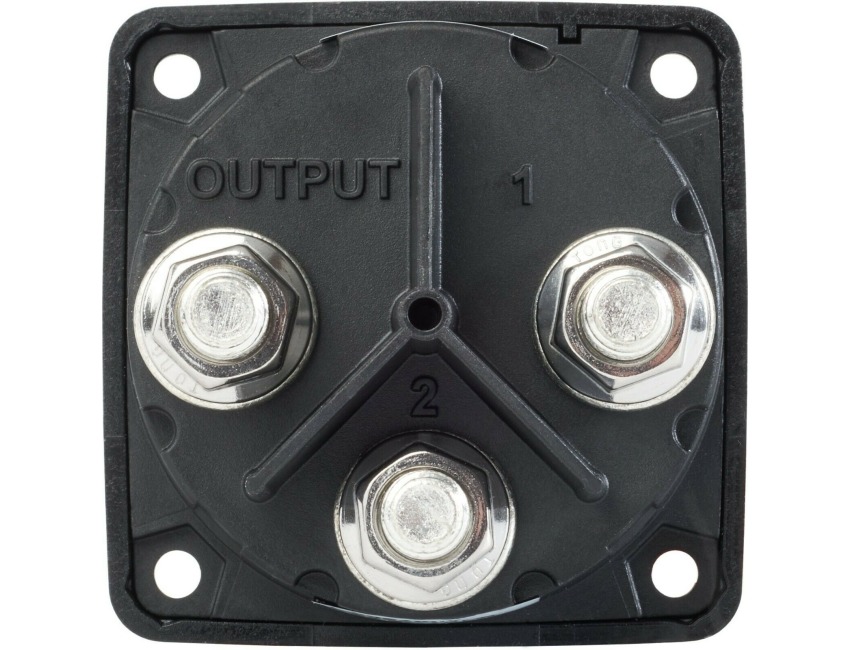

Isolating cover with snap-on sections protects rear contacts.

Specifications

Continuous Rating 300 Amps

Terminal Stud Size 3/8"-16 (M10)

Terminal Stud Torque 120 in-lb (13.56 Nm) max.

Cable Size to Meet Ratings 4/0 AWG (120mm)

Cable Clearance For 4/0 AWG Cables 1.12" (28.4mm)

Agency Standards UL Listed - UL 1107 electric power switches Meets UL 1500 and SAE J1171,

external ignition protection requirements Agency Standards CE Marked

Specification List

Type Battery switch Sub-Type 3 Position
Country/Region of Manufacture United States
