Blue Sea Systems - Weather Deck Circuit Breaker Panel - 6 Position - MPN 4376

Blue Sea Systems - Weather Deck Circuit Breaker Panel - 6 Position

PN: 4376

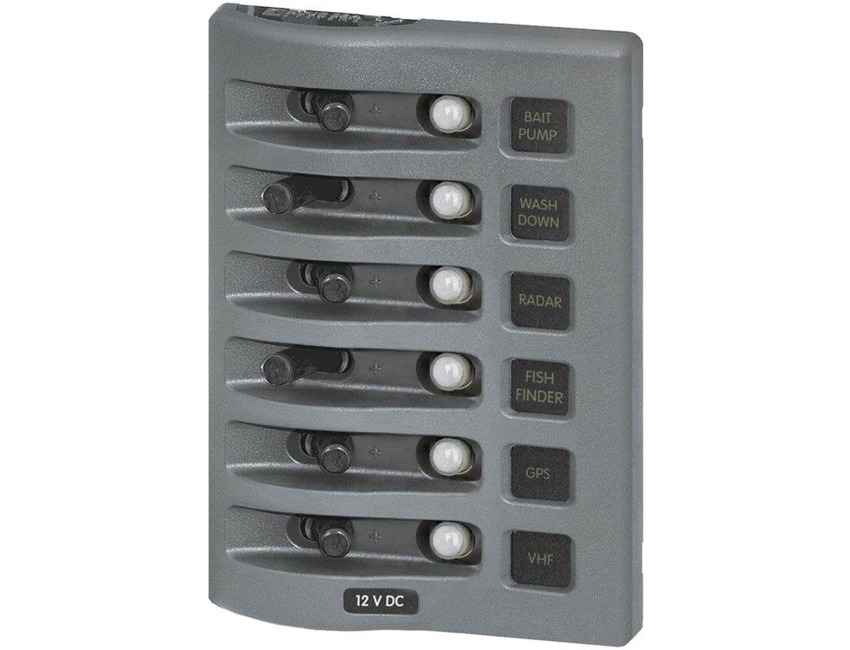

WeatherDeck Water Resistant Circuit Breaker Panel6 Position - Gray
Blue Sea Systems WeatherDeck™ Waterproof Circuit Breaker Panels provide circuit protection for flybridge and open-cockpits with push-to-reset control.
Switch guards reduce the risk of accidental switching and are designed for 12 or 24 volt systems.
The weather-resistant face plate is UV stabilized and snaps on and off for access to components and conceals mounting screws. 4.25"W x 6"H x 3.5"D.

(Image shows 4 way switch, this listing is for a6 way in the same style)

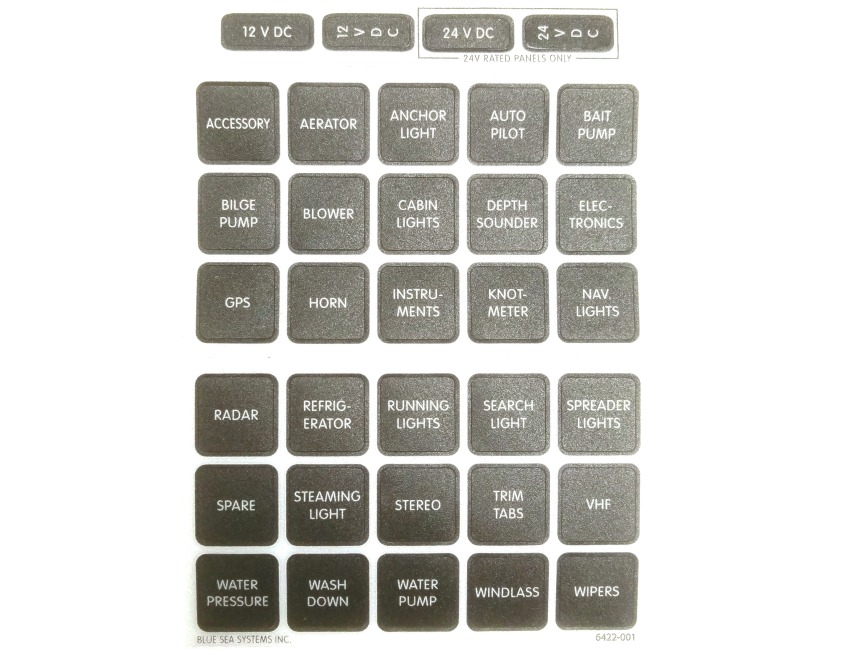

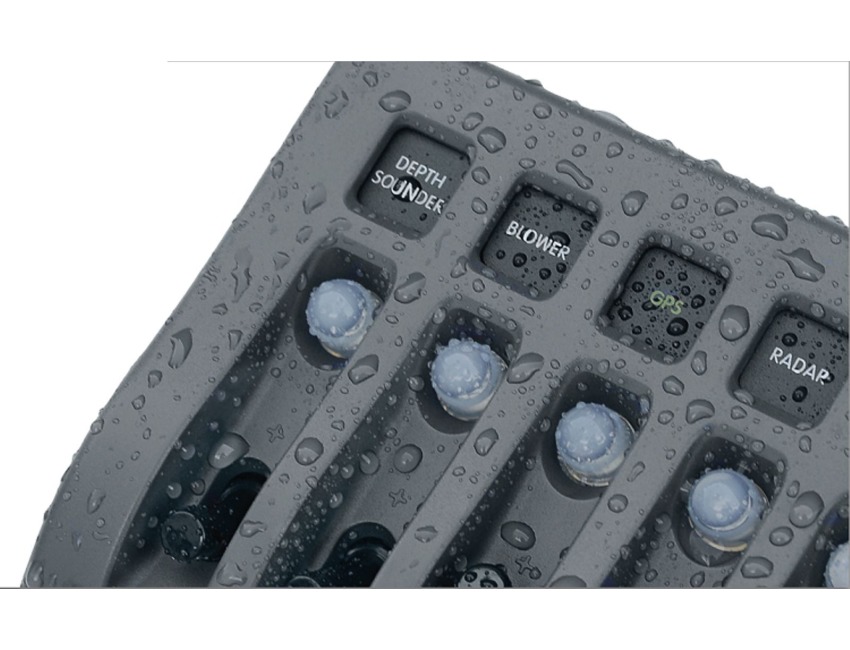

Rated IP67-temporary immersion for 30 minutes Designed for flybridge and open cockpit applications Independent label backlighting allows switching and dimming Compatible with all Blue Sea Systems Digital Dimmers Each panel can be mounted in four different orientations UV stabilized and weather resistant faceplate Constructed from corrosion resistant materials Green LEDs illuminate circuit labels Includes 4215 - 30 Square Format Labels
Specifications
Panel Material Reinforced Thermoplastic Backlighting Voltage 12 or 24 Volts DC Circuit Breaker Rating 15 amperes Cover Material UV Resistant Thermoplastic Switch Rating 15 Amperes Maximum Height in" (mm) 6 (152.4) Maximum Voltage Rating 12 or 24 Volts DC Circuit Breaker Type Thermal Trip, Manual Reset Only with waterproof boot Weight Lb (Kg) 1.35 (0.61) Maximum Amperage Per Circuit 15 Amperes @ 12 Volts DC, 9 Amperes @ 24 Volts DC Width in" (mm) 4.25 (107.95) Panel Cumulative Rating 45 Amperes Switch Type OFF/ON Toggle Backlighting Amperage Draw 10mA / Illuminated Circuit
