Blue Sea - 12 way blade fuse distribution box - MPN 5026

Click to enlarge

Code153569949040

MPN 5026

£76.24

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

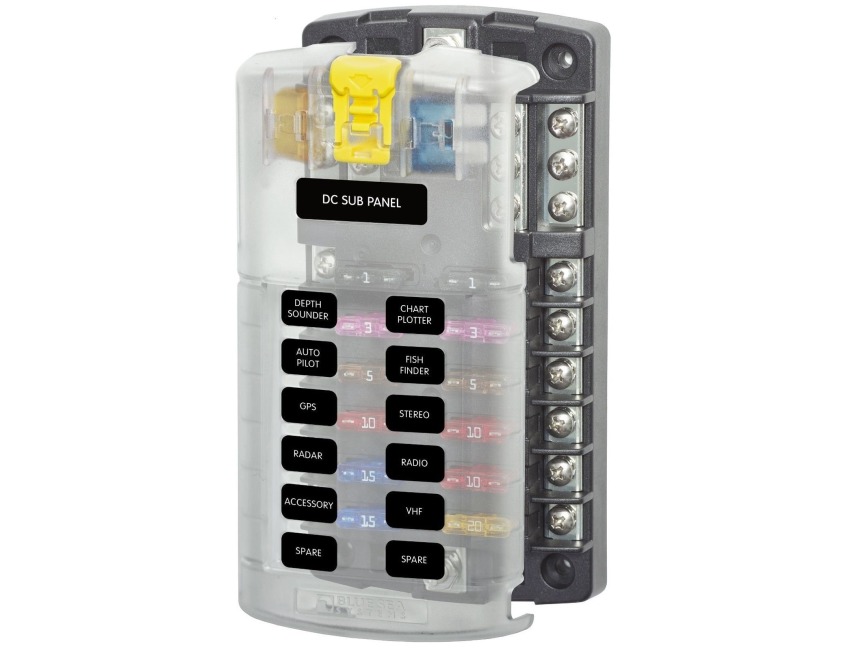

Blue Sea Systems - 12Way Fuse box

PN 5026
ST Blade Fuse Block - 12 Circuits with Negative Bus and Cover
(No fuses supplied with unit)

The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel.
A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block.
This is frequently done for electronics that each have their own ON-OFF switch and dont require the switching offered by a circuit breaker.
The12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.

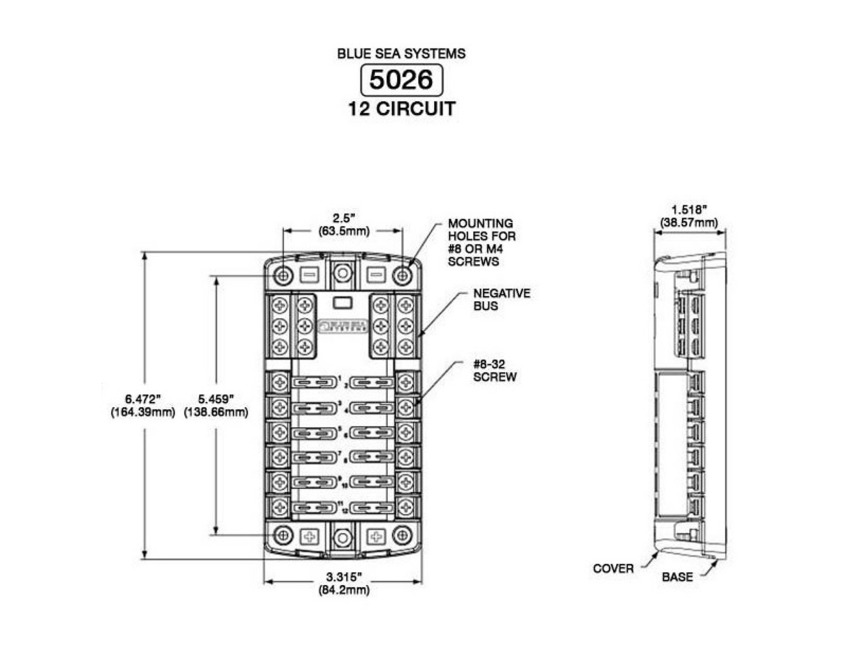

Specification:
Circuits12
Maximum Amperage 100A per block 30A per circuit
Maximum Voltage 32V DC
Mounting Screw (M4)
Positive Bus #10-32 Stud
Recommended Torque 24 in-lb (2.71 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
Weight 0.75lb (0.34 kg)
Fuses sold separately

Specification List

Type Fuse box Sub-Type 12 way
Country/Region of Manufacture United States
