Description

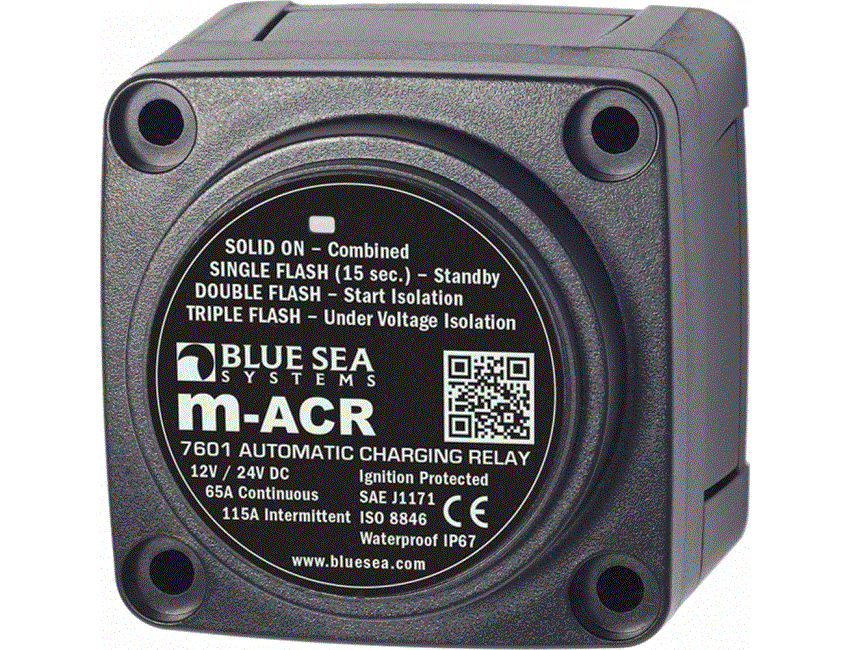

Blue Sea m-Series Automatic Charging Relay - 12/24V DC 65A

Part No. 7601
The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines.

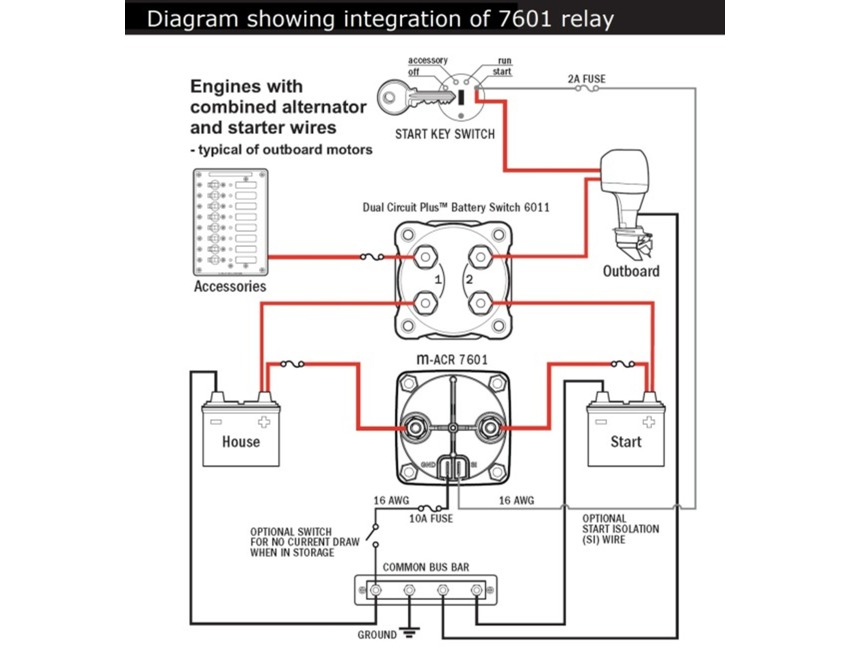

Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes.

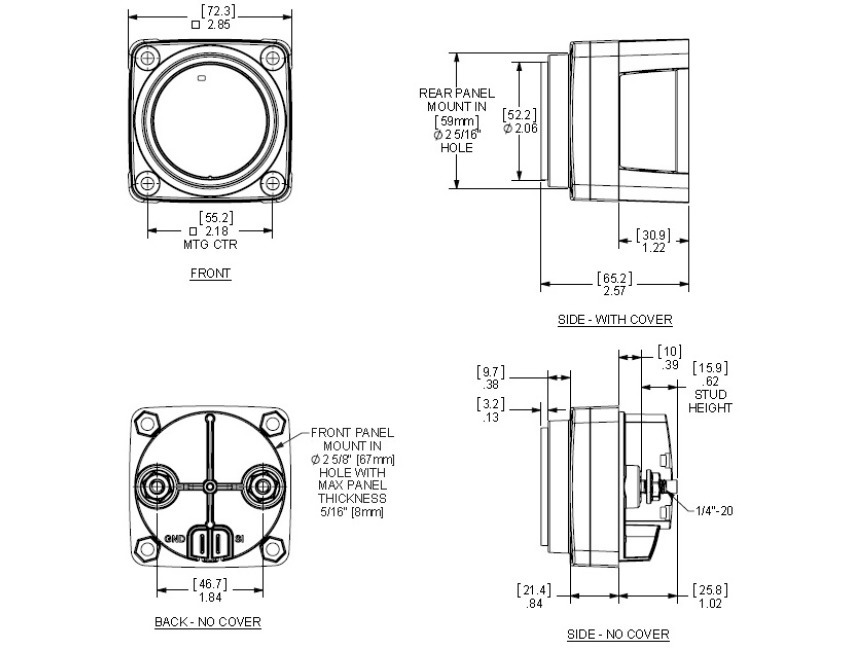

The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel.
Features
Senses charging on two battery banks
Pull off and snap on insulating cover
LED indicates ACR status
1/4" x .032" male quick connect terminal for ground
7/16" (11 mm) stud length to accept multiple cable terminals
Waterproof – rated IP67 for temporary immersion

Specifications:
Nominal Voltage - 12V DC24V DC
Start Isolation - Yes
Amperage Operating Current - 90mA (Combine)15mA (Open)
Terminal Stud Torque - 60 in-lb (6.78 Nm)
Continuous Rating - 65A
Intermittent Rating - 115A (5 min)
Cable Size to Meet Ratings - 6 AWG
Maximum Cable Size - 1/0 AWG
Stud Material - Tinned Brass
Terminal Stud Size - 1/4" - 20 (M6)
Relay Contact Position -
Combine 30 sec - 13.6V DC
Open 10 sec - 12.35V DC
Open 30 sec - 12.75V DC
Open High - 16.0V
Under Voltage Lockout - 9.5V
Weight - 0.80lb (0.36 kg)

Specification List

Type Charging relay Weight 0.80lb (0.36 kg)
Sub-Type M Series Country/Region of Manufacture United States
