Description

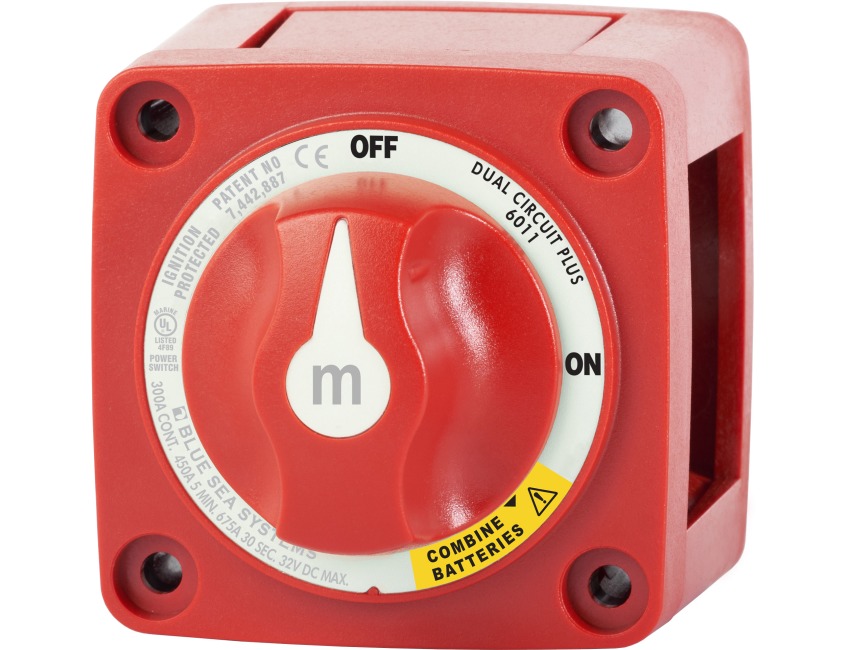

Blue Sea - M-Series - Dual Circuit Plus - Battery Switch

PN 6011 - Marine rated - IP66 - OFF/ON/PLUS

Model 6011 - Isolates start and house circuits and combines both battery banks for emergency starting.(OFF/ON/PLUS)
Rated for 1200amp cranking for 2.5 seconds (300amp continuous)
Ignition protectedsafe for installation aboard petrol powered boats.
Case design allows surface, front panel, or rear panel mounting.

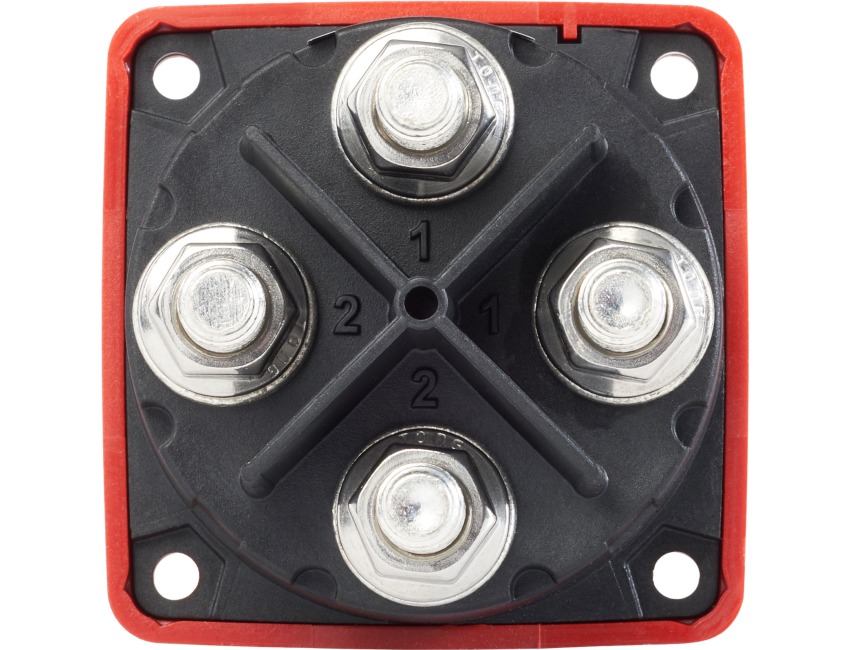

Isolating cover with snap-on sections protects rear contacts.

Specifications
Continuous Rating 300 Amps
Terminal Stud Size 3/8"-16 (M10)
Terminal Stud Torque 120 in-lb (13.56 Nm) max.
Cable Size to Meet Ratings 4/0 AWG (120mm)
Cable Clearance For 4/0 AWG Cables 1.12" (28.4mm)
Agency Standards UL Listed - UL 1107 electric power switches Meets UL 1500 and SAE J1171,
external ignition protection requirements Agency Standards CE Marked

Specification List

Type Battery switch Sub-Type ON - OFF - Combine
