Blue Sea - 6005 Battery Switch With Key -300A - Mini - Marine rated - IP66 - OFF/ON

Click to enlarge

Code185009426229

MPN 6005

£43.62

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

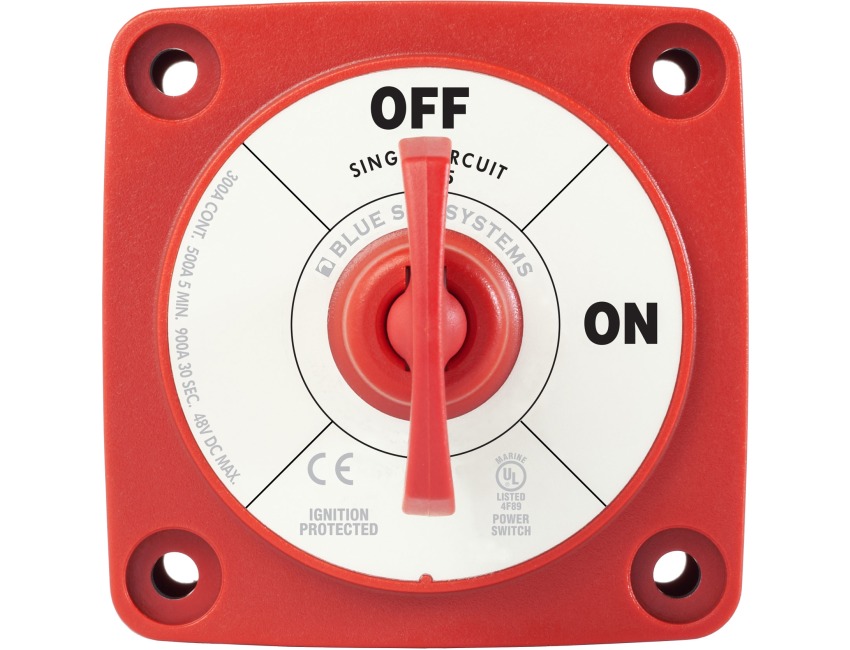

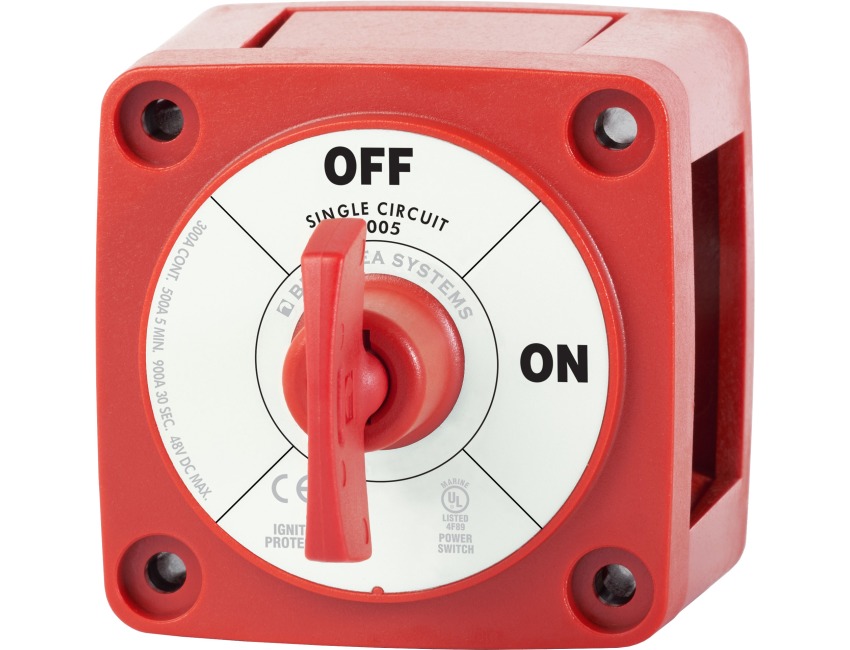

Blue Sea - Battery switch with Key

Part number: 6005

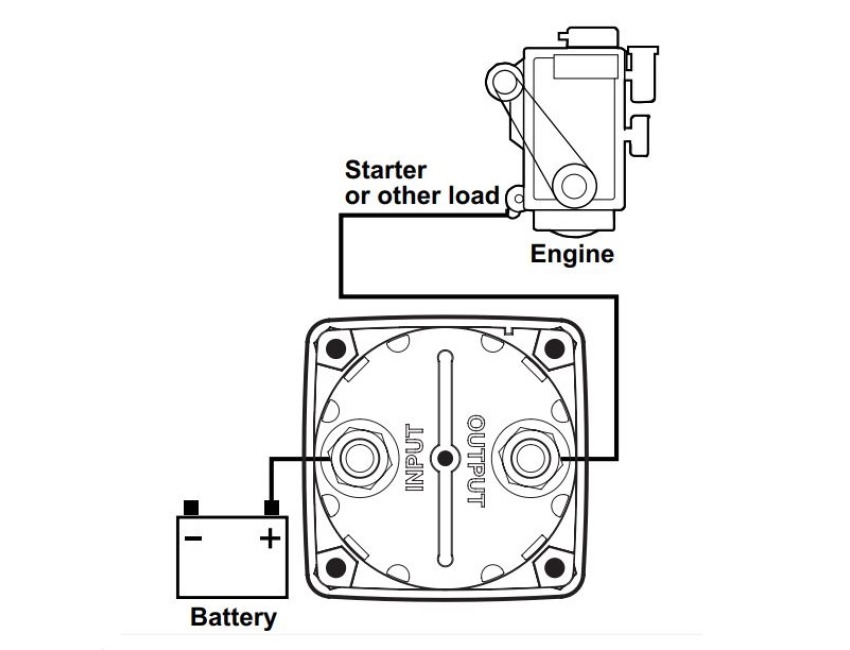

Switches a single battery to a single load group

Ignition protected—safe for installation aboard gasoline powered boats

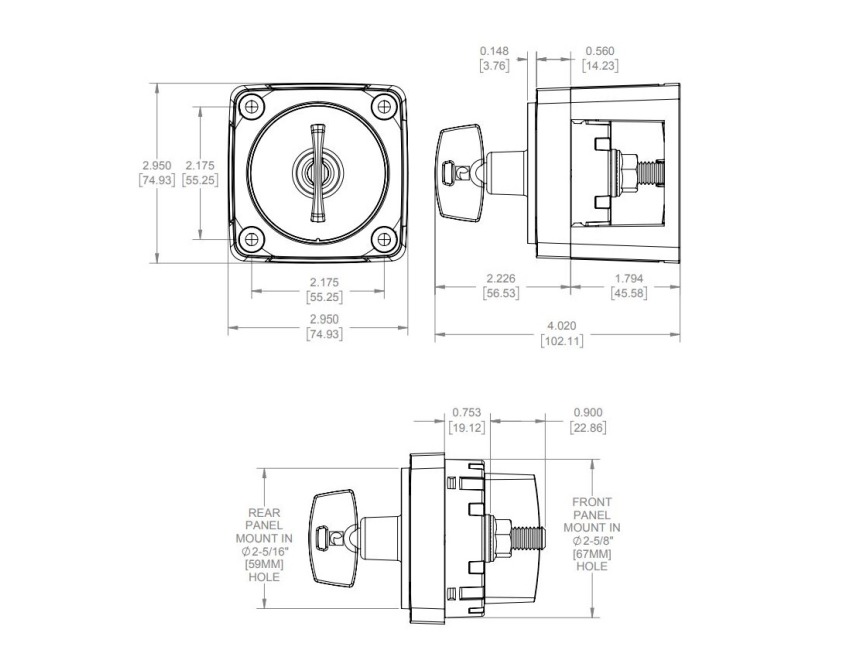

Case design allows surface, front panel, or rear panel mounting

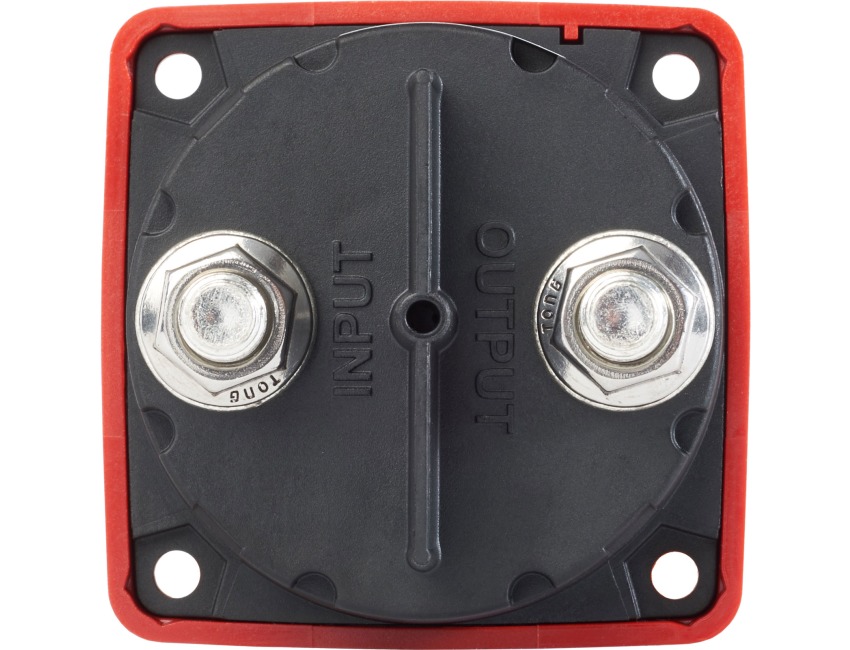

Isolating cover with snap-on sections protects rear contacts

Switches a single battery to a single load group Rated for 900 amp cranking for 10 seconds (300amp continuous) Ignition protected safe for installation aboard petrol powered boats Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts

Specifications:

Cranking Rating: 30 sec.900 Amps Intermittent Rating: 5 min. 500 Amps Continuous Rating 300 Amps Maximum Voltage Rating 48 Volts DC Terminal Stud Size 10mm Terminal Stud Torque 120 in-lb (13.56 Nm) max. Mounting Holes Accepts #10 Screws Cable Size to Meet Ratings up to 120mm Cable Clearance For Cables up to 28.45mm Operation: On- Off

Specification List

Type Battery switch Sub-Type ON / OFF
Country/Region of Manufacture United States
