Blue Sea - e-Series Dual Circuit Plus Battery Switch - 350A - PN. 5511e
Click to enlarge
Code1
MPN 5511e
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

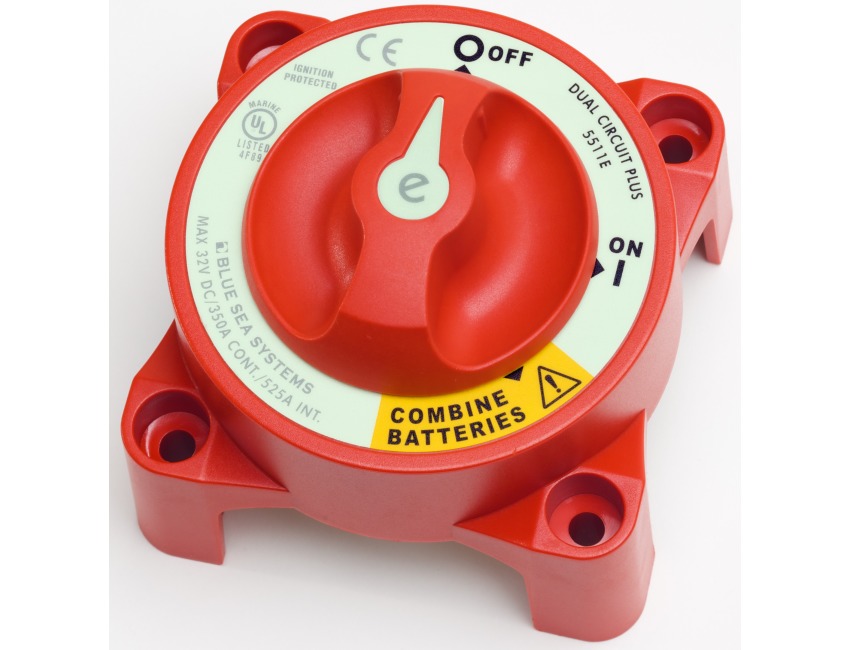

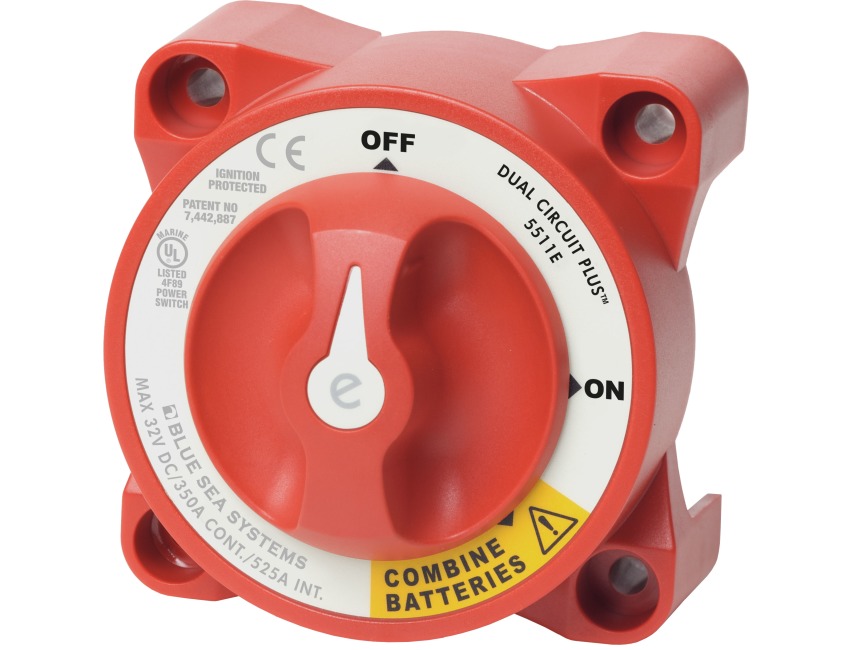

Dual Circuit Plus
ON-OFF + Emergency combine Battery switch
e-SERIES
Simultaneously switches two isolated battery banks to two isolated loads, but can also combines both battery banks to all loads in case of emergency.
350 Ampere continuous rating for inboard gasoline and diesel engines.

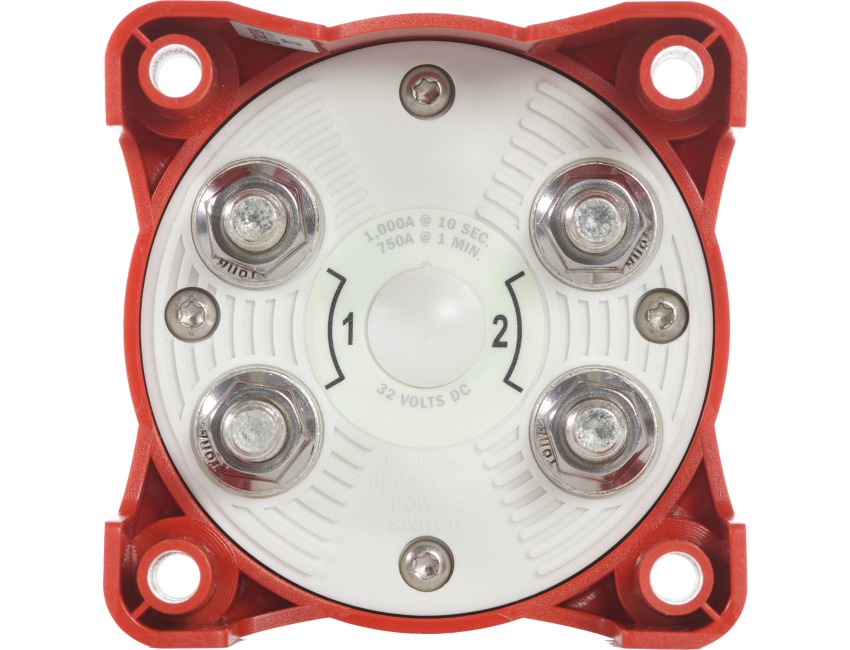

Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
One-piece terminal stud design never loosens over time

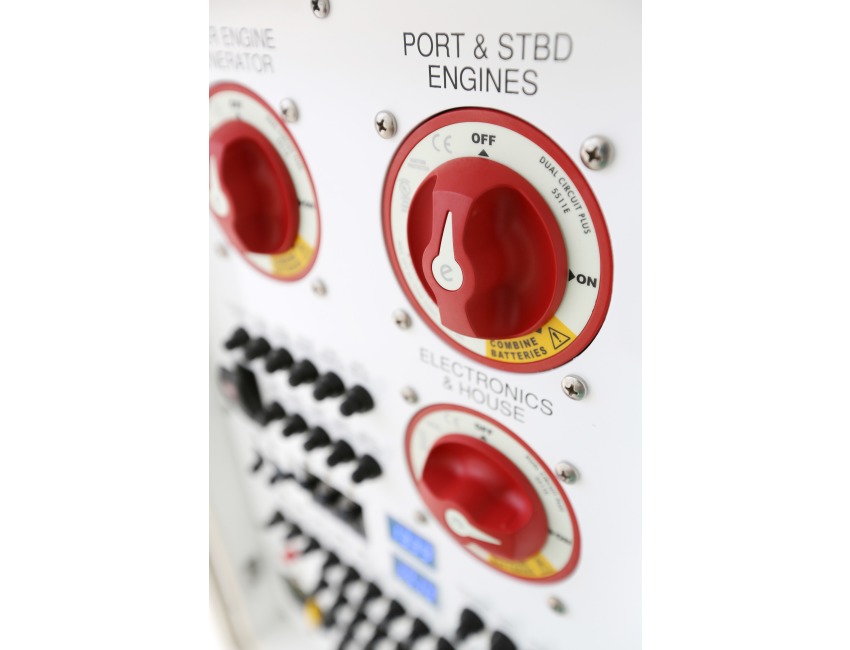

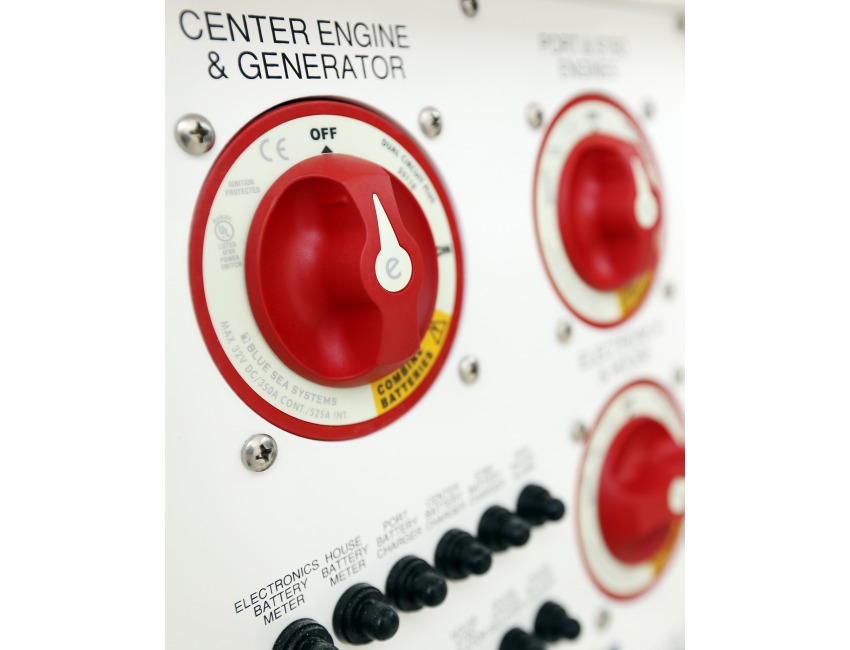

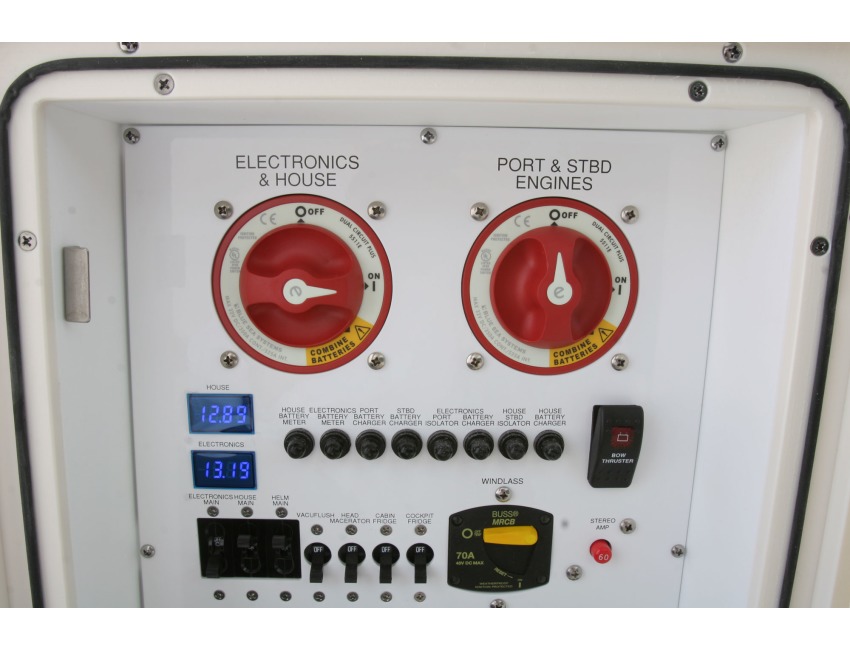

Case design allows surface or rear panel mounting options
Label with international legends
Tactile indicator conveys knob position by feel
Regulatory
CE marked, ISO 8846
UL Listed - UL 1107 electric power switches
Meets ABYC requirements
Meets UL1500 and SAE J1171 external ignition protection requirements
IP66 protects against powerful water jets
Specification List
| Type | Battery switch | Sub-Type | ON - OFF - Combine |
|---|
