Blue Sea - BatteryLink™ Automatic Charging Relay - 12V/24V DC 120A - PN. 7611

Click to enlarge

MPN 7611

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

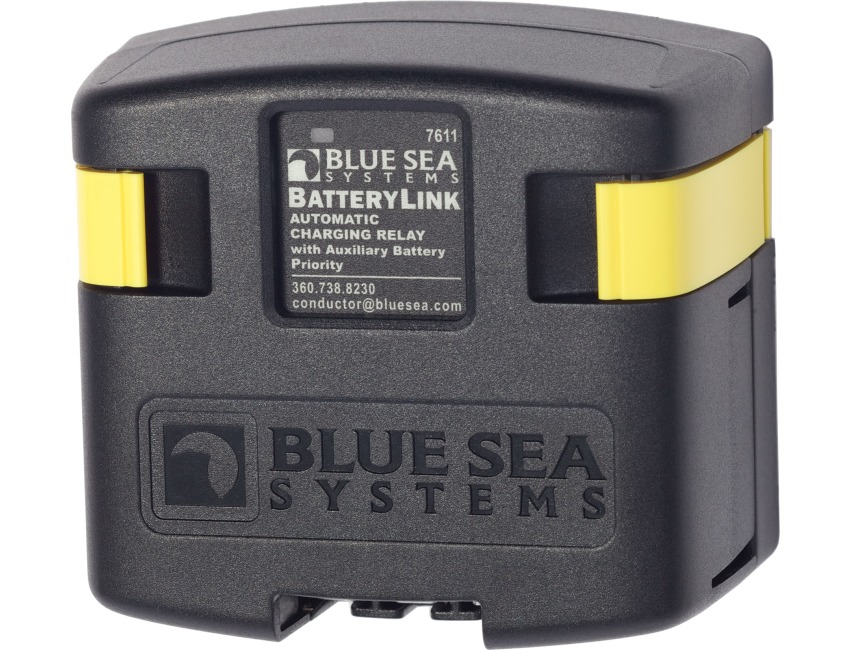

Blue Sea BatteryLink™ Automatic Charging Relay - 12V/24V DC 120A

Part No. 7611

Automatically shares single source of charge with Auxiliary Battery
Features
120 Amp continuous rating
12/24V DC auto ranging voltage input
Senses charging on two battery banks
Side and bottom knockouts for cable connections
Clip-on cover insulates terminal connections
7?8" (22 mm) stud length to accept multiple cable terminals
Integrated LED indicates ACR status
1?4" × .032" male quick connect terminals for ground and optional features
Largest battery bank cannot exceed Group 27
Optional Features
Optional Auxiliary Battery Priority connection shares the alternator charge with the Auxiliary battery longer when the engine is running to allow the use of auxiliary loads for an extended period of time
Remote LED remotely indicates ACR states - requires optional LED

Specifications:
Nominal Voltage - 12V DC
24V DC
Auxiliary Battery Priority Condition Engine running<br />Open voltage is lowered to 12.25V from 12.75V<br />Relay remains closed longer - combining batteries - to allow use of auxiliary loads for a longer period of time<br />

Condition Engine running<br />Open voltage is lowered to 12.25V from 12.75V<br />Relay remains closed longer - combining batteries - to allow use of auxiliary loads for a longer period of time<br />

- Yes
Amperage Operating Current - 175mA @ 12V (Combine)
115mA @ 24V (Combine)
15mA (Open)
Continuous Rating - 120A
Intermittent Rating - 210A (5 min)
Maximum Cable Size - 1/0 AWG
Maximum Torque - 140 in-lb (15.82 Nm)
Stud Material - Tinned Copper
Terminal Stud Size - 3/8" - 16 (M10)
Relay Contact Position -
Combine 30 sec - 13.6V @ 12V
27.2V @ 24V
Combine 2 Min - 13.0V @ 12V DC
26.0V @ 24V DC
Over Voltage Lockout - 16.0V @ 12 V
32.0V @ 24 V
Open Low - 12.75V @ 12 V
25.5V @ 24 V
Auxiliary Priority -
Open Low - 12.25V @ 12V
24.5V @ 24V
Weight - 1.25lb (0.57 kg)
