Lowrance Outboard Pilot Cable Steer Pack - 000-11749-001

Lowrance Outboard Pilot Cable Steer Pack
Part number - 000-11749-001

The Lowrance Outboard Pilot Cable Steer Pack is an autopilot system designed for boats up to 30ft with a single outboard motor.

A HDS Autopilot that includes everything you will usually need to fit an Autopilot to a cable steer outboard motor.

(Assumes existing D209 steering cable already installed, re-use of existing steering wheel and the presence of a compatible Lowrance HDS multi-function display)

Features a brand new user interface built to complement Gen2, Gen2 Touch, Gen3, Carbon and Live multi-function displays and provides easy installation.

Other features include dash-mount button for one-touch Auto/Standby activation, steer to heading, course or route and automatic turn patterns, also you can always add an additional Helm station to a boat using the HDS Power steer commands.

Key features:

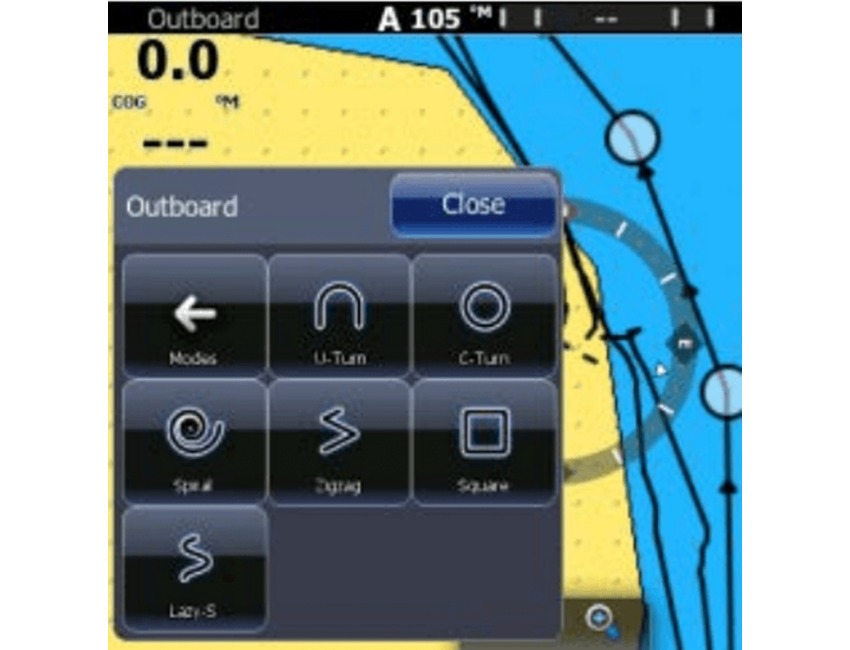

All new HDS Autopilot User interface - available for Gen2 and Gen2 Touch, Gen3, Carbon & Live

Easy to Install over existing Morse D290 Cable steer systems

Dash-mount button for one-touch Auto/Standby activation

Steer to Heading, Course or Route

Automatic Turn Patters

NAC-1 Plug & Socket connectors

Add a second Helm station to a boat using the HDS Power steer commands – simply by adding a second networked HDS Multi-function screen

Compatible with WR10 Autopilot remote.

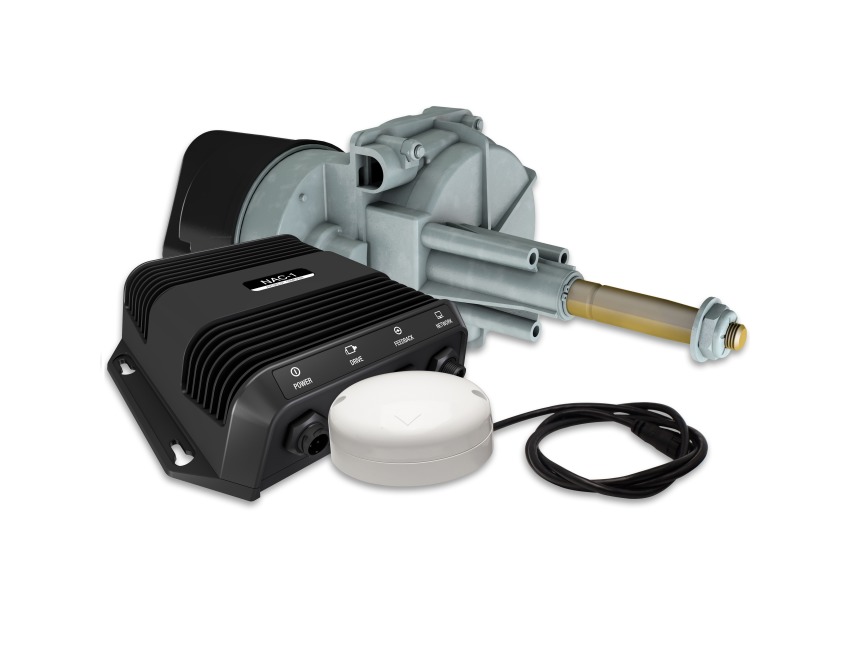

Box contents as follows::

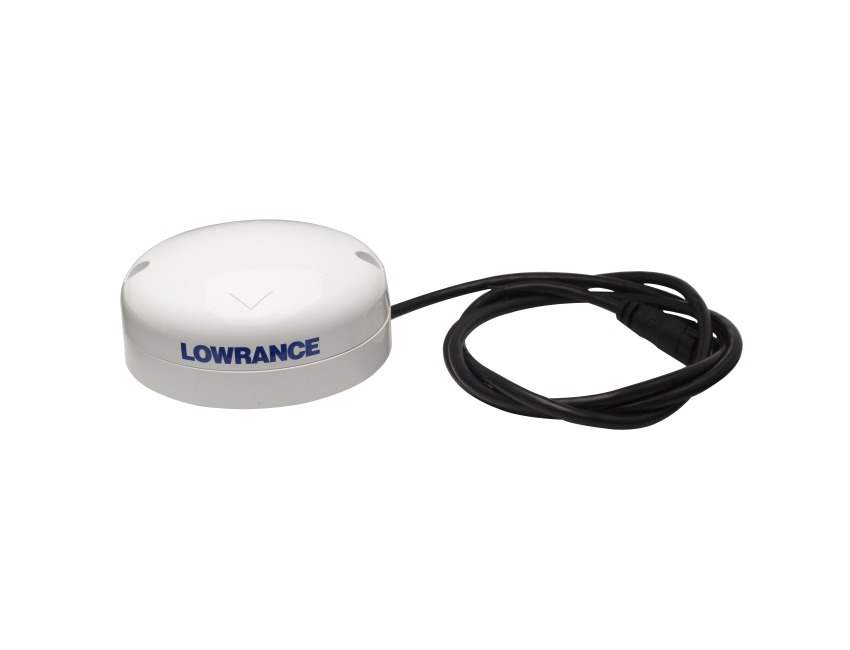

Point-1 Heading and GPS Sensor

NAC-1 Autopilot Computer

NAC-1 Plug & Socket Connectors – (No bare wire connections made at the NAC-1 unit)

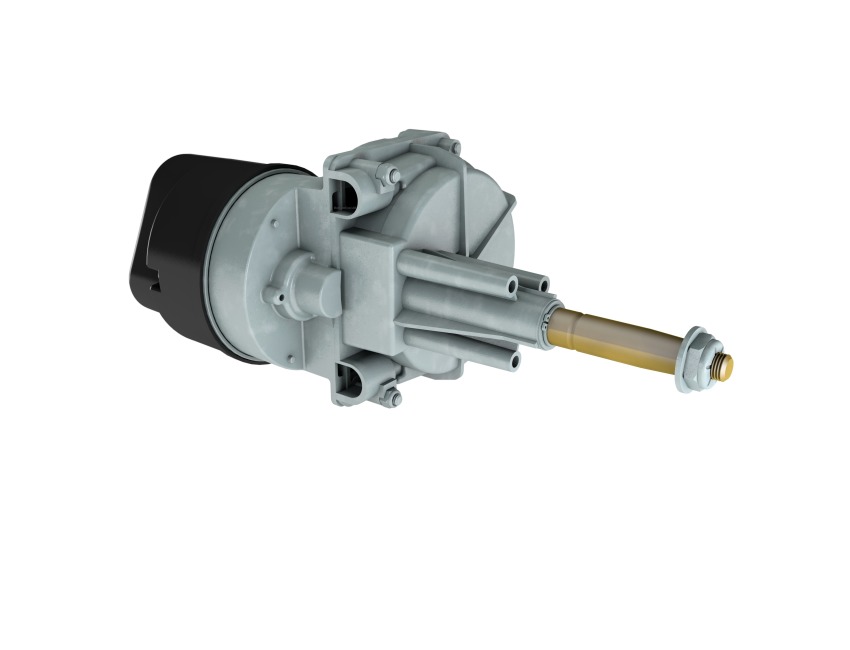

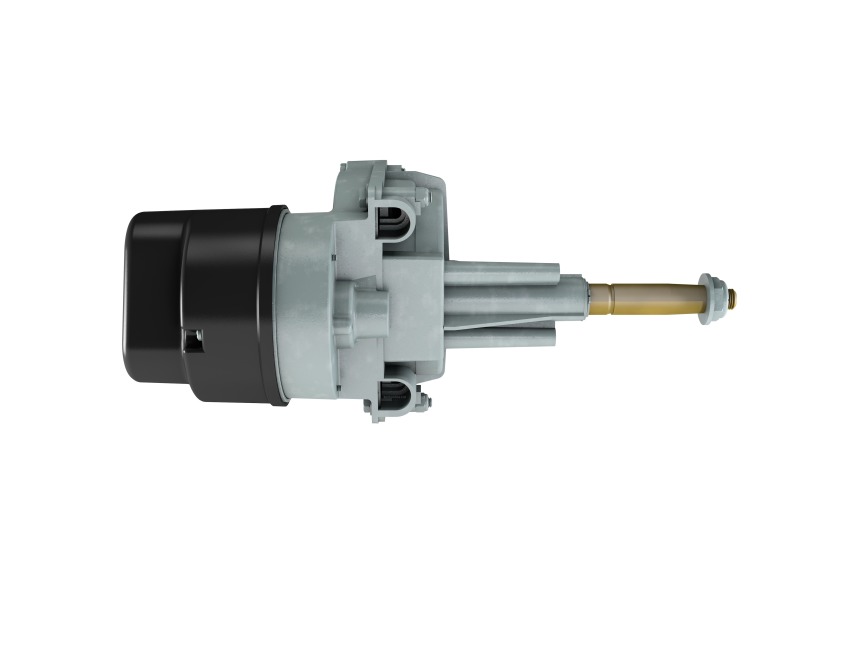

HELM-1 Cable-Steer Helm Drive Unit

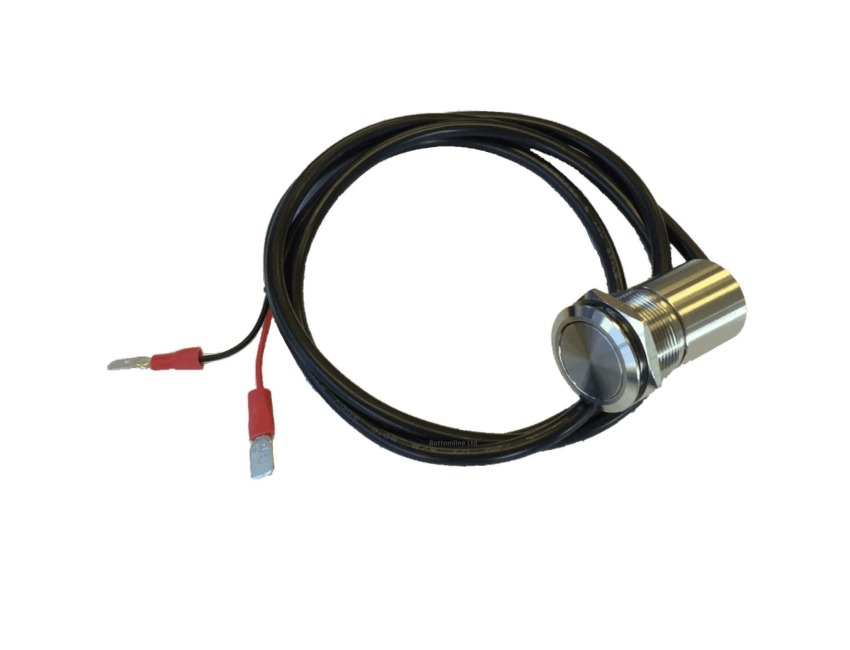

Standby-Auto Button

All NMEA2000 Network Components needed for installation

Specifications:
Waterproof Rating - IPX5

Dimensions - 7.1 in \ 180 mm x 2.2 in \ 57 mm | W x H

Supply Voltage - 12V only

Max Drive Output - 8A Continuous | 16 Amp Peak
