SIMRAD / Lowrance Precision-9 Heading / Rate of turn Compass - Overlay - MARPA

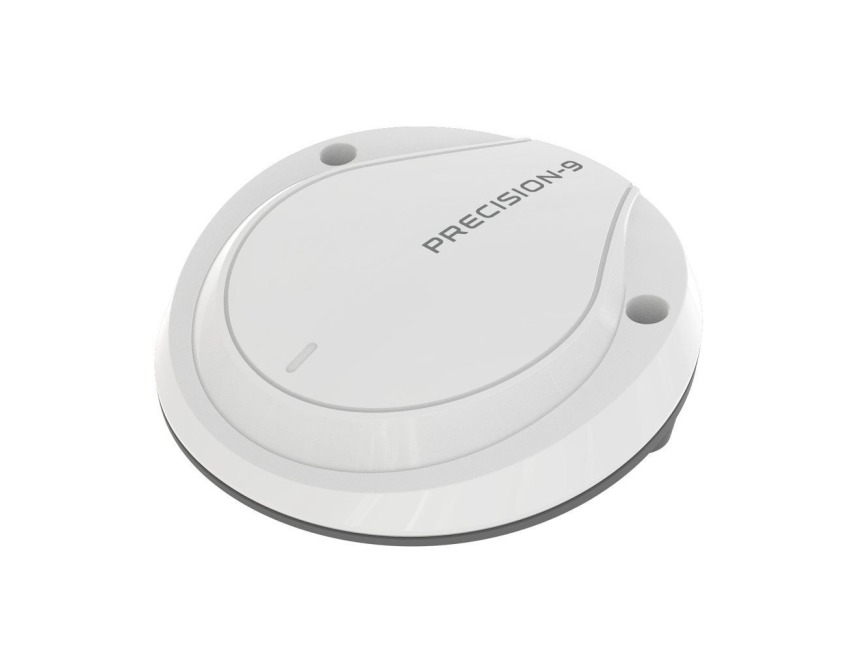

SIMRAD / B&G / Lowrance - Precision-9 Compass
The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.
Key features: Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000 Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy of 2 after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation
Specifications:
Dimensions:H: 36 mm (1.42), W & D: 119 mm (4.69) Weight:Module:|165 g (5.8 oz), Bracket:|130 g (4.6 oz) Supply and interface: 8-16 V via NMEA 2000 Power consumption: 0.4 W NMEA 2000 Load Equivalence No. (LEN):1 NMEA 2000 ports (input/output): 1 Calibration: Automatic (User Prompted) Repeatability: 1.0 (or better) Roll/Pitch range: 45 Heading accuracy: 2 after calibration
Dynamic performance:
With random excitation of 10 at max 1 Hz:|Heading error <2: with heading step input of 90 at a rate of 10/s: |Heading error 10 sec. after turn <2
Environmental protection: IPx7 Compass safe distance: 0.5 m (1.7) Temperature range operation:-25 to +65C (-13 to +149F) Temperature range Storage:-30 to +70C (-22 to +158F)
[http://i1294.photobucket.com/albums/b603/itsnevertoorough/P9_zpsmy6ez8ah.jpg]
Mounting suggestion only - bracket not supplied.
