Loncin G120F-P 3/4" Shaft 4Hp Engine - Replaces Honda GX120 - for Wacker Plate / water pump

Click to enlarge

MPN G120F-P

£186.99

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Heavy item - Please contact us before clicking to buy if you are in Northern Ireland, Republic of Ireland, Channel Islands, Isle of Wight, Scilly Isles, Scottish Highlands or Scottish Islands

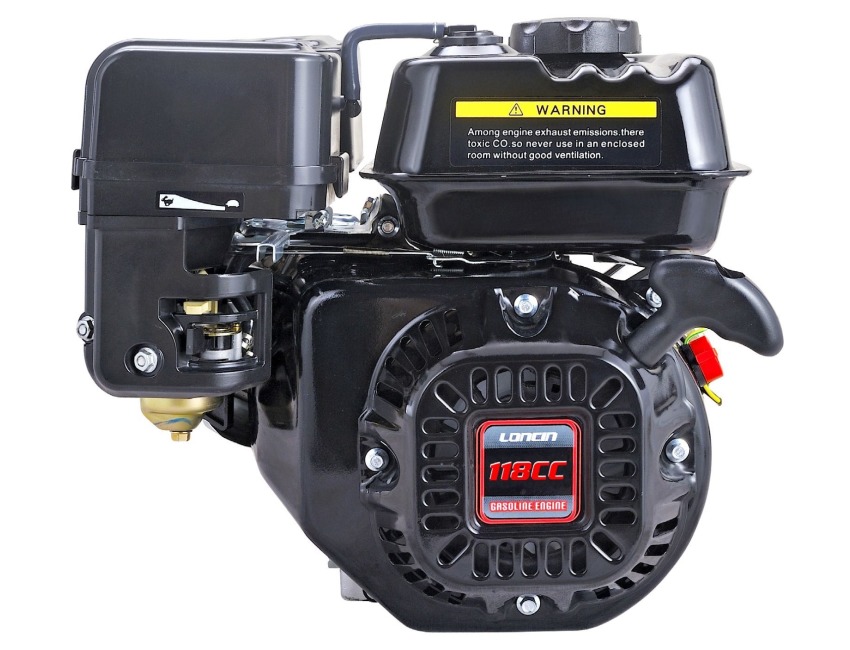

Loncin 4.0hp Stationary Engine - replaces Honda GX120

Features:
4 stroke petrol engine runs on Unleaded petrol
Easy recoil pull start system
Forged crankshaft
Low Oil Alert shuts engine down if oil level is dangerously low
Note - this engine replaces the GX120 3/4" parallel output shaft

Model: G120F-P
Type: 4 Stroke
Fuel Type: Unleaded Petrol
Starting Method: Recoil Pull Start
Piston Displacement: 118cc
Bore x Stroke: 60mm x 42mm
Compression ratio: 8.51
Gross Power:4Hp (3kW) / 3600rpm
Net Power: 3.5Hp (2.6kW) / 3600rpm
Rated speed: 3600rpm
Idle Speed: 1450rpm +- 150

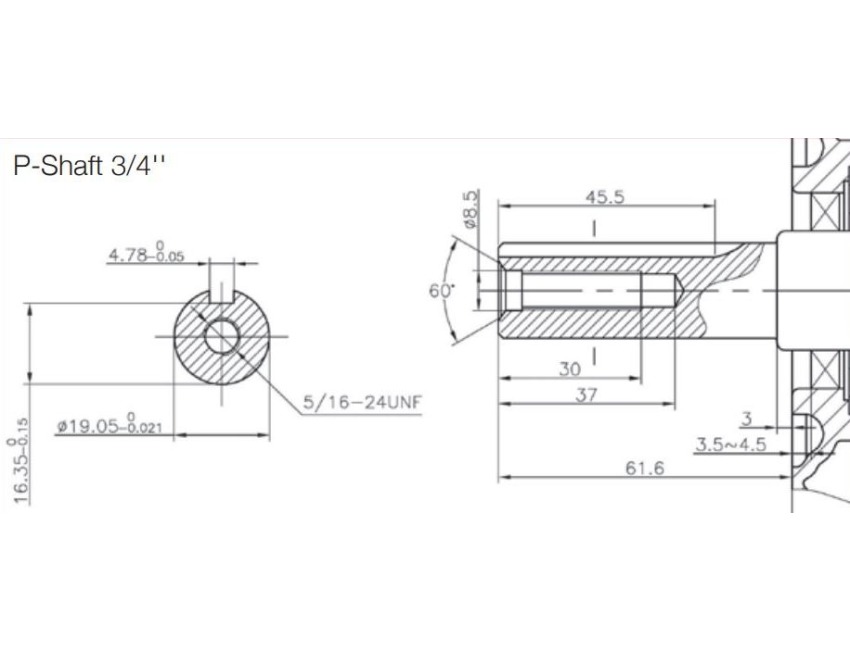

Output shaft size: 3/4" parallel with keyway
Ignition system: Transistorized, magneto
Fuel Sytem: Carburettor
Lubrication System: Splash
Speed Governor: Centrifugal mass
Air Filter: Dual element, semi-dry (i.e. oil dampened)
Oil capacity: 0.6 L0.13gal)
Fuel tank capacity: 2.5 L(0.37gal)
Noise Level @ 7m: 70dBA

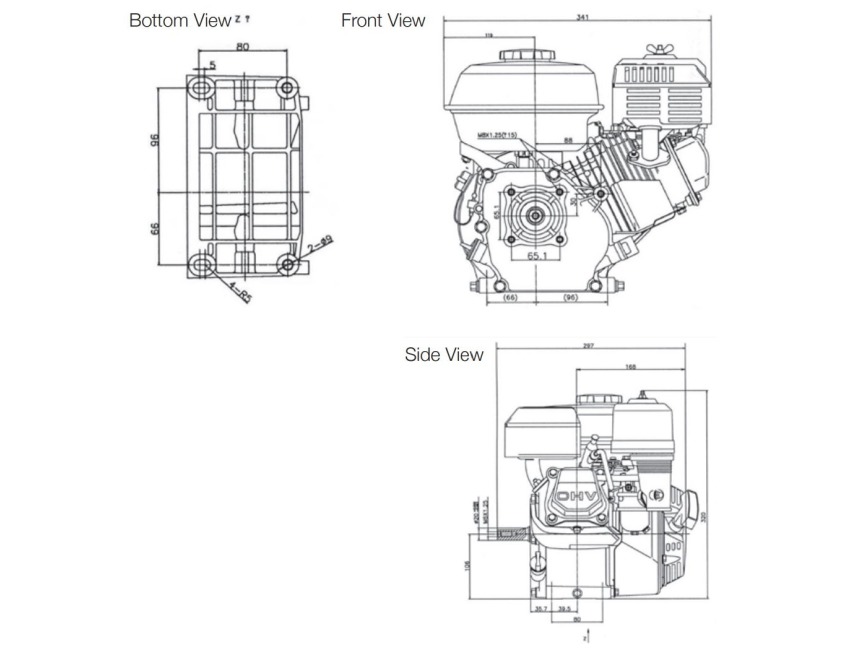

Dimensions(L x W x H): 341 × 305 × 318mm
Net Weight: 13Kg

Specification List

Type Portable engine /repower Replacement for Honda GX120 with 3/4" Output Shaft
Gross Power 4Hp (3kW) @ 3600rpm Net Power 3.5Hp (2.6kW) @ 3600rpm
Output Shaft Size 3/4" parallel, with keyway Reference OE/OEM Number GX120

Documentation
