Zipwake - Trim Tab Control System Kit Box - 450-S

Click to enlarge

MPN 450-S

£1999.00

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Zipwake Dynamic Trim Control System 450-S Kit

Zipwake, the world’s first inexpensive dynamic trim control system,
incorporates a state of the art series of durable, fast-acting interceptors,
eliminating the well-known trim problems of planing and semi-planing boats.

The system is fully automatic and significantly enhancesperformance,
fuel economy, comfort and safety when accelerating,turning or running in a seaway.

Key Features
•Dynamically eliminates
uncomfortable and dangerous
boat pitch and roll.
• Automatically minimizes wave
resistance and saves fuel.
• Built-in quality, simplicity and
easy expansion, yet affordable

Five Reasons to install Zipwake

COMFORT AND SAFETY
Dynamically eliminates uncomfortable and dangerous boat pitch and roll.

PERFORMANCE AND FUEL ECONOMY
Automatically minimizes wave resistance and saves fuel.

INTUITIVE AND PRECISE CONTROL
Innovative 3D controls provide unmatched control of running trim, heel or heading.

DURABLE AND EFFECTIVE
Patented series of durable fast-acting interceptors provide supreme lift force characteristics.

COMPLETE AND COMPETITIVE
All-inclusive mass-produced modular design provides built-in quality, simple installation and easy expansion, whilst making the system affordable.

Interceptor Specifications
•Max Boat Speed 60 knots
•Thru-Hull Cable Fitting Concealed or above waterline
•Supply Voltage 12–32 V DC
•Power Consumption 25 W max
•Waterproof Rating IP68, 5 m
•Operating Temperature 0° to +40°C (+32° to +104°F)

In The Box
A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting interceptors. There are four different Kit Boxes, one for each interceptor model.
Any base installation can be expanded with up to two extra pairs of Series S interceptors, thus allowing a total of six interceptors without any need for additional connectors or power supply

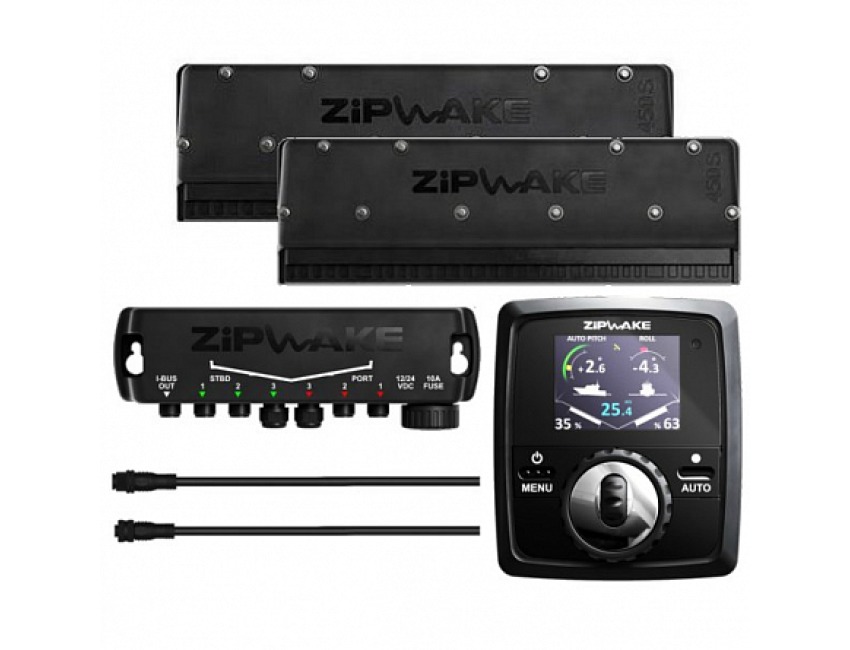

This kit contains:

•1 x Pair of Interceptors 450mm ( trim blades)
•1 x Control Panel
•1 x Distribution Unit
•Interconnection wiring looms

Specification List

Type Trim system
