YANMAR 2GM20 Major Service Kit - (Japanese raw water cooled only) - With oils

Click to enlarge

Code153374045077

MPN BL-MAJOR-002

£299.99

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

2GM20 (Japanese - Raw water cooled) Service Kit

NO INTERNATIONAL SHIPPING ON THIS ITEM
Standard Shipping is for UK Mainland only - Due to Brexit the cost of shipping oils to Northern & Southern Ireland has increased. This cannot be calculated at check-out. Please place your order as normal and we will contact you to notify the additional shipping costs.

Service kit of Genuine Yanmar parts
Service kit contains all items required for a major service
Polythene bag is included for the disposal of used parts
To service YANMAR Marine Diesel Engines:
2GM20 - Raw water cooled - Japanese (no 'E' in the serial no.)

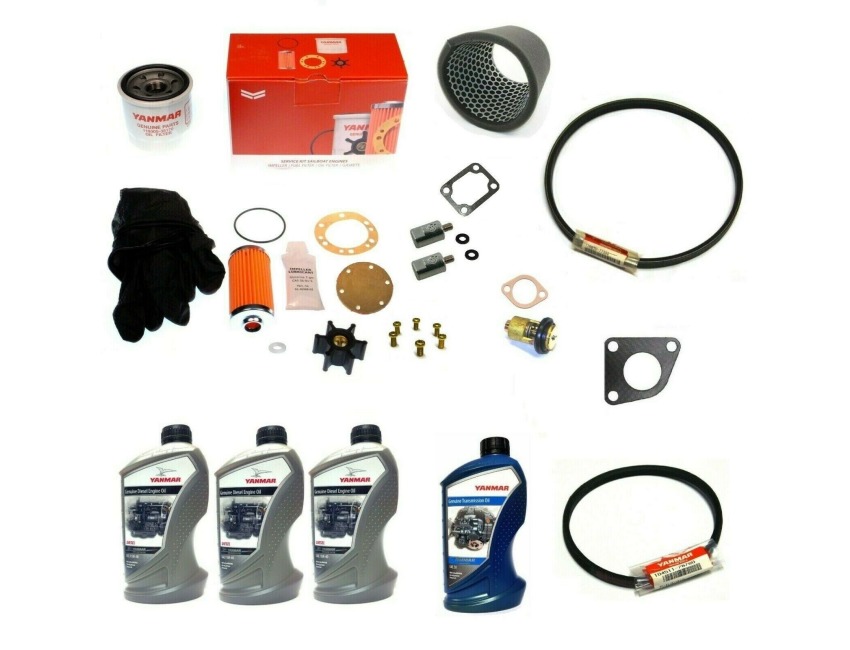

Picture is of actual kit contents:
Oil Filter: 119305-35170
Fuel Filter: 104500-55710
Fuel Filter 'O' Ring: 24341-000440
Fuel filter nylon bleed screw washer:23418-060000
Impeller: 104211-42070
Impeller Gasket: 104211-42090
Impeller cover plate:104211-42080
6x Cover plate screws:26554-040082
Water pump belt:104511-78780
Air filter:128270-12540
Thermostat:105582-49200
Thermostat gasket:104211-49160
2x Anodes:27210-200300
2x Anode packing washers:123210-09310
Anode gasket (head):121450-11681
3× 1L 15W40 Engine oil (sump capacity2L but filter requires more)
1× 1L SEA30 gear oil: SAE30-1L (gearbox capacity 0.25L)
Alternator belt:128670-77350
Exhaust Gasket:128170-13201
1x Pair of black nitrile gloves

Specification List

Country/Region of Manufacture Japan Type Yanmar Service Kit
Sub-Type 2GM20
