Yanmar 1GM10 marine diesel engine 9hp with Gearbox, panel and mounts
Click to enlarge
MPN: 1GM10
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

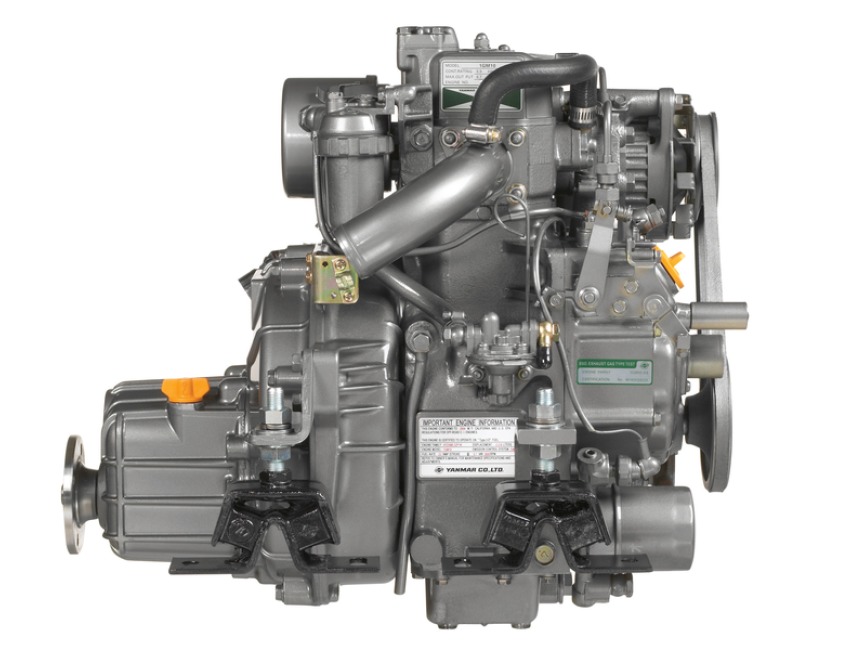

Yanmar 1GM10 marine diesel engine 9hp with KM2P-1 Gearbox, A Type Panel, loom and engine mounts (Local Sale Only)
Installation Service Available.
The 1GM10 is Famed for its reliability.
1GM10E (9HP/7kW) Lightweight single-cylinder diesel with a straight drive.
Built for optimum power to weight and rugged durability.
Runs and runs, smoothly, quietly and cleanly.
Technical Specification
Configuration 4-stroke, vertical, water cooled diesel engine
Number of cylinders 1
Bore x Stroke 75 × 72 (2.95 × 2.83)
Displacement lit (cu. in.) 0.318 (19.41)
Displacement lit (cu. in.) 0.318 (19.41)
Cont. Rating @ Crankshaft 6/3400 kW/rpm (8/3400 hp/rpm)
Max. output @ crankshaft 7/3600 kW/rpm (9/3600 hp/rpm)
Combustion system Special swirl type pre-combustion chamber
Starting system Electrical with Manual combination
Cooling system Direct seawater
Specification List
| Type | Diesel Engine Complete | Horsepower | 9 hp / 3600 rpm |
|---|---|---|---|
| Weight | 71KG (without gear) | Alternator | 12 V – 35 A |
| Cooling | Direct raw water | Exhaust | Wet |
| No of Cylinders | One |
