Yanmar - Panel Assy, B25 - 164100-30113

Click to enlarge

Codex

MPN 164100-30113

Was £842.28
Now: £683.08

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

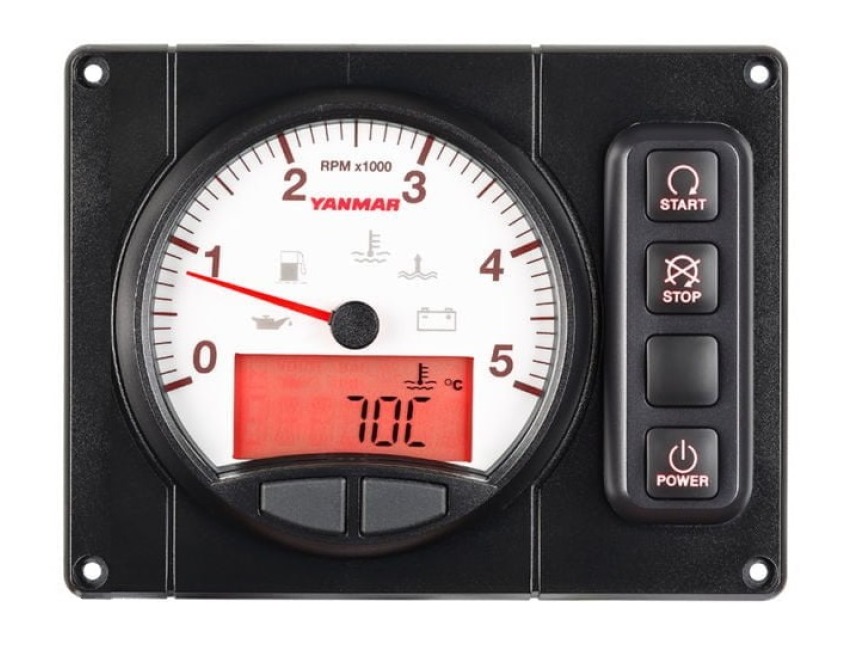

Yanmar - Panel Assy, B25


Part No: 164100-30113

Superseded from:


Fits the following:
JH-CR and 4LV electronic YANMAR engines

The B25 & C35 are YANMAR’s start/stop tachometer panels which are compatible with JH-CR and 4LV electronic YANMAR engines. These panels show basic parameters using traditional gauges and can show additional parameters, including Diagnostic Troubleshooting Codes (DTCs) in the smart tachometer window. The smart window can be programmed to show various other engine parameters as needed. These panels can also drive an optional fuel level gauge.

B Panel: Includes Tachometer only

C Panel: Includes Tachometer, water temperature gauge, oil pressure gauge

Basic parameters shown:

Engine hours
Backlight
Battery voltage
Throttle Position
Engine Load
Fuel Rate
Intake Air Pressure
Fuel temperature


Please contact us with your model and serial number if unsure

Specification List

Type Parts
