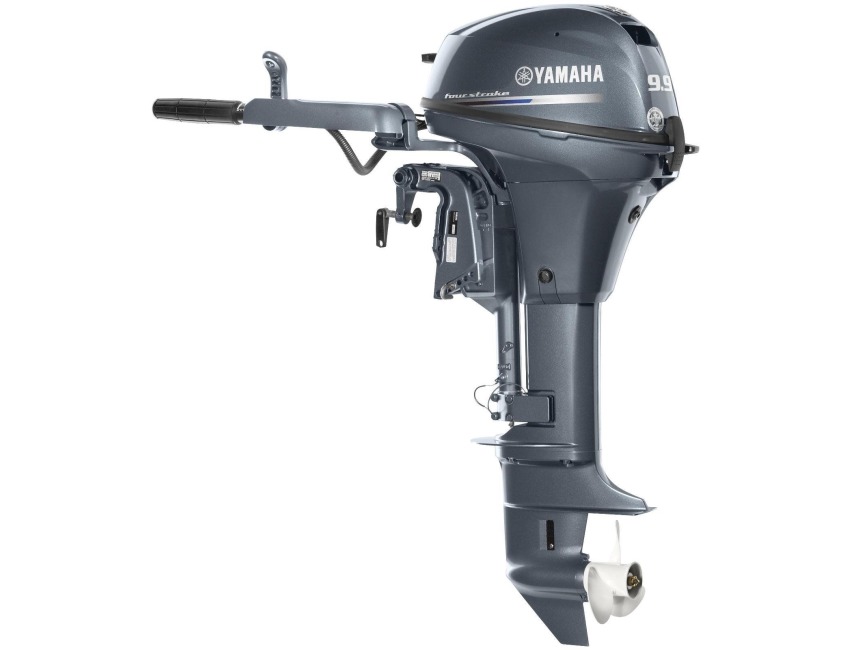

YAMAHA F9.9JMHL Tiller - 9.9hp 4-Stroke Outboard Motor - Long shaft

Yamaha F9.9JMHL 9.9HP Long Shaft Outboard

Our lightweight heavyweights - now with more power
Packing more power on the water doesn't have to mean dragging a heavy outboard onto your boat because the lightweight F8 and F9.9 are perfectly portable.
Their comfortable-to-use, integrated carrying handles help too.
Discover the joys of whisper-quiet operation and excellent fuel economy, now blended with even more of our smooth, reliable power.
Yamaha's CDI Ignition System ensures reliable, first-time start-up, so with the twist-grip throttle and F-N-R gear system, it all adds up to easy, safe handling.
These are engines with many talents, making them ideal for tender duties, for short fishing or family expeditions or if you use your boat as a reliable work partner.

• Over-rev limiter
• Lighting coil fitted as standard
• Audible warning of low oil pressure
• Ergonomic shift lever on the tiller handle
• Extra resting pad for convenient vertical storage
• Easy-fold tiller design for storage & portability
• Large comfortable-to-use carry handle
• Shallow Water Drive for cruising close inshore
• Compact and efficient engine design
• Remarkable power and impressive torque
• Fresh Water Flushing system
• Start-in-gear' protection system

Engine

Engine type: 4-stroke
Displacement: 212 cm
No. of cylinders/configuration: 2/In-line, SOHC Bore x stroke: 56.0 mm x 43.0 mm
Prop shaft output at mid range: 7.3kW / 5,500 rpm
Full throttle operating range: 5,000 - 6,000 rpm Lubrication system: Wet sump
Fuel Induction System: 1-Carb
Ignition / advance system: CDI
Starter system: Manual (MH)
Gear ratio: 2.08 (27/13)

Dimensions

Recommended boat transom height: L:558mm Weight with propeller: F9.9JMHL: 41.0 kg
Fuel tank capacity: Separate fuel tank 12 litres Oil pan capacity: 0.8 litres

Additional features

Control: Tiller handle
Trim & tilt method: Manual
Lighting Coil / Alternator: Optional 12v - 6A with rectifier/regulator
Propeller: Included
Shallow Water Drive
