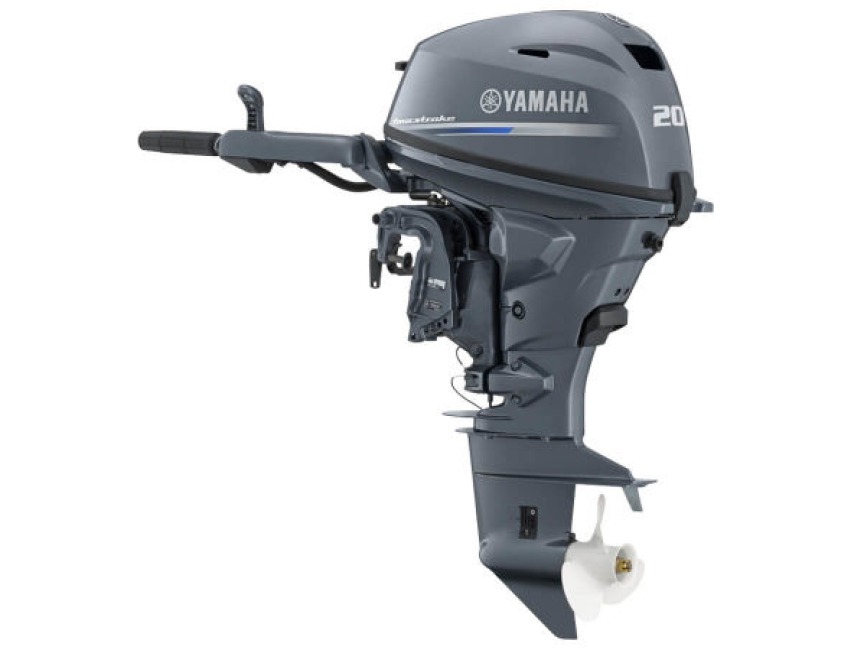

YAMAHA F20GMHS Tiller - 20hp 4-Stroke Outboard Motor - Short shaft

Yamaha F20GMHS 20HP Standard Shaft Outboard
Small-engine convenience, big-engine performance
This versatile, twin-cylinder 4-stroke combines power and responsiveness - and delivers a super-smooth ride. Outstanding fuel economy also means that you're being kinder to the environment, with exhaust emissions cut to a minimum.

Enjoy too, the many extras that only a Yamaha outboard delivers. Benefits like computer-controlled ignition, a special light-load starting system, a water-cooled fuel pump, and a large-volume silencer – all normally only found on larger engines. For commercial, professional or leisure use, it adds up to a winning formula.

Features
Single-lever steering friction (Tiller model)
New tough and solid one-piece top cowling
New battery-less EFI system for easy starting
Manual start
Compatible with Yamaha Digital Network Gauges
Multi-function tiller handle option
High-output alternator for extra starting power

Technical Specifications
Engine type: 4-stroke
Displacement: 432 cm³
No. of cylinders/configuration: 2/In-line, SOHC
Bore x stroke: 65.0 mm x 65.1 mm
Prop shaft output at mid range: 18.4 / 6,000 rpm
Full throttle operating range: 5,000 - 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: CDI
Starter system: Electric/ Manual, Manual (MH), Electric (E, EP)
Gear ratio: 2.08 (27:13)

Dimensions
Recommended boat transom height: S429 / L:551mm
Weight with propeller: F20GMHS: 57.0kg, F20GMHL: 59.0kg, F20GES: 56.0kg,F20GEL: 58.0kg, F20GWHS: 60kg, F20GWHL: 62.0kg, F20GEPS: 61.0kg, F20GEPL: 63.0kg
Fuel tank capacity: separate, 25litres
Oil pan capacity: 1.1litres
Additional Features
Control: Remote control (E, EP), Tiller handle (MH + WH)
Trim & tilt method: Power Tilt (EP), Manual Tilt (MH, E + WH)
Lighting Coil / Alternator: 12V -16A
Engine immobiliser: YCOP optional
Propeller: Included (MH, WH)
Variable Trolling RPM: (With DN Gauges or m-f tiller handle)
Digital Network Gauge (6Y8/6YC): Optional
Steering: Tiller handle, Remote Control
Remark: The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft
