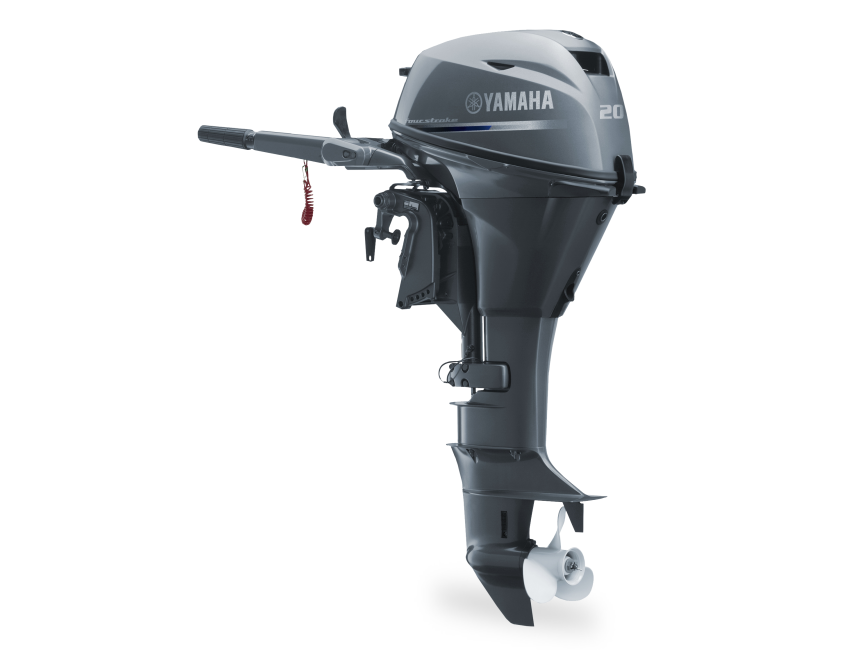

YAMAHA F20BMHL Tiller - 20hp 4-Stroke Outboard Motor - Long shaft

YAMAHA F20BMHL Tiller - 20hp 4-Stroke Outboard Motor - Long shaft

If you're looking for the winning combination of easy handling and great control, look no further than the reliable F20.

Small-engine convenience, big-engine performance
This versatile, twin-cylinder 4-stroke combines power and responsiveness - and delivers a super-smooth ride.
Outstanding fuel economy also means that you're being kinder to the environment, with exhaust emissions cut to a minimum.

Enjoy too, the many extras that only a Yamaha outboard delivers.
Benefits like computer-controlled ignition, a special light-load starting system, a water-cooled fuel pump, and a large-volume silencer – all normally only found on larger engines.
For commercial, professional or leisure use, it adds up to a winning formula.

• Optimum power-to-weight ratio
• Manual and Electric start options
• Light-load manual starter
• PrimeStart™ system for easy starting
• Power Tilt option
• Shallow Water Drive for cruising close inshore
• Fresh Water Flushing system
• One-piece, solid top cowling
• High-output alternator
• Front-mounted shift lever for easy control
• Single-lever steering friction (Tiller model)
• Convenient vertical & horizontal storage positions

Engine type 4-stroke
Displacement 362 cm³
No. of cylinders/Configuration 2/In-line, SOHC Bore x stroke 63.0 mm x 58.1 mm
Prop shaft output at mid range 14.7 / 5,500 rpm
Full Throttle Operating Range 5,000 - 6,000 rpm
Lubrication system Wet sump
Fuel Induction System 1-Carb
Ignition / advance system
CDI Starter system Electric (E, EH, EP), Manual (MH) with prime start™
Gear ratio2.08 (2713)

Weight with propeller F20BMHL: 52.0kg
Transom height L:565
Oil pan capacity 1.8litres
Fuel tank capacity separate, 25litres

Control Tiller handle (MH, EH)
Light coil / Alternator Output 12V -10A with rectifier/regulator
The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft
