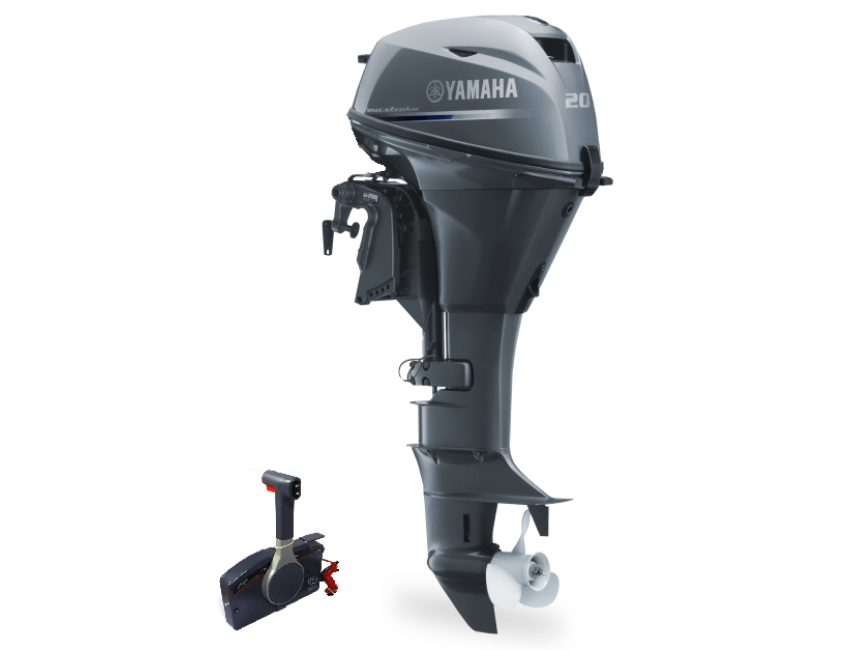

YAMAHA F20BEPL - Remote / Electric Start / Power trim & Tilt - 20hp 4-Stroke Outboard Motor - Long shaft

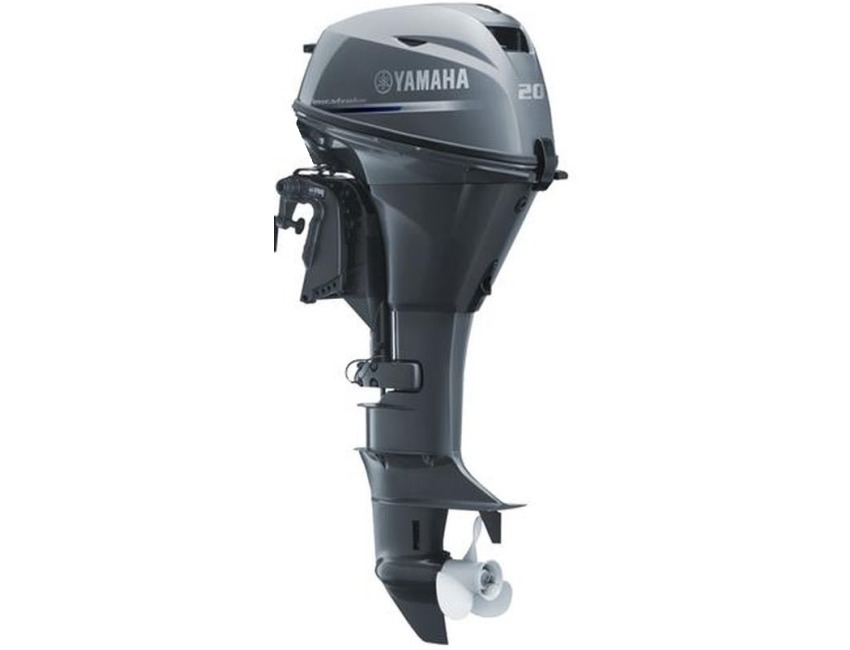

YAMAHA F20BEPL Remote - 20hp 4-Stroke Outboard Motor - Long shaft

Electric start & power tilt
Supplied with side mount control and 12L fuel tank.

If you're looking for the winning combination of easy handling and great control, look no further than the reliable F20.

Small-engine convenience, big-engine performance
This versatile, twin-cylinder 4-stroke combines power and responsiveness - and delivers a super-smooth ride.
Outstanding fuel economy also means that you're being kinder to the environment, with exhaust emissions cut to a minimum.

Enjoy too, the many extras that only a Yamaha outboard delivers.
Benefits like computer-controlled ignition, a special light-load starting system, a water-cooled fuel pump, and a large-volume silencer – all normally only found on larger engines.
For commercial, professional or leisure use, it adds up to a winning formula.

• Optimum power-to-weight ratio
• Electric start
• Light-load manual starter
• PrimeStart™ system for easy starting
• Power Tilt
• Shallow Water Drive for cruising close inshore
• Fresh Water Flushing system
• One-piece, solid top cowling
• High-output alternator
• Front-mounted shift lever for easy control
• Single-lever steering friction (Tiller model)
• Convenient vertical & horizontal storage positions

Engine type 4-stroke
Displacement 362 cm³
No. of cylinders/Configuration 2/In-line, SOHC Bore x stroke 63.0 mm x 58.1 mm
Prop shaft output at mid range 14.7 / 5,500 rpm
Full Throttle Operating Range 5,000 - 6,000 rpm
Lubrication system Wet sump
Fuel Induction System 1-Carb
Ignition / advance system
CDI Starter system Electric (E, EH, EP), Manual (MH) with prime start™
Gear ratio 2.08 (2713)

Weight with propeller F20BEPL: 60.0kg
Transom height L:565
Oil pan capacity 1.8litres
Fuel tank capacity separate, 12 litres

Control - Remote
Light coil / Alternator Output 12V -10A with rectifier/regulator
The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft
