YAMAHA - Lower Unit Gasket Kit - 115B - 6E5-W0001-F1
Click to enlarge
MPN: 6E5-W0001-F1
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Lower Unit Gasket Kit - 115B
Part Number: 6E5-W0001-F1
Superseded from: 6E5-W0001-51
Fits: 2-Stroke 115B

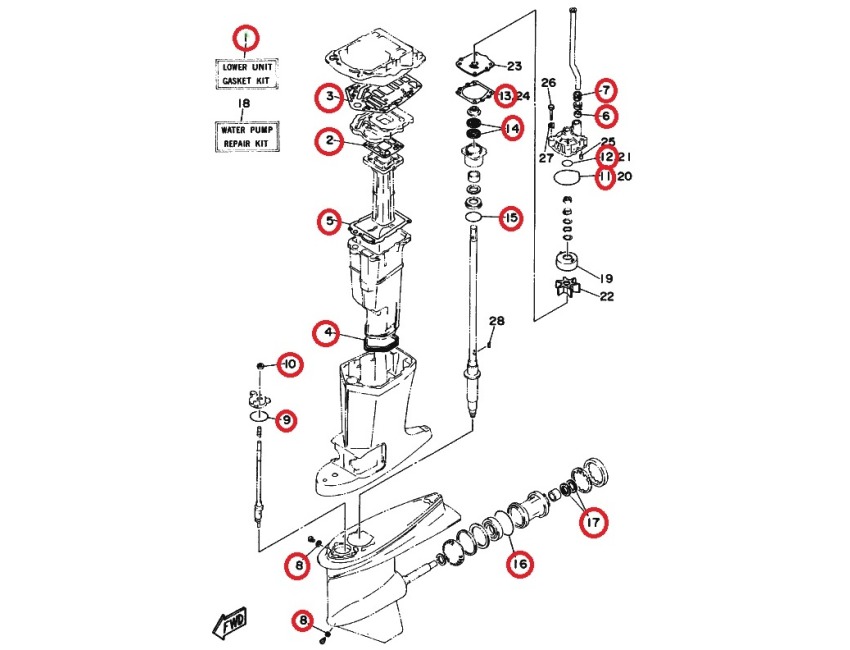

Kit contents:
| Ref | Part No. | Description | Qty |
|---|---|---|---|
| 02 | 6E5-41134-A0 | GASKET, exhaust manifold | 1 |
| 03 | 6G5-45114-A0 | GASKET, upper casing | 1 |
| 04 | 6E5-45123-00 | GASKET, muffler | 1 |
| 05 | 6E5-41135-A0 | GASKET, exhaust manifold | 1 |
| 06 | 6E5-44365-00 | DAMPER, water seal | 1 |
| 07 | 6E5-44366-00 | DAMPER, water seal | 1 |
| 08 | 90430-08020 | GASKET | 2 |
| 09 | 93210-58677 | O-RING | 1 |
| 10 | 93106-09014 | OIL SEAL | 1 |
| 11 | 93210-86M38 | O-RING | 1 |
| 12 | 93210-37M67 | O-RING | 1 |
| 13 | 6E5-44315-A0 | GASKET, water pump | 1 |
| 14 | 93101-28M16 | OIL SEAL | 2 |
| 15 | 93210-54534 | O-RING | 1 |
| 16 | 93210-86M39 | O-RING | 1 |
| 17 | 93101-30M17 | OIL SEAL | 2 |
All the items are Genuine Yamaha parts.
If in doubt please contact us with your engine model and serial number.
Specification List
| Type | Gasket Kit | Weight (Kg) | 0.325 |
|---|
