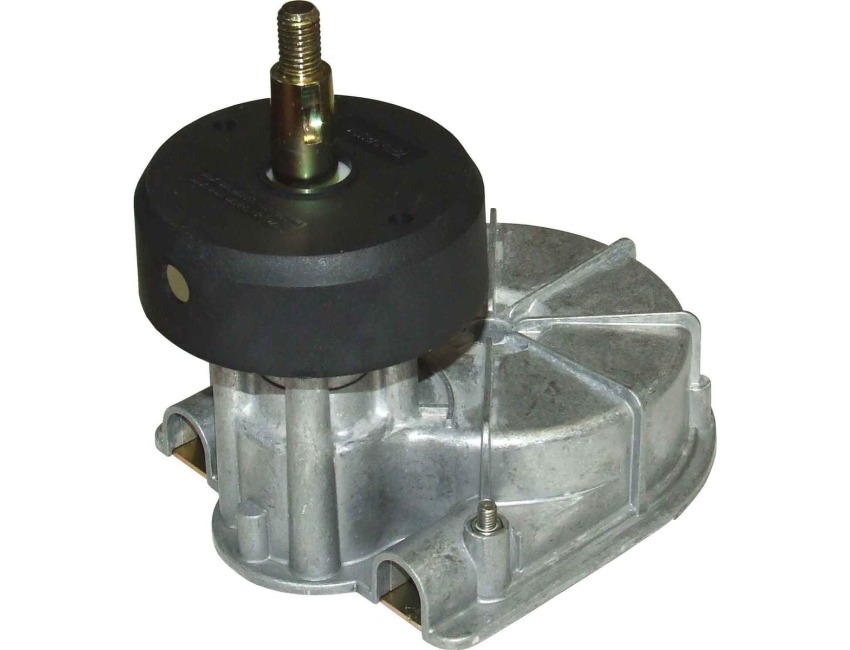

Ultraflex T85 Rotary Steering Helm with Black Bezel

Click to enlarge

Code1

MPN 38439Z

£118.58

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Ultraflex T85 Rotary Steering Helm with Black Bezel

Part Number: 38439Z

Features & Technical Specifications

All stainless steel cable output ends.

Corrosion resistant materials.

Particularly suitable where clearance is limited.

Lock-to-lock steering wheel turns: approximately 3

Stroke 228mm (9").

Maximum allowable steering wheel diameter: 406mm (16").

Minimum steering cable bend radius: 200mm (7.9")

Minimal feedback.

Compact for mounting.

T85 steering system should not be used on boats equipped with engines that

exceed the maximum horsepower rating of the boat.

Exceeds EN28848 and ABYC P17 safety standards.

Specification List

Type Rotary cable helm
