Description

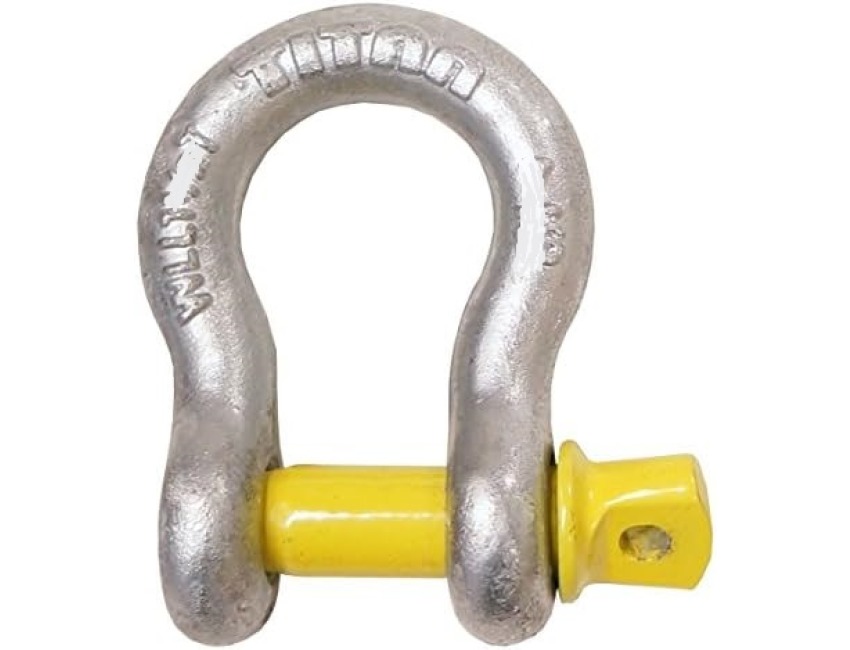

Titan Yellow Pin HD Bow shackle 5/8
Part number: 10319055
Material: Galvanized steel
Titan Tested Bow Shackle Galvanised
Quality heavy duty tested bow shackle. Suitable for a wide range of applications.
Features hot dipped galvanising for the body and pin, creating superior corrosion resistance and longevity, plus large tie off hole for pin security making them ideal for use in harsh marine environments.
Manufactured to meet or exceed current American standard RR-C-271 Type IV Grade A.
These specifications ensure that each shackle performs to the load rated and proof tested weights as stated with a safety factor of 6 to 1.
Conveniently stamped with working load limit and bail size.
Bail Size(mm): 16 Pin Dia.(mm): 19 Working Load(kg): 3250 Breaking Load(kg): 19500 d1(mm): 11.2 e Thread(mm): 3/4" - 10UNC w(mm): 26.9 w1(mm): 42.9 l(mm): 60.5
Specification List
| Type | Bow shackle | Country of Origin | CN |
|---|---|---|---|
| Weight | - | Breaking Load | - |
| Colour | - | Size | - |
| Material | Galvanized steel | Manufacturer | Titan |
| Sub-Type | - | Tariff Code | 73269098 |
