Talamex - Digital Voltmeter 2.5-30V DC - 14.504.076
Click to enlarge
Code1
MPN 14.504.076
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

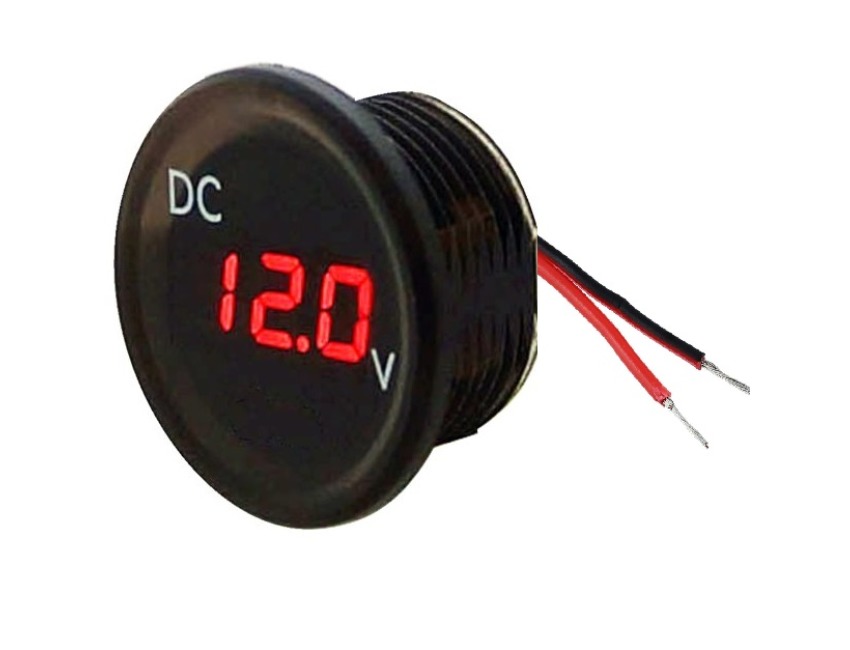

Compact digital voltmeter which displays the DC voltage on board.
Pre-wired 18cm tinned wire
The casing is completely sealed making it IP67 water resistance and suitable for outdoor mounting.
Voltmeter comes with a flush mount frame.
This voltmeter can also be used in the double flush mount frame models.
The decimal point is variable making it 1 digit jumps at voltages lower than 10V for exact indication.
Protected against polarity reversal.
• Voltage 2,5-30V DC
• Consumption < 30mA
• Refresh speed 5 per second
• Voltage resolution 0,01V (input < 10V) / 10,0V (input > 10V)
• Diameter Ø 36,60mm (without frame)
• Depth required behind panel 16mm
• Frame dimensions 60mm x 42mm
Specification List
| Type | Volt meter | Tariff Code | 90283011 |
|---|---|---|---|
| Country of Origin | TW | Weight | - |
| Breaking Load | - | Colour | - |
| Size | - | Material | - |
| Manufacturer | Talamex | Sub-Type | - |
