SIMRAD TP-32 Tillerpilot - TP32 - Autopilot - Tiller pilot - Self steering

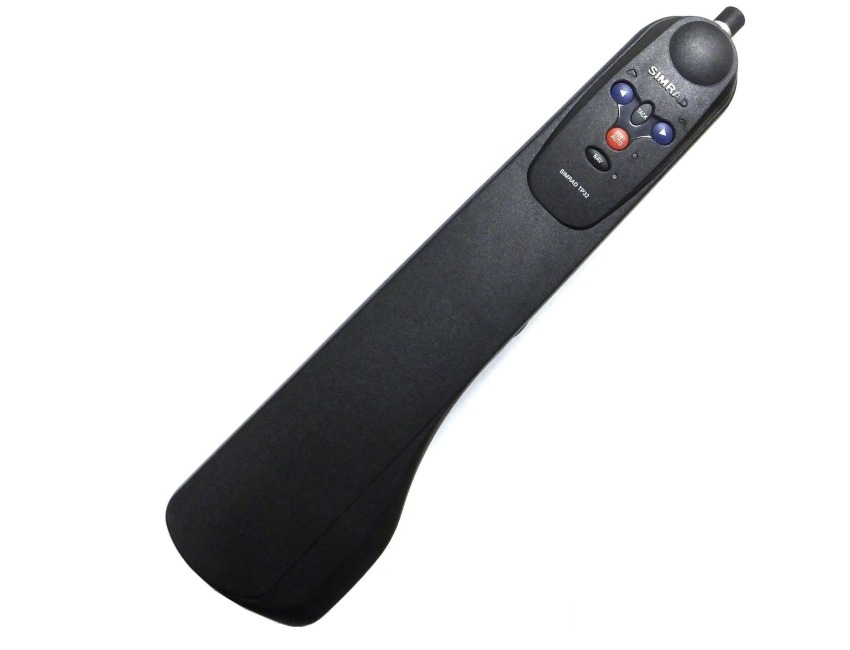

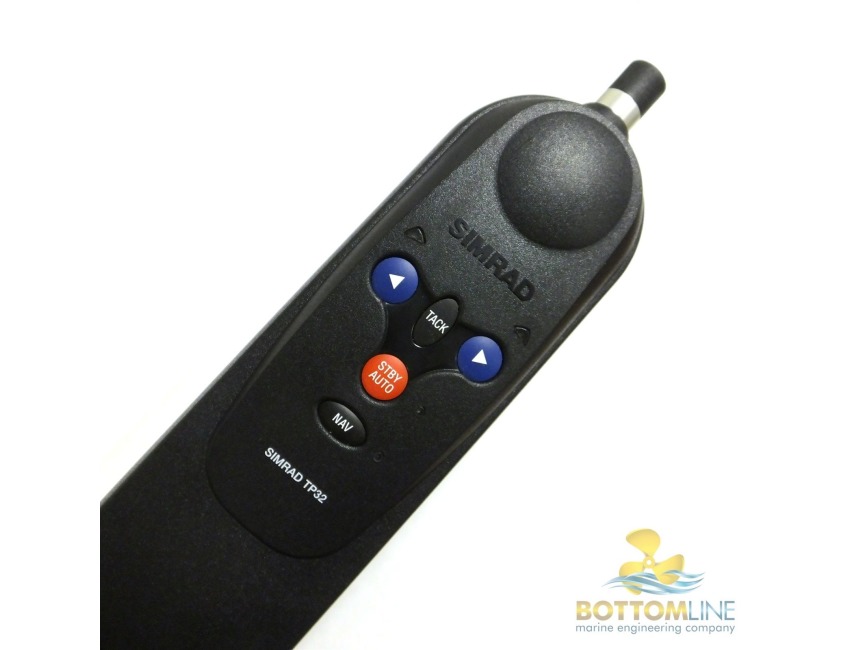

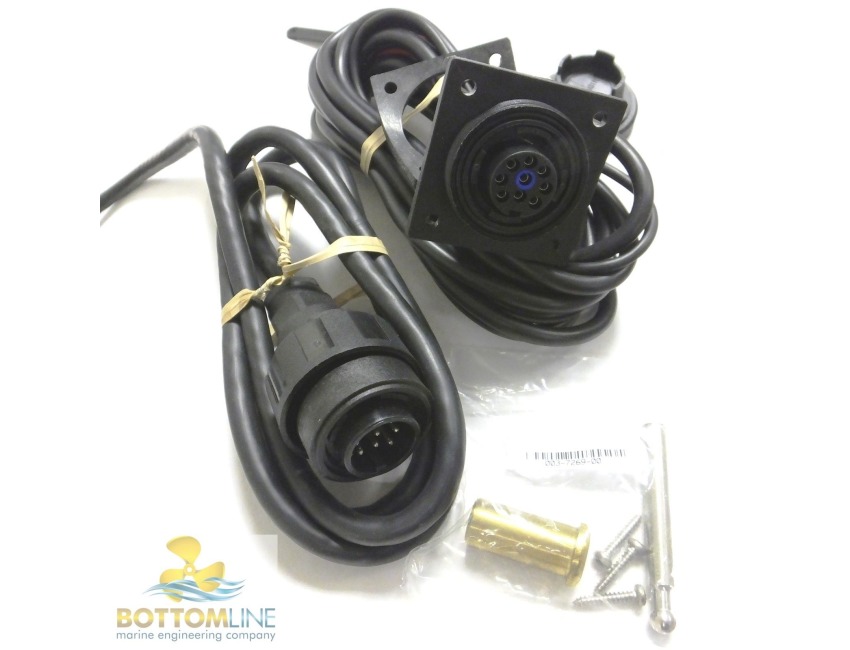

TP32 Tillerpilot (With wired deck power socket and socket cover)

TP32 is a reliable and robust autopilot, which has been optimised to draw as little power as possible and operate extremely quietly, making it ideal for sailboats up to 37ft.

It can work as a 'stand alone' unit or be controlled by a compatible display such as Simrad IS40, Go7 or B&G Vulcan.

Key Features

Easy To Use: A simple selection of controls enable straightforward selection of the adjustments you require.

Precision Steering: Outstanding performance through a wide range of scenarios, even extreme weather, ensures the Pilot is positive and effective in typical coastal sailing conditions.

Battery Optimisation: Low power draw ensures your battery will last longer, even if you use the autopilot for prolonged periods.

Silent Sailing: The TP range of autopilots have been designed with minimal noise in mind.

They're extremely quiet, so you can enjoy the peaceful sensation of being out on the water.

Waterproof Sealing: Protection from the elements.

Simnet / NMEA2000 Controllable

Technical/Environmental

Operating Temperature -10° to +55°C
Operating Temperature Stored -10° to +55°C
Product Width 105 mm / 4.1 in
Product Depth 60 mm / 2.4 in
Product Height 610 mm / 24 in

Power

Power Supply (Supply Voltage) 12Vdc
Power Consumption Auto 0.5A
Power Consumption Standby 0.06A

Other

Remote Control Option - Yes
Adjustable Gain - Yes
Alarm Audible And Visible - Yes
Automatic Tracking - Yes
Auto Trim - Yes
Gain 1-9
Night Illumination - Yes
Non Volatile Memory - Yes
Storm Proof - Yes
Auto Seastate - Yes

Autopilot/Auto-Steering

Intelligent Steering Action - Yes
Max Boat Length [m] 12
Mounting Selectable Port Or Starboard - Yes
Peak Thrust 85kg
Steer To GPS - Yes
Steer To Wind - Yes
Drive System Recirculating
Fluxgate Compass - Yes
Max Boat Displacement [tons] 6.3

Networking Connectors

NMEA 0183 Input - Yes
NMEA2000 / SimNet Control - Yes
