SIMRAD TP-10 Tillerpilot - TP10 - Autopilot - Tiller pilot - Self steering

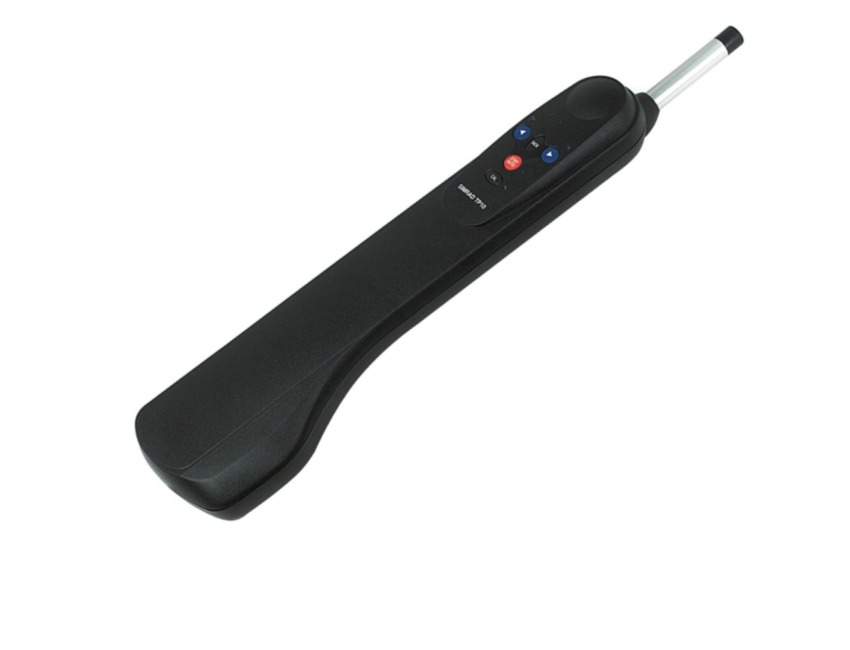

TP10 Tillerpilot - For Yachts up to 32 foot

(No interface option or electrical plug/socket on this model)

Simple, straightforward controls and a precise steering system - normally only found on higher-end models - combines in a quiet package with extremely low power draw to allow sailors a safe passage in coastal waters.

This is a simple 'stand alone' unit, it can not be controlled from an external unit. See TP22 or TP32 for this functionality.

Key Features

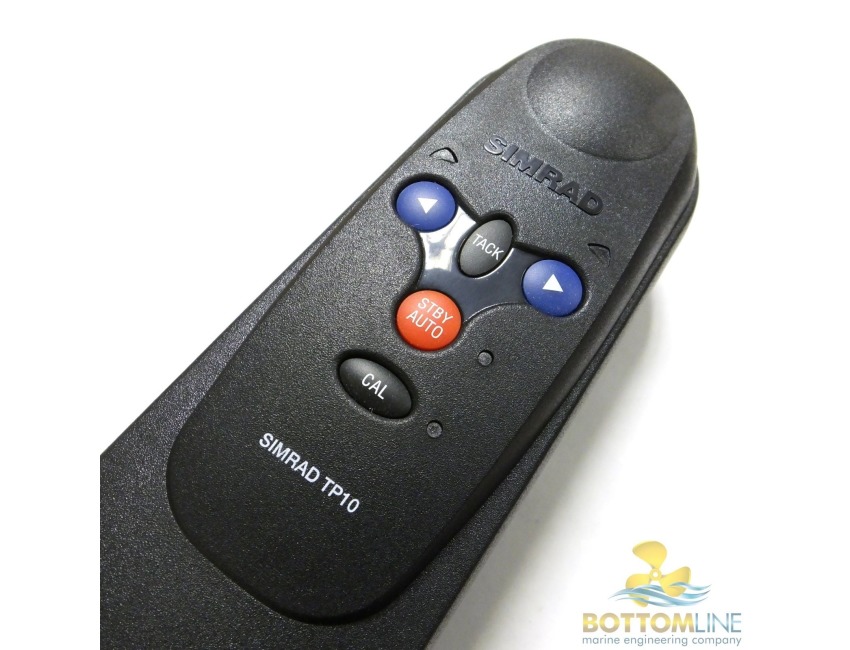

Easy To Use: A simple selection of controls enable straightforward selection of the adjustments you require.

Precision Steering: Outstanding performance through a wide range of scenarios, even extreme weather, ensures the Pilot is positive and effective in typical coastal sailing conditions.

Battery Optimisation: Low power draw ensures your battery will last longer, even if you use the autopilot for prolonged periods.

Silent Sailing: The TP range of autopilots have been designed with minimal noise in mind.

They're extremely quiet, so you can enjoy the peaceful sensation of being out on the water.

Waterproof Sealing: Protection from the elements.

Technical/Environmental

Operating Temperature -10° to +55°C
Operating Temperature Stored -10° to +55°C
Product Width 105 mm / 4.1 in
Product Depth 60 mm / 2.4 in
Product Height 610 mm / 24 in

Power

Power Supply (Supply Voltage) 12Vdc (10.8 - 16Vdc)
Power Consumption Auto 7 A Max
Power Consumption Standby 0.06A

Other

Adjustable Gain - YES
Alarm Audible And Visible - YES
Automatic Tracking - YES
Auto Trim - YES
Gain 1-9
Night Illumination - YES
Non Volatile Memory - YES
Storm Proof - YES
Auto Seastate - YES
Autopilot/Auto-Steering

Intelligent Steering Action - YES
Max Boat Length [m] 10
Mounting Selectable Port Or Starboard - YES
Peak Thrust 65kg
Drive System Screw thread
Internal Fluxgate Compass - YES
Max Boat Displacement [tons] 3.7

Networking Connectors

NMEA 0183 Input - No
NMEA2000 / SimNet Control - No
