SIMRAD IS42 Colour Instrument Display - Multifunction - 4" - N2K - NMEA2000
Click to enlarge
Code155248107969
MPN 000-13285-001
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

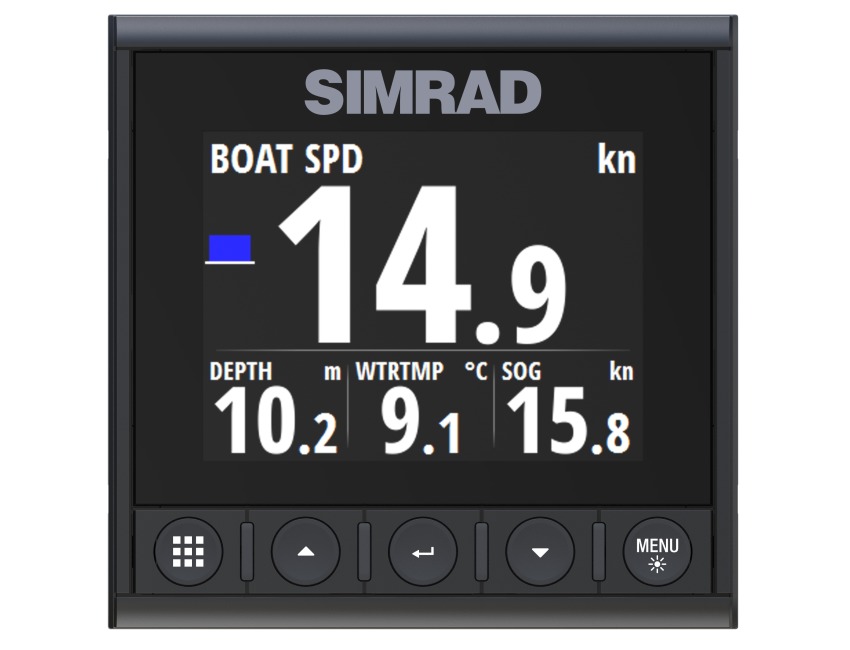

SIMRAD IS42 Colour Instrument Display
Multi-purpose instrument display with 4.1-inch colour screen,
intuitive operation and NMEA 2000 connectivity.
The IS42 is a smart multi-purpose instrument featuring a full colour display and modern glass helm styling.
View wind, speed, depth, engine data, autopilot status, AIS data and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system.
The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels
Optically bonded 4.1-inch colour display
Ultra wide 170-degree viewing angle
Multi-purpose digital instrument
Display wind, speed, depth, engine data, autopilot status and more
Advanced AIS functionality including the ability to initiate radio calls to AIS-equipped vessels (additional hardware required)
Intuitive operation with waterproof silicon keys
Easy installation with front-mount option and just one cable
Add an OP12 keypad for full Simrad autopilot control
Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
Low-profile glass helm design
Low power consumption
Certified NMEA 2000® connectivity
Specifications
Dimensions: 118 × 115 × 28mm (4.6 × 4.5 × 1.1”)
Weight: 0.32 kg (0.7 lbs)
Power Consumption: 1.8 Watts (MAX)
Network Load: 3 LEN
Colour: Black
Display Size: 4.1" (diagonal). 4:3 Aspect ratio
Display Type: Transmissive TFT-LCD, bonded. White LED backlight
Dsiplay Resolution: 320 × 240 pixels
Illumination: White for day mode. Red, green, blue or white for night mode
Environmental Protection, Waterproof: IPx7
Environmental Protection, Humidity: up to 95% RH
Compass Safe Distance: 300mm (1.0”)
Temperature Operating: -15 to +55ºC (5ºF to +131ºF)
Temperature Storage: -30 to +70 ºC (-22 to +158 ºF)
In the Box
IS42 instrument
Suncover
Installation kit
N2K Tee Piece
2ft N2K cable
Documentation
Specification List
| Type | Network - NMEA | Tariff code | 90148000 |
|---|---|---|---|
| Sub-Type | NMEA 2K display | Country/Region of Manufacture | Mexico |
