Simrad Halo 20+ Pulse Compression Radar - For GO / NSS EVO3 - 000-14536-001

Simrad Halo 20+ Pulse Compression Radar

Unrivaled Short-to-Mid-Range Performance
Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection, but provides precise target definition with minimal clutter.

Better Situational Awareness, Collision Avoidance
HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets, or 20 in dual range. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.

Ready When You Are
HALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you need it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.

Easy to Use

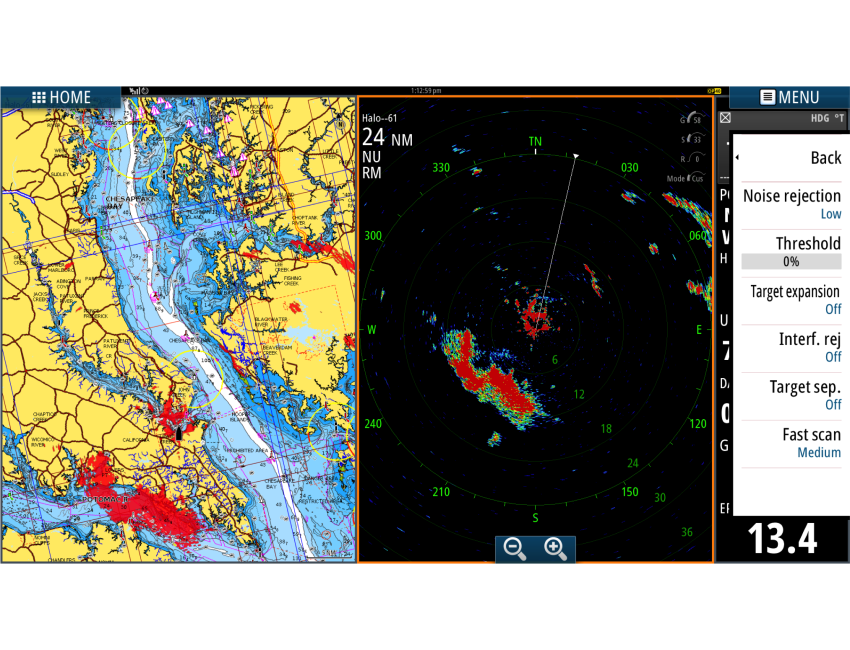

Harbour, Offshore, Weather and custom modes tune HALO20 Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.

Features:

10W Pulse Compression

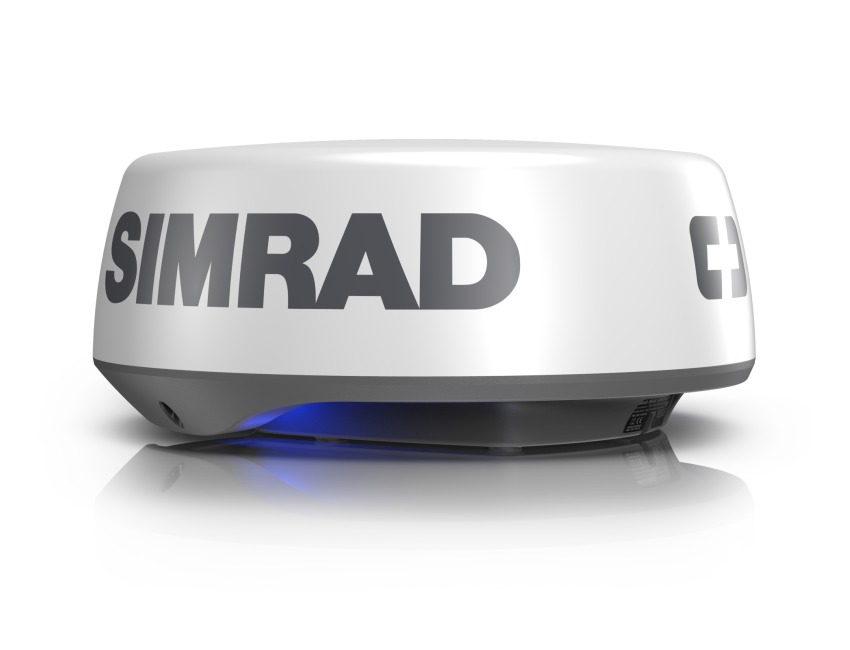

24 nm range from a compact 20-inch dome

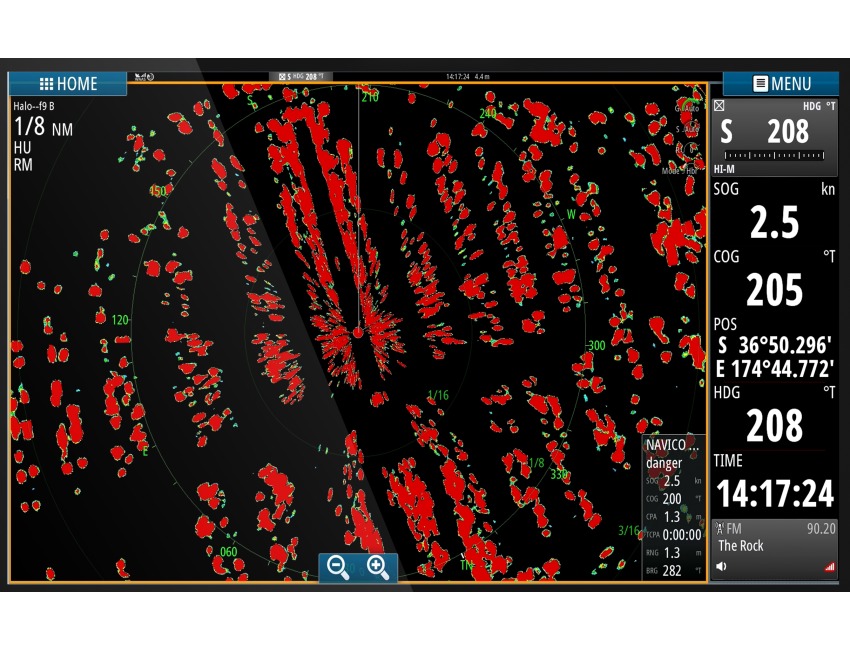

Unrivalled short range
Radiation safe
Easy operation with harbour, offshore and weather mode

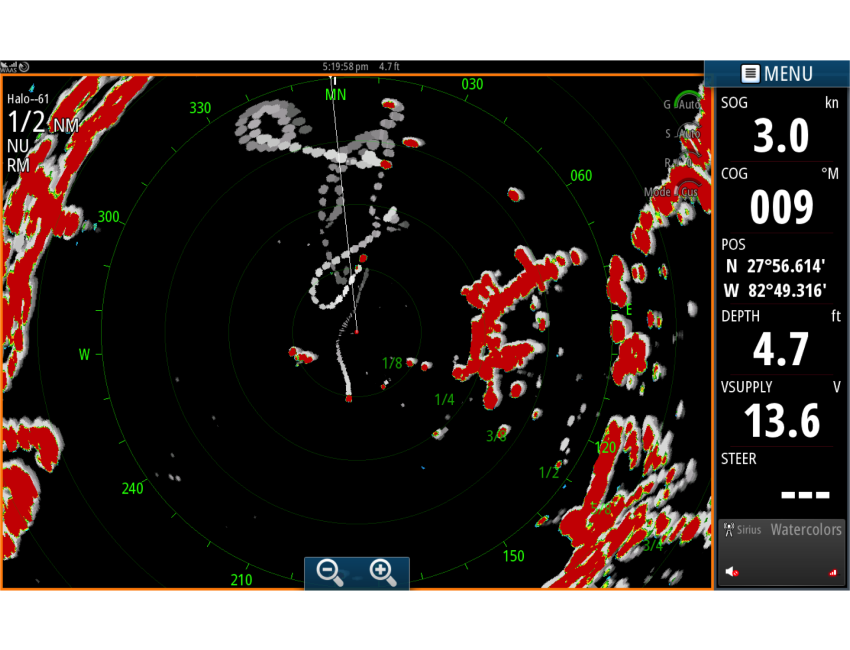

MARPA target tracking
InstantOn™
Low Power Consumption
Guard Zones

Approvals
Compliance:
FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety

Electrical
Power Consumption, max. 20W
Power Consumption, typical 18W
Recommended Fuse Rating 5A
Supply Voltage 10.5 - 31.2 VDC (12/24V systems)
Humidity 95% RH at 35°C (95°F)

Environment
Operating Temperature Range -25° to + 55°C (-13° to +130°F)
Waterproof rating IPX6

Physical

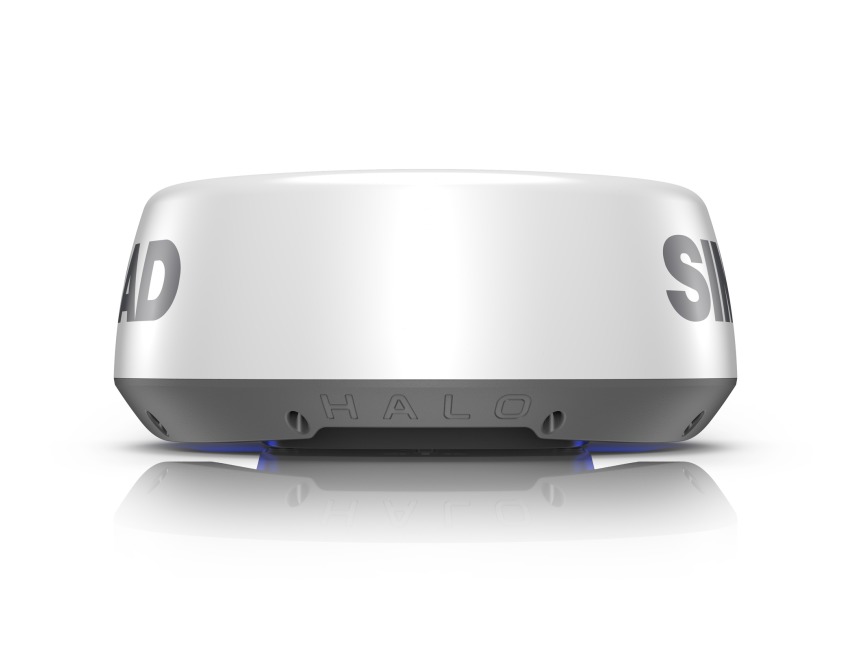

Dimensions (W x H x D) 510mm dia x 223 mm H. (20" dia x 8.8" H)
Weight 5.9 kg (13 lbs) without cable Radar
Cable length 10m
Beam width 4.9° H x 25° V
Max Range, scale 24 NM
Max Operating Wind Speed 100 knots (51 m/s)
Min Range, scale 50 m / 200 ft / 50 yd

Radar Modes
Harbour, Offshore, Weather, North Up, Course Up, Relative motion, True Motion
Radar Technology Pulse Compression
Rotation speed 24 RPM
