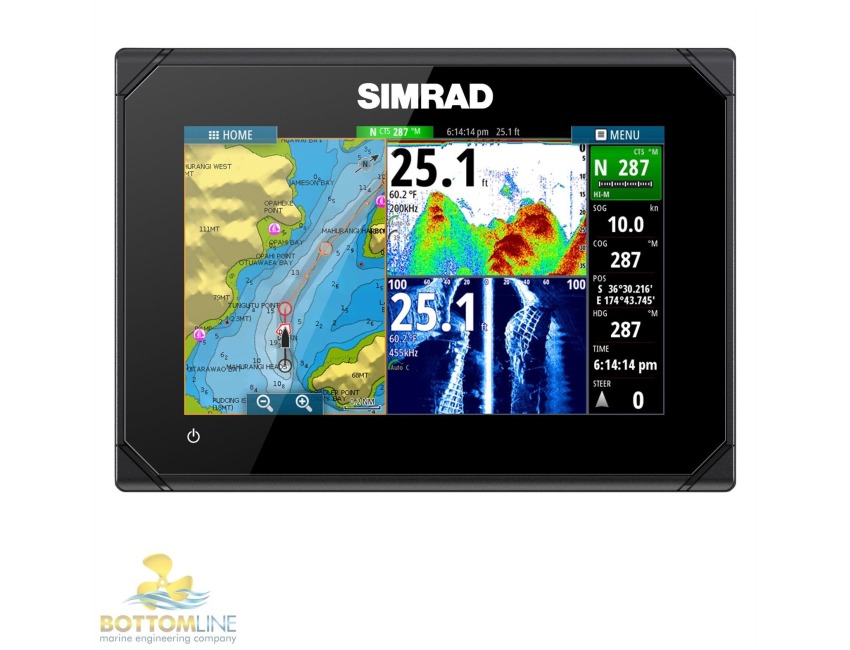

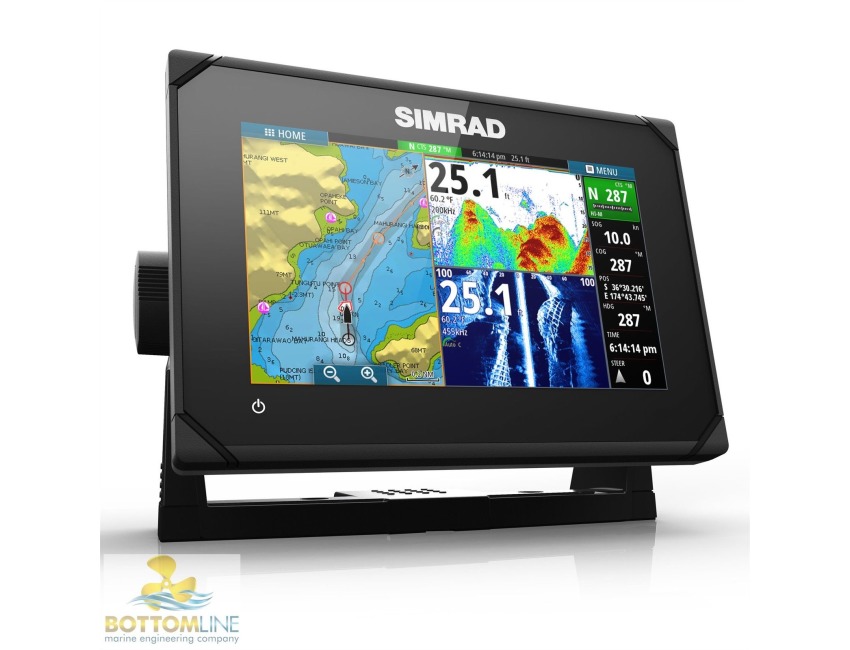

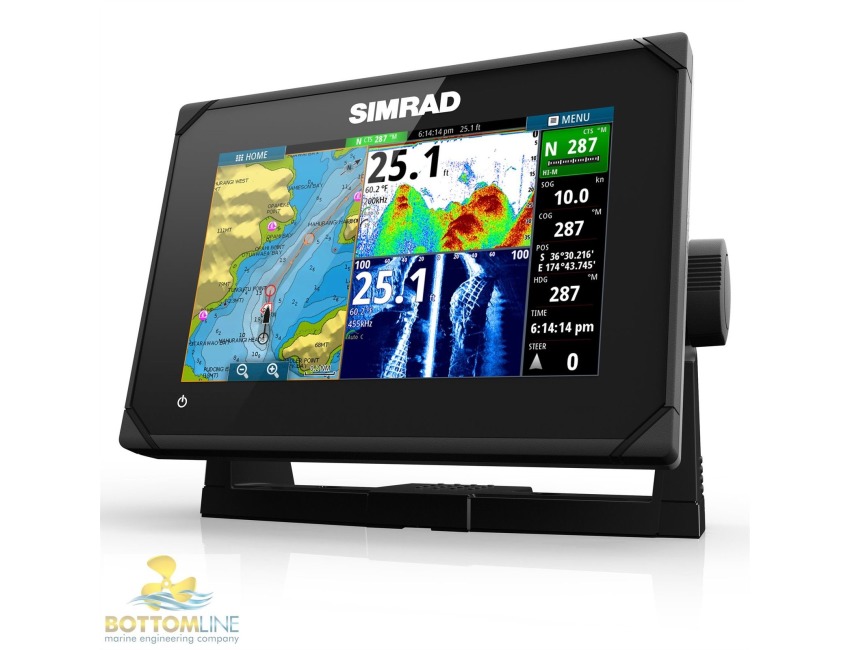

SIMRAD GO9 XSE - Multifunction Radar Chartplotter - No Transducer

Click to enlarge

MPN 000-14444-001

£1237.49

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

GO9 XSE Totalscan
Chartplotter /Chirp Sonar / Downscan / Sidescan
** No Transducer supplied **
also built in WiFi and NMEA2000
(No Cartography - No Radar dome)
SimradGO9 XSE with Built-in CHIRP Echosounder and Downscan and Sidescan Sonar
The Simrad GO9 XSE chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar and Halo Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, GoFree Wi-Fi, and industry standard NMEA 2000 connectivity. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.

9" Easy to Use Multi-Touch Display

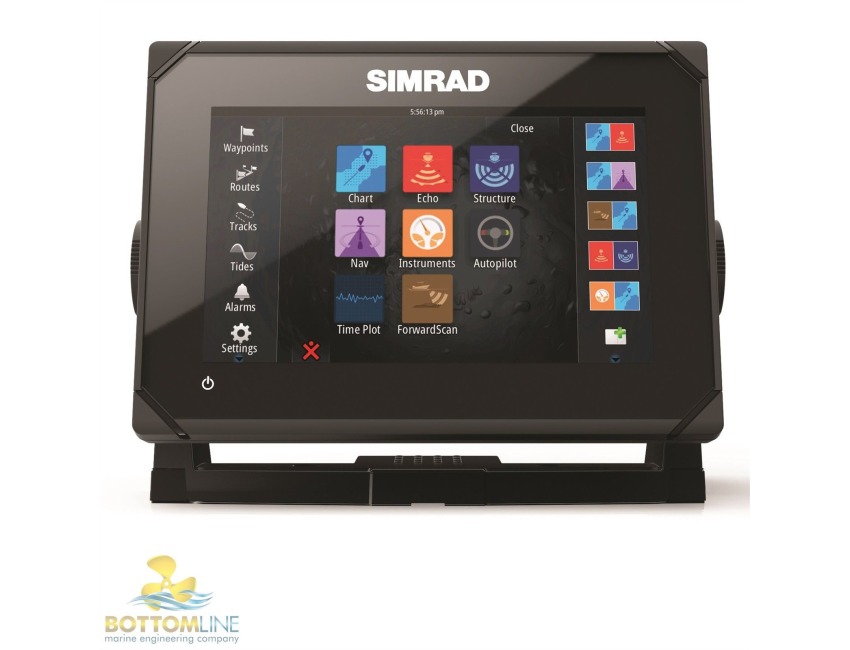

The GO9 XSE offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts. Simple home screen and menu layouts make all functions quickly accessible, with large and clearly-captioned icons that are easy to recognise and tap.

Features:
Easy to use multi-touch interface
Full-featured chartplotter with widest available cartography support
(Insight, Navionics, CMAP)
Radar display for Simrad Broadband 3G/4G and Halo Pulse Compression radar systems
Includes worldwide basemap
Plan smarter with TripIntel technology
9-inch flush or bracket mount display
Widescreen with bright LED backlight
High-speed 10 Hz GPS receiver
Includes TotalScan transducer for medium/high frequency CHIRP sonar and StructureScan HD imaging
Built-in GoFree Wi-Fi
Dual microSD card slots
Compatible with the Simrad WM-3 SiriusXM satellite weather module
(North America only)
NMEA 2000 compatible
Specifications:
Display Size 9 Diagonal, Display Type: TFT, Super Wide View Display Resolution: 800×480 Display Illumination: 1200nits Power Consumption: 12w @13.5V
Waypoint Storage: 10,000 points total combined waypoints / route points Memory Card Capable: Chart Card Slot: microSD GPS Antenna Type: 10 Hz built-in GPS
Weight: 1.32 kg / 2.91 lb Product Width: 243 mm / 9.56 in Product Depth: 83 mm / 3.26 in Product Height: 171 mm / 6.71 in
Environmental Protection: IPX7 Operating Temperature: -15C to +55C
Languages: 14 languages. NMEA 2000: Pending Certification / 1 port / Network Load: (LEN) 1

Specification List

Type Chartplotter Sub-Type Chirp Sonar and downscan
