SIMRAD Cruise 9 - Chartplotter / Sonar - with 83/200 Transducer - 000-15000-001

Click to enlarge

Code185652457169

MPN 000-15000-001

Was £779.99
Now: £703.89

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

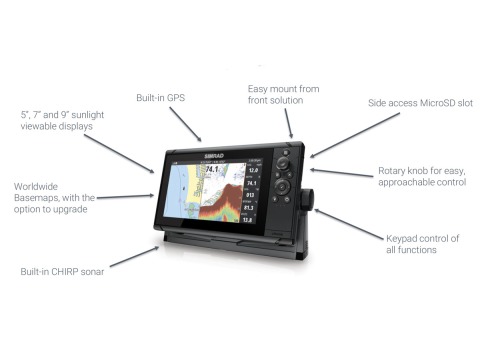

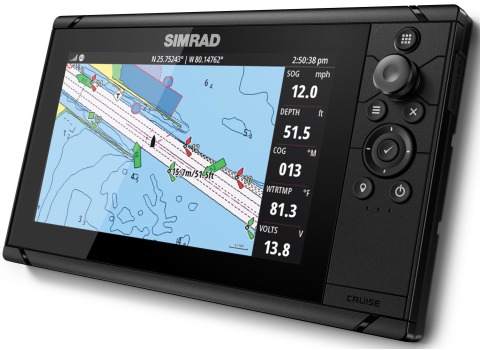

Simrad Cruise 9" Chartplotter

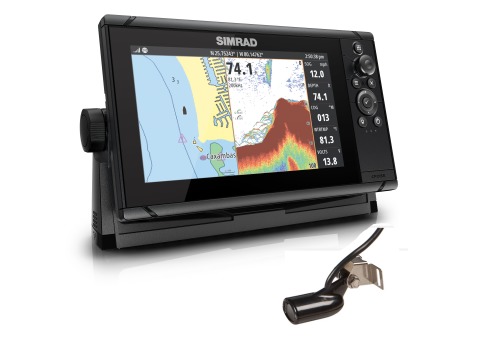

9 inch Chartplotter with 83/200 kHz Transom Mount Transducer

The new Simrad Cruise is the most intuitive chartplotter available.

Taking ease of use to a new level, Simrad Cruise is a chart-plotter first and depth finder second – offering reliable GPS navigation at an affordable price.

Free from complicated fishing-specific sonar and networking features, with Simrad Cruise you won’t need to master complex electronics - simply turn on your display and go.

Connectivity

NMEA 0183 No

NMEA2000 No

Bluetooth No

Ethernet No

PC Connectivity No

Video No

WiFi No

Display

Backlight Yes

Colour Yes

Resolution 800×480

Screen Brightness 1000 nits

Viewing Angles 70° top/bottom, 70° left/right

Electrical

Power Consumption, max. 19.4 W

Recommended Fuse Rating 3A

Supply Voltage 12v (10 - 17 V DC)

Environment

Operating Temperature Range -15°C to +55°C (5° F to 131° F)

Waterproof rating IPX 6 and 7

Other features

AIS No

Autopilot No

Cartography included Worldwide Base Map

Digital Switching No

Storage 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS

GPS Internal, 1Hz, WAAS, MSAS, EGNOS

Multimedia No

Radar (inc. compatibility) No

Sonar Integrated CHIRP. 8 Pin push fit connector

Weather reports No

Physical

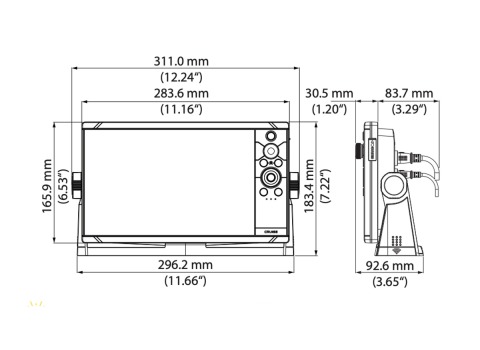

Dimensions (W x H x D) 311 mm x 165.8 × 92.6 mm (12.24" × 6.53" × 3.65") (with bracket)

Mounting Type Bracket or Panel

Other

Warranty Period 2 Years

Interface Directional cursor button and rotary dial

Languages

Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish.

Other Language unlocks are available from the manufacturer after purchase
*conditions apply.

Specification List

Type Chartplotter / Sonar
