SIMRAD AP44 Colour Autopilot Controller - NMEA2000 - 000-13289-001

AP44 Autopilot Controller
The AP44 Autopilot Controller combines Simrad Continuum steering technology with a full colour display, intuitive rotary dial and button controls, and modern glass helm styling.

Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chartplotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.
Key Features
Optically bonded 4.1-inch colour display
Ultra wide 170-degree viewing angle
Simrad Continuum steering technology
Intuitive autopilot control with simple menus and waterproof silicon keys
Quick and easy rotary-dial course adjustment
Automated turn patterns for fuel-efficient, hands-free manoeuvres
No Drift steering holds your course against wind and tide
Depth contour tracking makes it easy to fish ledges and drop-offs
Easy setup with auto tuning and calibration
Low-profile glass helm design
Low power consumption
Certified NMEA 2000 connectivity

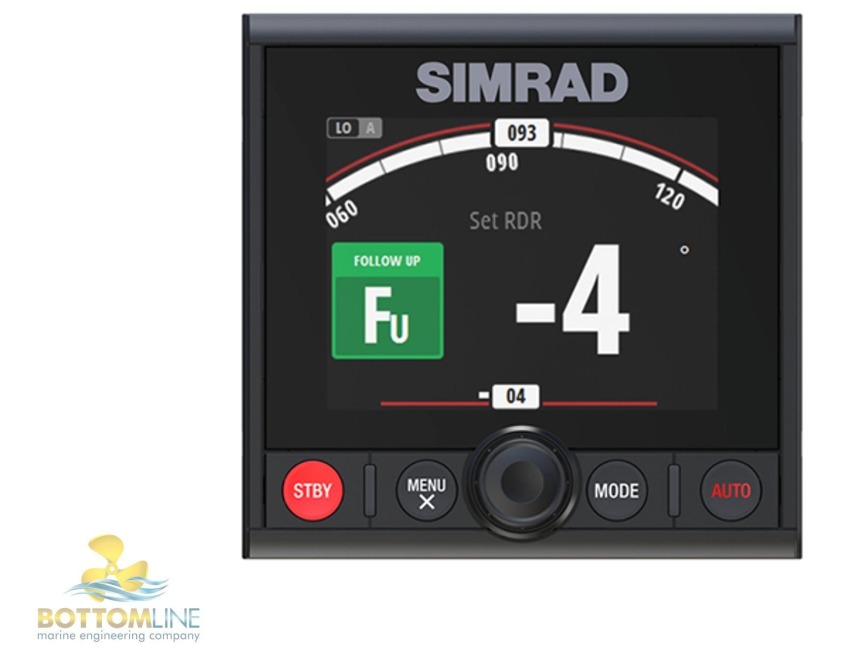

Optically bonded 4.1-inch colour display Visibility of heading, course and status information is essential when relying on your autopilot. The AP44 achieves this through a full-colour graphical display that allows for clear presentation of autopilot data and intuitive on-screen menus.
To ensure optimal visibility in all conditions, the AP44s LCD panel is optically bonded to its protective glass covering eliminating the possibility of condensation or fogging within the display. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior day-time visibility and lower power consumption compared to traditional backlit displays.
Intuitive autopilot control The point of a dedicated autopilot controller is to enable immediate access to auto-steering functionality, placing key controls within easy reach. Designed with that purpose in mind, the AP44 includes an intuitive interface with just four buttons and a push-to-enter rotary control dial. The rotary controller lets you make both large and small course adjustments with speed and precision, while also making it easy to select on-screen menu options without repeated button-presses.
Simrad Continuum steering technology Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues today at Simrad Yachtings autopilot research hub in Norway. This legacy is exemplified by the Continuum algorithm: the software that drives Simrad steering technology. Continuum brings all those years of research and on-water experience to your helm, for a smart pilot you can trust to take the wheel. Simrad autopilot solutions are available for a wide range of applications, from the smallest recreational boats up to large commercial vessels.

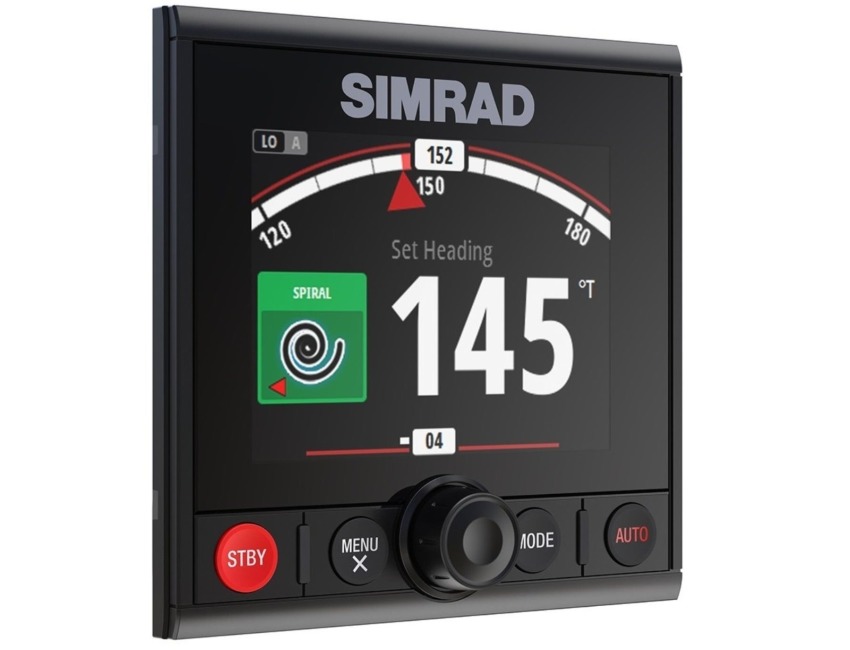

Automated turn patterns Your Simrad autopilot can do much more than keep you on course. The AP44 gives you easy access to a range of built-in turn patterns designed to assist with fishing, diving, or just making a quick and efficient U-turn. Choose a turn, select port or starboard, and youre away. For more control, customise your turn pattern to execute complex spirals, zigzags, and other useful manoeuvres.
No Drift steering No Drift mode integrates GPS navigation with auto-steering, using your position to counteract the effects of wind and tide. This lets you maintain a straight track over ground on your current heading, without having to manually set a waypoint or route. To unlock this powerful feature, simply combine the AP44 with an NMEA 2000 connected GPS receiver or compatible Simrad chartplotter.
Depth contour tracking Network your AP44 autopilot system with a compatible echosounder module to enable depth contour tracking. In this mode, the AP44 will auto-steer to maintain a constant depth of water beneath your boat perfect for following depth contours while fishing or cruising, without having to define complex multi-waypoint routes.
Easy setup with auto tuning Autopilot installation and commissioning doesnt have to be difficult or time consuming. The AP44 offers automatic tuning to ensure optimal auto-steering performance, with a simple on-screen commissioning process including dockside configuration and sea trial. Automatic compass calibration is available with the Simrad Precision-9 solid-state compass, further simplifying autopilot setup while ensuring heading accuracy.
