Simrad / Lowrance Marine AIS Class B NAIS-500 - Transmit/Receiver- 000-13609-001

SIMRAD / Lowrance Marine AIS Class B NAIS-500 - Transmitter/Receiver- 000-13609-001

The Lowrance NAIS 500 is a completely autonomous device that enables you to be 'seen' by other ships that also have AIS, within VHF range. Once the NAIS 400 has been linked to an compatible chart plotter, all relevant AIS data can be displayed on the display.

Compact size, light weight, fully waterproof, low power consumption: the new NAIS - 500 is ideal for networking with HDS-Chartplotters but also will work with other GPS Chart Plotters from other manufacturers.

Functions:

Compatible with NMEA 2000 or Simrad SimNet: easy installation
Blackbox Class B AIS transponder with GPS receiver
AIS Send & Receive
Low power consumption
Approval / Reference Number: 8157801

Technical Details:

Dimensions: L 140mmx W100mm x H42 mm
Weight: 0,25 kg
Temperature range: -25 ° C to +55 ° C
Water resistance:IPX 7
Current consumption:170 mA at 12 V DC
Power supply:10.8 - 15.6 VDC
Connectors:VHF antenna (SO -239 ), GPS Antenna (SMB), Mini-USB, Micro-C NMEA 2000 , power and data cable (NMEA 0183 )

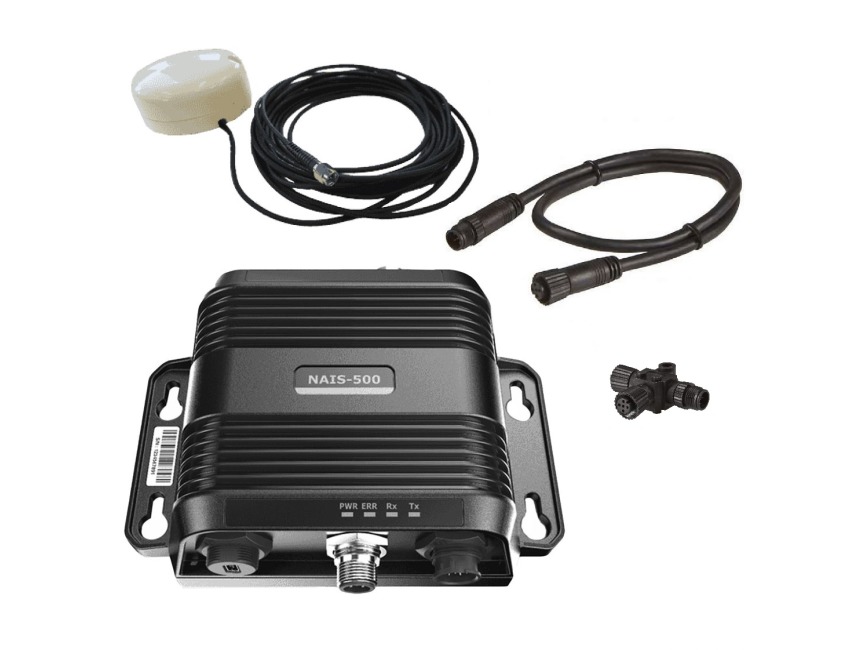

Included in the box:

Lowrance NAIS - 500 Blackbox
Mounting material
GPS antenna.
GPS antenna mounting hardware.
NMEA 0183 -HS (RS 232 ) / Power cable
Micro-C NMEA 2000 Cable
Mini-USB cable
Configuration Software & Manual (English) on CD
