Scanstrut Dual Power Tower for 4ft Open Array Radar and 60cm Satcom - DPT-SO2-40
Click to enlarge
Code155242260247
MPN DPT-SO2-40
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Scanstrut DPT-SO2-40 Dual PowerTower - for open array &
40cm / 60cm satcom
If you live outside of UK Mainland please contact us before purchasing this item

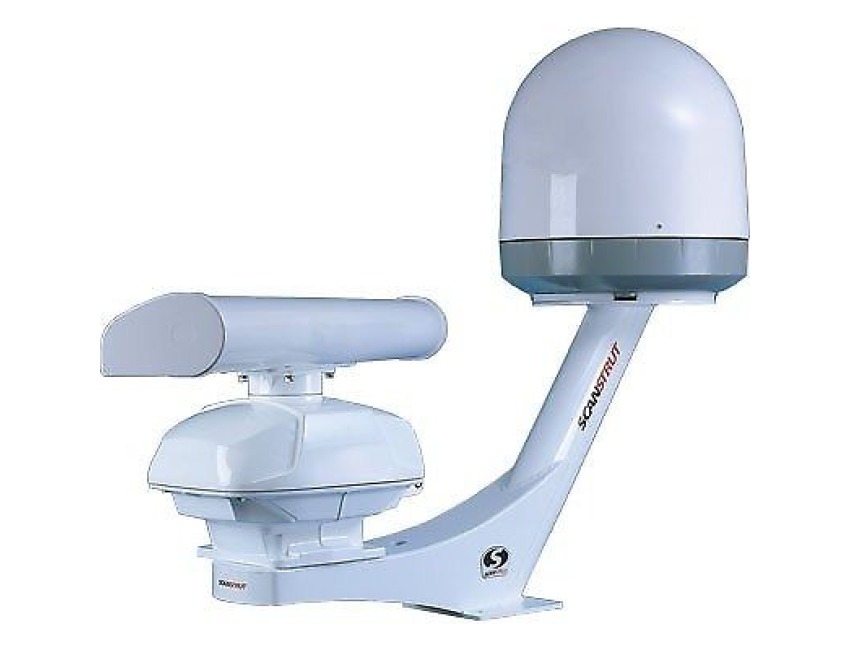

Scanstrut’s Dual PowerTower® mounts allow the installation of radar and satcom antennas together on a single space-saving mount. Installing the satcom antenna above the radar eliminates antenna interference and ensures maximum performance from both applications.
The range includes options to mount:
2kW or 4kW radomes + 40cm or 60cm satcom antennas
4’ open-array + 40cm or 60cm satcom antennas
Refer to Product Selection Guide in the back of the brochure in the download section above
Features
Minimal mounting area required, can be installed even where deck space is limited
Hollow stem to route cables neatly inside mount
Pre-fitted waterproof IP65 gland to seal cable entry into stem
Pre-drilled mounting holes for quick and easy installation

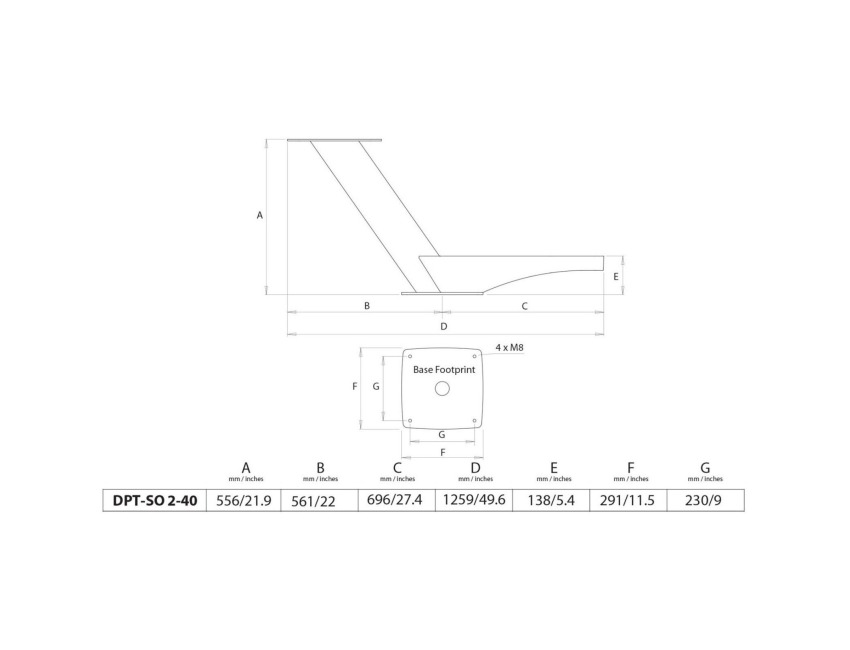

Dimensions
11.5” / 290mm square footprint
Materials
Marine grade 6082 aluminium
Polyester powder coated for a durable and gloss white finish
Kit includes
1 x Dual PowerTower
1 x Watertight base seal
1 x Waterproof IP65 gland (pre-fitted)
(*Radar and Satcom not included)
Specification List
| Type | Radar Strut |
|---|
