Scanstrut Compact Helm Pod for 8" & 9" Displays - White - SPH-8-W
Code165762442111
MPN SPH-8-W
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
SCANSTRUT COMPACT HELMPOD FOR8 and9 INCH DISPLAYS (WHITE)

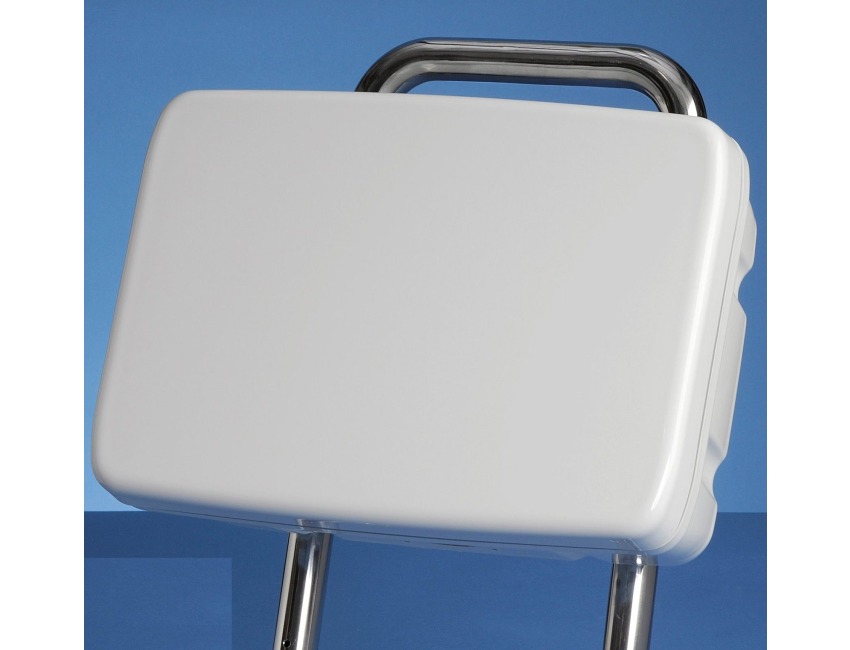

(Stainless support is for illustration only and isnot included)
Part Number: SPH-8-W
With great new design features, the Scanstrut Helm Pod is a perfect choice for all cockpit configurations.
With options tofit radar displays, chartplotters and standard navigation instruments, the choice is yours!
Features:
Universal Helm Fixing Fits pedestal rails from 25mm to 33.7mm (0.98 1.33) diameter
Secure & Watertight Install Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable entry
No Drill Fixing Kit Customised U-bolts fit around rail and through the saddles into the back of the pod eliminating the need for time consuming and awkward drilling of the stainless rail.
Hassle Free Install & Service Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.
Increased Protection Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it wont deteriorate over time.
Supplied Uncut As standard you will receive your Scanpod uncut. For units purchased at the same time as a plotter we can offer a cutting service at extra cost.

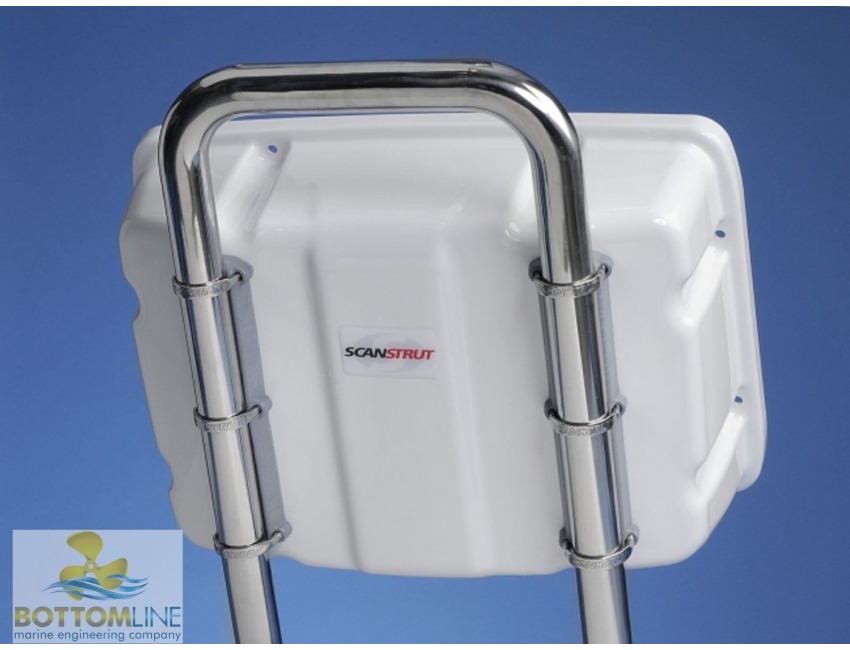

(Stainless support is for illustration only and isnot included)

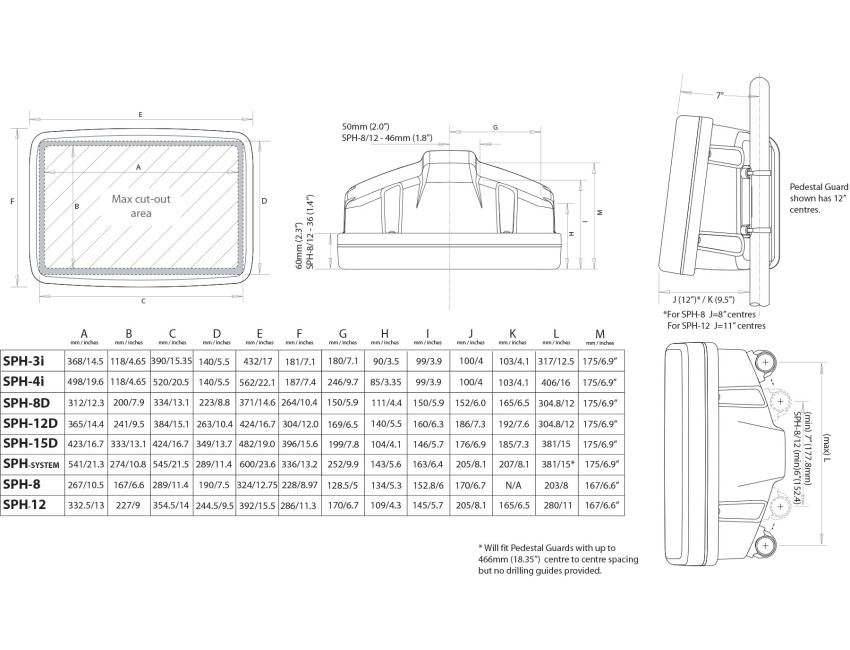

Images shown are representative and may show the same pod in a different size. Refer to the dimensioned drawing.
Specification List
Type | Helm pod | Sub-Type | White |
---|---|---|---|
Country/Region of Manufacture | United Kingdom |
