R&D Flexible Engine Mount (Shear Type / 70 - 170LBS / 12mm Stud) - 800-039
Click to enlarge
Codex
MPN 800-039
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

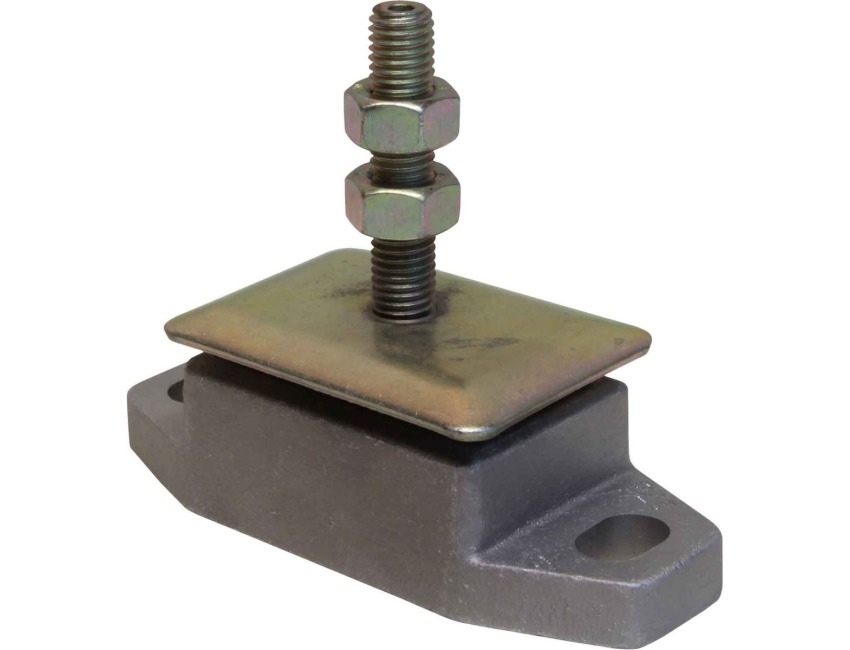

R&D Flexible Engine Mount (Shear Type / 70 - 170LBS / 12mm Stud) - 800-039
Part No: 800-039
FLEXIBLE ENGINE MOUNTINGS
• Capacity 30 - 2000 lbs per mount
• Good vibration isolation
• Fail safe design
• Will withstand roll over test
• Competitively priced
• Wide range of sizes
• Accepts propeller thrust
• Pre-loaded
• Slotted holes to assist alignment
• Height adjusting to simplify alignment
INSTALLATION DETAILS
Maximum clearance between the underside of the height adjusting nut and top washer must not be more than 10mm.
If more height is required use a spacer under the mounting casting. This applies to all mountings in the R & D Marine Range.
HOW TO SELECT
1. Engine type, number of cylinders
2. Type of gearbox and reduction ratio
3. Weight of engine and gearbox combined by weighing or manufacturers literature
4. Is flywheel in conventional place between the engine and gearbox?
5. Position of engine mounting points
6. Find centre of gravity by balancing on a roller, if possible, (see above diagram)
7. If centre of gravity cannot be found, assume weight distribution of 60% on rear mounts, with 40% on front mounts (if rear mount is in line with the flywheel)
SMALL SHEAR LOADED MOUNTING
Low height giving good vibration isolation. 12mm Stud.
Mount Pre-loaded: 1.8mm (0.07")
Deflection: 1.8 - 3.4mm (0.07 - 0.14")
Height adjusting nut thickness: 10mm (0.39")
Maximum height: 99mm (3.9")
Capacity per mount: 32-77kg (70-200lbs)
Capacity - 70 - 200 lbs
Maximum Load - 32kg to 77kg (70lbs to 170lbs)
Hole Centres - 101.6mm (4")
Suitable For - 1, 2 & 3 Cylinder Short Stroke High Speed Engines
Brand - R&D Marine
Application - 1, 2 & 3 Cylinder Short Stroke High Speed Engines
Height - 99mm (3.9"), Base: 41.69mm (1.64")
Width - Base: 55.37mm (2.18")
Length - Base: 127mm (5")
Dimensions - Height Adjusting Nut Thickness: 10mm (0.39")
Country of Origin - United Kingdom
Specification List
| Type | Mount |
|---|
