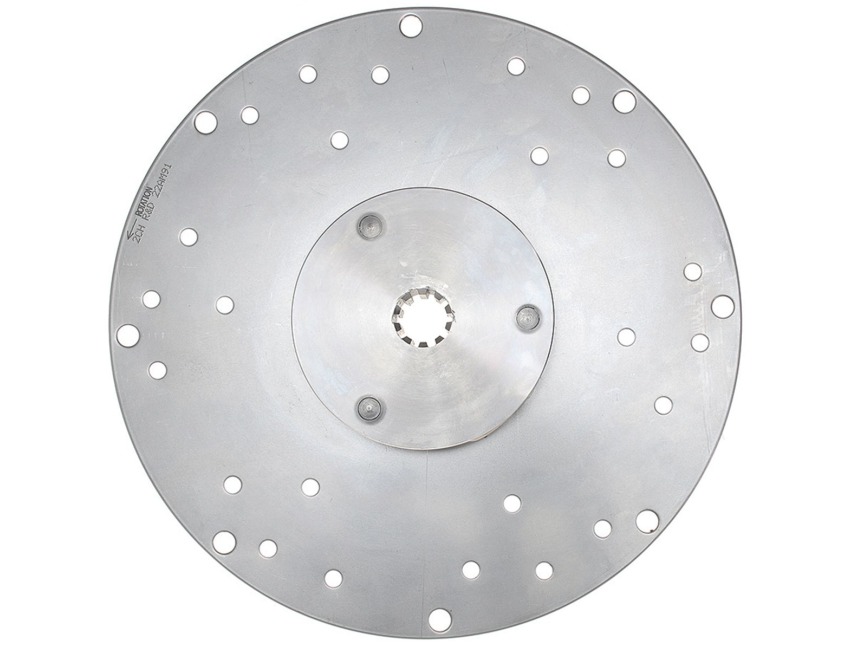

R&D Drive Plate for PRM, Hurth (10 Teeth Spline, 314.3mm OD) - 22AM91 DRIVE PLATE
Click to enlarge
Codex
MPN 22AM91 DRIVE PLATE
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
R&D Drive Plate for PRM, Hurth (10 Teeth Spline, 314.3mm OD) - 22AM91 DRIVE PLATE
Part No: 22AM91 DRIVE PLATE
Spline for 10-Tooth DIN 5464 (PRM 80/120/150, Hurth 100/125) input shaft. Two stage 'H/D' damper element. Back plate for mounting: 5 sets, various, 8mm holes.
Bolt Hole PCD - 6 × 8.1mm (0.32") on 200mm (7.875") PCD, 6 × 8.1mm (0.32") on 250mm (9.843") PCD, 6 × 8.1mm (0.32") on 269.9mm (10.625") PCD, 6 × 8.1mm (0.32") on 273mm (10-3/4") PCD, 8 × 10.6mm (0.416") on 296mm (11.625") PCD
Gearbox Spline - 10 teeth B10 x 23 × 29 DIN 5464 (29mm diameter)
Torque - 135 Nm, 100 lbft
Brand - R&D Marine
Application - SAE 10 engines mated to gearboxes: PRM 80, 90, 120, 125 & 150 gearbox, ZF Hurth HBW 35, 40, 50, 100, 125 & 150 gearboxes, Technodrive TMC 30, 40, 50 & 60 gearboxes & Borgwarner 500.
Diameter - 314.3mm (12.375")
Thickness - Maximum: 32mm (1.25")
Country of Origin - United Kingdom
Specification List
| Type | Drive Plate |
|---|
