R&D Drive Plate for PRM (17 Teeth Spline, 298.5mm OD) - 12AM8 DRIVE PLATE
Click to enlarge
Codex
MPN 12AM8 DRIVE PLATE
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

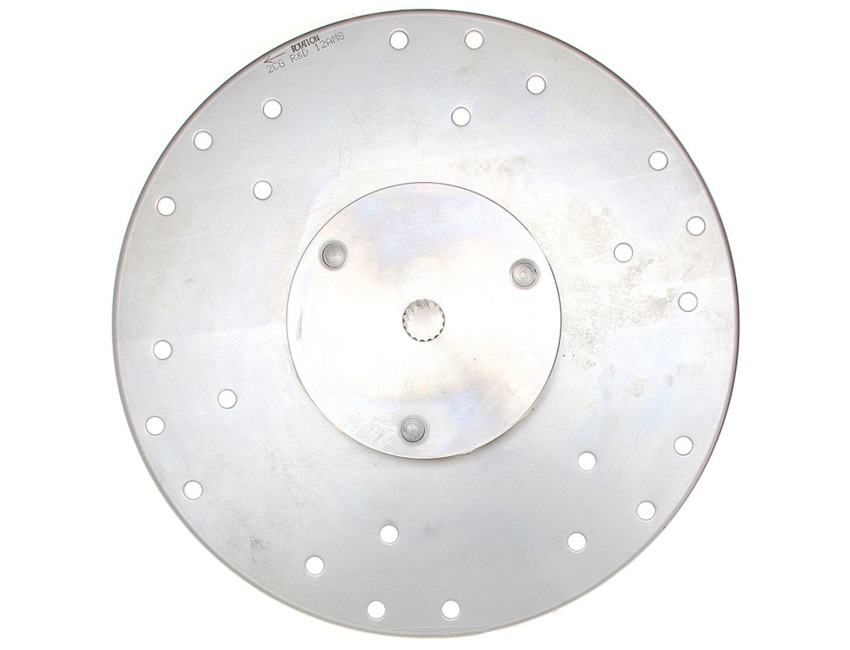

R&D Drive Plate for PRM (17 Teeth Spline, 298.5mm OD) - 12AM8 DRIVE PLATE
Part No: 12AM8 DRIVE PLATE
Spline for 17-Tooth 24/48 DP (PRM Delta) input shaft. Two stage 'H/D' damper element. Back plate for mounting: Various, 4 sets, 8mm holes.
Bolt Hole PCD - 6 × 8.1mm on 200mm PCD, 6 × 8.1mm on 250mm PCD, 6 × 8.1mm on 269.9mm PCD, 6 × 8.1mm on 273mm PCD
Gearbox Spline - 17 teeth 24/48 DP (19.7mm diameter)
Replaces - PRM MT8080, R&D 12AA8
Torque - 135 Nm, 100 lbft
Brand - R&D Marine
Application - PRM Delta gearbox subject to flywheel dimensions
Diameter - OD: 298.5mm (11-3/4")
Thickness - Maximum: 32mm (1.25")
Country of Origin - United Kingdom
Specification List
| Type | Drive Plate |
|---|
