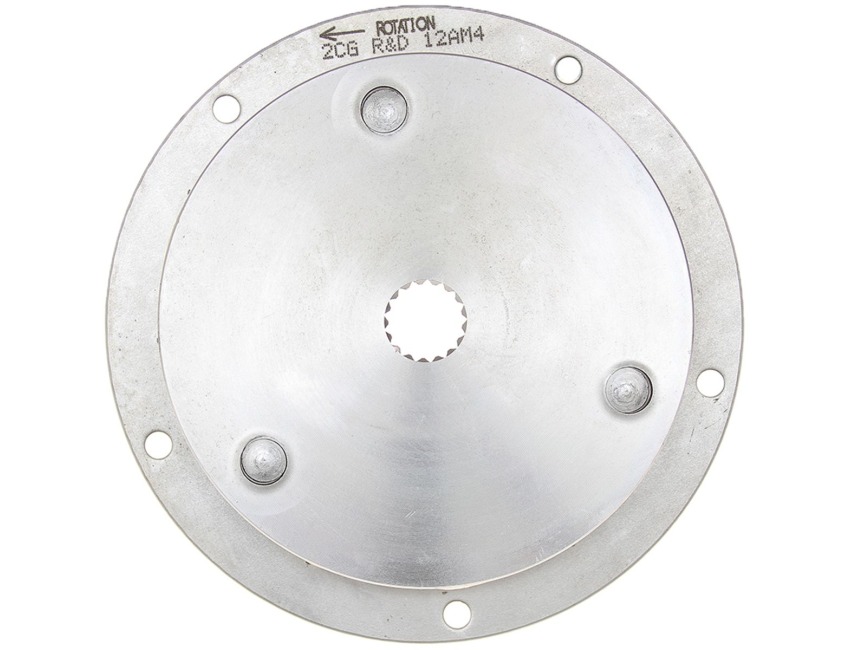

R&D Drive Plate for PRM (17 Teeth Spline, 155.45mm OD) - 12AM4 DRIVE PLATE
Click to enlarge
Code x
MPN 12AM4 DRIVE PLATE
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
R&D Drive Plate for PRM (17 Teeth Spline, 155.45mm OD) - 12AM4 DRIVE PLATE
Part No: 12AM4 DRIVE PLATE
Spline for 17-Tooth 24/48DP (PRM Delta fine tooth) input shaft. Two stage 'H/D' damper element. Back plate for mounting: 5× 6mm holes, 135mm PCD.
Bolt Hole PCD - 5 × 6.35mm holes (0.25") on 142mm PCD (5.593").
Gearbox Spline - 17 teeth 24/48 DP (19.7mm diameter)
Replaces - PRM MT8075, R&D 12AA4
Torque - 135 Nm, 100 lbft
Brand - R&D Marine
Application - PRM Delta gearboxes
Diameter - OD: 155.45mm (6-1/8")
Thickness - Maximum: 32mm (1.25")
Country of Origin - United Kingdom
Specification List
| Type | Drive Plate |
|---|
