Description
R&D Drive Plate For PRM (10 Teeth Spline, 298.5mm OD, 100 lbft Torque) - 13B8
Part No: 13B8

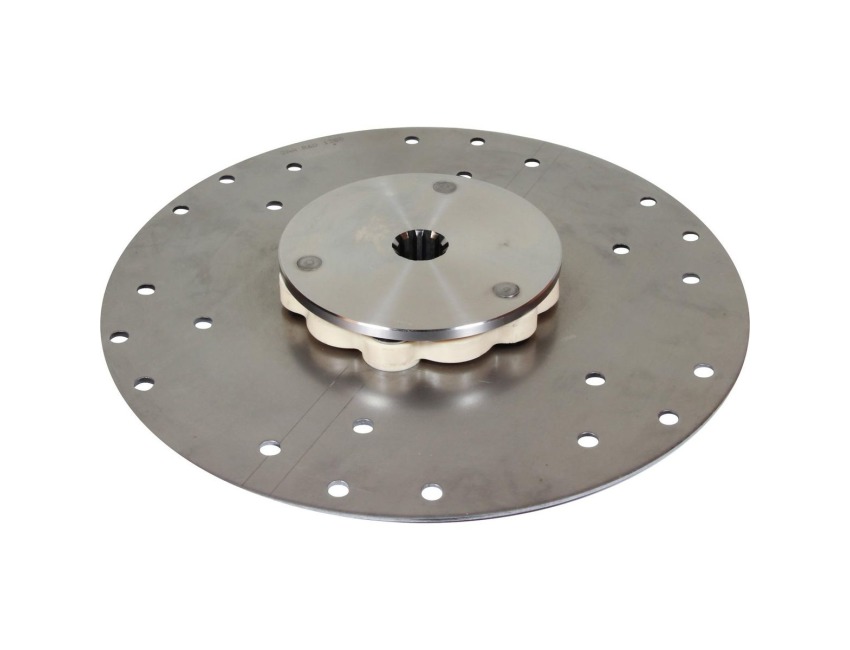

13B8 Marine Boat Engine Damper Drive Plate from R&D Marine
Fitted between the boat engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.
Also called the Driven Plate, Damper Plate or Clutch Plate, the 13B8 Damper Drive Plate is from the R and D Loop element range. Common applications for the 13B8 drive plate include small marine engines up to approximately 45 bhp depending on application.
The technical details:
Spline: 10 teeth SAE 1" × 10T (25.4mm diameter) for PRM100, 101, 140, 160 & 260 marine gearboxes.
Diameter of drive plate back plate which bolts to the engine flywheel: 298.5 mm 11.75"
Back plate fixing holes: multi-punched offering the following fixing holes arrangement 6 × 8.1mm on 200mm PCD, 6 × 8.1mm on 250mm PCD, 6 × 8.1mm on 269.9mm PCD, 6 × 8.1mm on 273mm PCD.
Drive plate maximum thickness: 32mm (1.25")
Fitted with a type B loop element for 135Nm 100 ft lb torque, which can be mounted either round on the flywheel and rotated in either direction. This drive plate element will provide linear stiffness up to 3 degrees of deflection and is failsafe.
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
Bolt Hole PCD - 6 × 8.1mm on 200mm PCD, 6 × 8.1mm on 250mm PCD, 6 × 8.1mm on 269.9mm PCD, 6 × 8.1mm on 273mm PCD
Gearbox Spline - 10 teeth SAE 1" 10T (25.4mm diameter)
Torque - 135Nm, 100 ft lb
Brand - R&D Marine
Application - PRM 100, 101, 140, 160 & 260 gearboxes
Diameter - OD: 298.5mm (11.75")
Thickness - Maximum: 32mm (1.25")
Country of Origin - United Kingdom
Specification List
| Type | Drive Plate |
|---|
