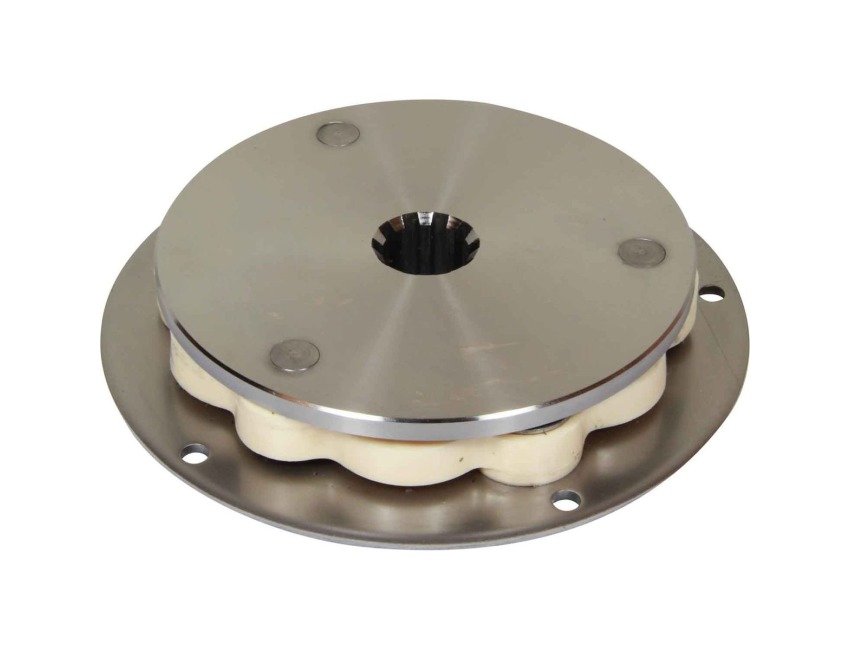

R&D Drive Plate For PRM (10 Teeth Spline, 155.45mm OD, 100 lb ft) - 13B4
Click to enlarge
Codex
MPN 13B4
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
R&D Drive Plate For PRM (10 Teeth Spline, 155.45mm OD, 100 lb ft) - 13B4
Part No: 13B4
13B4 Marine Engine Damper Drive Plate from R&D Marine
Fitted between the boat engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.
Also called the Driven Plate, Damper Plate or Clutch Plate, the 13B4 Damper Drive Plate is from the R and D Loop element range. Common applications for the 13B4 drive plate include BMC, Ford and Perkins engines which have a flywheel with the 6.125" diameter fixings aperture.
The technical details:
Spline: 10 teeth SAE 1" 10T (25.4mm diameter) for PRM 100, 101, 140, 160 and 260 Gearboxes.
Diameter of drive plate back plate which bolts to the engine flywheel: 155.45 mm 6.125"
Back plate fixing holes: The small back plate has 5 × 6.35mm holes (0.25") on 142mm PCD (5.593). This was a very common fixing arrangement for BMC, Leyland, Thornycroft and Perkins engines.
Drive plate maximum thickness: 32mm (1.25")
Fitted with a type B loop element for 135Nm 100 ft lb torque, which can be mounted either round on the flywheel and rotated in either direction. This drive plate element will provide linear stiffness up to 3 degrees of deflection and is failsafe.
Replaces PRM drive plate MT1608.
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
Bolt Hole PCD - 8 × 6.35mm (0.25") on 142mm PCD (5.593")
Gearbox Spline - 10 teeth SAE 1" 10T (25.4mm diameter)
Replaces - PRM drive plate MT1608
Torque - 135Nm, 100 ft lb
Brand - R&D Marine
Application - PRM 100, 101, 140, 160 & 260 gearboxes
Diameter - OD: 155.45mm (6.125")
Thickness - Maximum: 32mm (1.25")
Country of Origin - United Kingdom
Specification List
| Type | Drive Plate |
|---|
