R&D Drive Plate For Hurth, PRM, TMC (10 Teeth Spline / 215.9mm OD) - 22B60
Click to enlarge
Codex
MPN 22B60
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

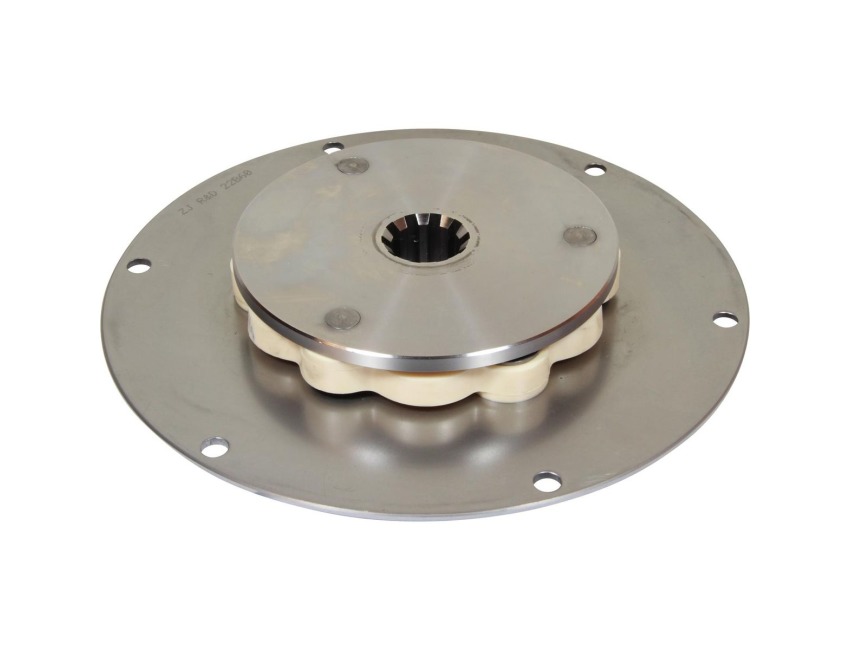

R&D Drive Plate For Hurth, PRM, TMC (10 Teeth Spline / 215.9mm OD) - 22B60
Part No: 22B60
22B60 R & D Marine Damper Drive Plate
Fitted between the engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.
Also called the Driven Plate, Damper Plate or Clutch Plate, the 22B60 Damper Drive Plate is from the R and D range. Common applications for this drive plate include Kubota based engines such as Beta Marine. It can replace PRM drive plate 22B60.
The technical details:
Spline: 10 teeth DIN 5464 (29mm diameter) for ZF Hurth HBW 35, 40, 50, 100, 125 & 150 gearboxes, TMC 30, 40, 50 & 60 gearboxes and PRM 80, 120 & 150 gearboxes.
Diameter of drive plate back plate which bolts to the engine flywheel: 215.9mm 8".
Back plate fixing holes: 6 × 8.1mm on 200mm pcd Beta SAE 6-1/2.
Drive plate maximum thickness: 32mm (1.25").
Fitted with the robust type B loop element for 135 Nm 100 ft lb torque, which can be mounted either round on the flywheel and rotated in either direction. This drive plate element will provide linear stiffness up to 3 degrees of deflection and is failsafe.
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
Bolt Hole PCD - 6 × 8.1mm on 200mm pcd (Beta SAE 6-1/2)
Gearbox Spline - 10 teeth DIN 5464 (29mm diameter)
Torque - 135Nm, 100 ft lb
Brand - R&D Marine
Application - ZF Hurth HBW 35, 40, 50, 100, 125 & 150, TMC 30, 40, 50 & 60, PRM 80, 120 & 150 gearboxes
Diameter - OD: 215.9mm (8")
Thickness - Maximum: 32mm (1.25")
Country of Origin - United Kingdom
Specification List
| Type | Drive Plate |
|---|
