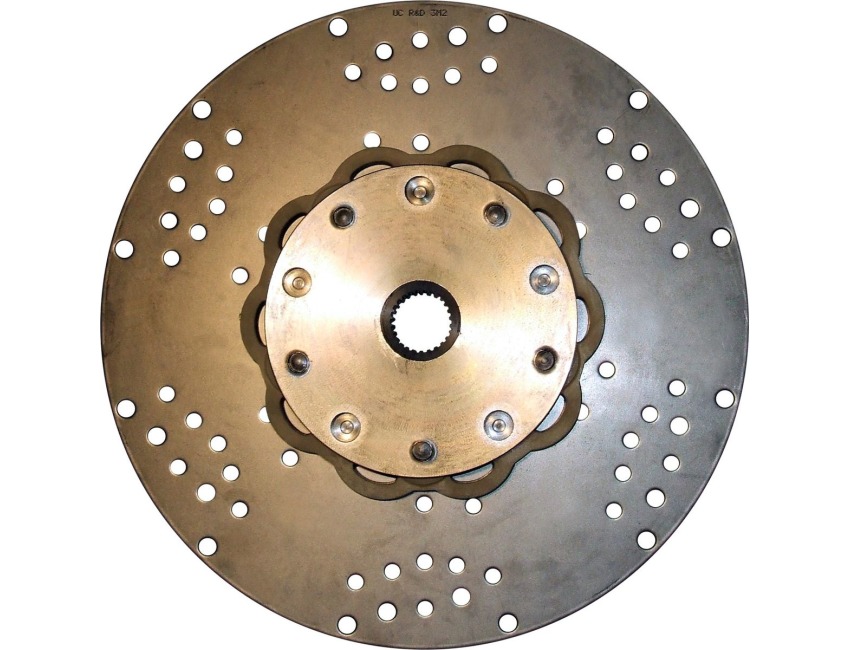

R&D Drive Plate For Borgwarner (26 Teeth Spline, 362mm OD, 400 lb ft) - 3M2
Part No: 3M2
3M2 Boat Engine Damper Drive Plate from R&D Marine
Fitted between the marine engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.
Also called the Driven Plate, Damper Plate or Clutch Plate, the 3M2 Damper Drive Plate is from the R and D Loop element range. Common applications for the 3M2 drive plate include Ford and Perkins marine engines.
The technical details:
- Spline: 26 teeth 20/40 DP (35.4mm diameter) for Borgwarner 70, 71, 72 & 73 gearboxes, PRM Inline gearboxes, Paragon P series, Technodrive TN90, 170, 260, 345, 485, 545 & 880 gearboxes, TMP 1200 & 1500, Twin Disc 501 & 502 gearboxes, some Volvo saildrives, ZF IRM220A & Hurth HBW 250 and HSW gearboxes.
- Diameter of drive plate back plate which bolts to the engine flywheel: 362mm (14.25")
- Back plate fixing holes: Multi hole back plate offering 6 × 8.1mm on 200mm PCD, 6 × 8.1mm on 210mm PCD, 6 × 8.1mm on 263mm PCD, 6 × 8.1mm on 269.9mm PCD, 6 × 8.1mm on 276.3mm PCD, 6 × 8.1mm on 289mm PCD, 6 × 8.1mm on 295.3mm PCD, 6 × 8.8mm on 304.8mm PCD, 6 × 8.1mm on 314.4mm PCD, 6 × 9.5mm on 320.7mm PCD and 12 × 9.5mm on 343mm PCD (Ford)
- Maximum thickness of drive plate: 35mm (1.38")
Fitted with a type M loop element for 540 Nm 400 ft lb torque, the 3M2 drive plate can be mounted either round on the flywheel and rotated in either direction. This drive plate element will provide linear stiffness up to 3 degrees of deflection and is failsafe.
Bolt Hole PCD - 6 × 8.1mm on 200mm PCD, 6 × 8.1mm on 210mm PCD, 6 × 8.1mm on 263mm PCD, 6 × 8.1mm on 269.9mm PCD, 6 × 8.1mm on 276.3mm PCD, 6 × 8.1mm on 289mm PCD, 6 × 8.1mm on 295.3mm PCD, 6 × 8.8mm on 304.8mm PCD, 6 × 8.1mm on 314.4mm PCD, 6 × 9.5mm on 320.7mm PCD & 12
Gearbox Spline - 26 teeth 20/40 DP (35.4mm diameter)
Torque - 540 Nm, 400 lbft
Brand - R&D Marine
Application - Borgwarner 70, 71, 72 & 73, PRM Inline gearboxes, Paragon P series, Technodrive TN 90, 170, 260, 345, 485, 545 & 880, TMP 1200 & 1500, Twin Disc 501 & 502, some Volvo saildrives, ZF IRM220A, Hurth HBW 250 & 360, HSW 125, 450, 630 & 800 gearboxes.
Diameter - OD: 362mm (14-1/4")
Thickness - Maximum: 35mm (1.38")
Country of Origin - United Kingdom
Specification List
| Type | Drive Plate |
|---|
