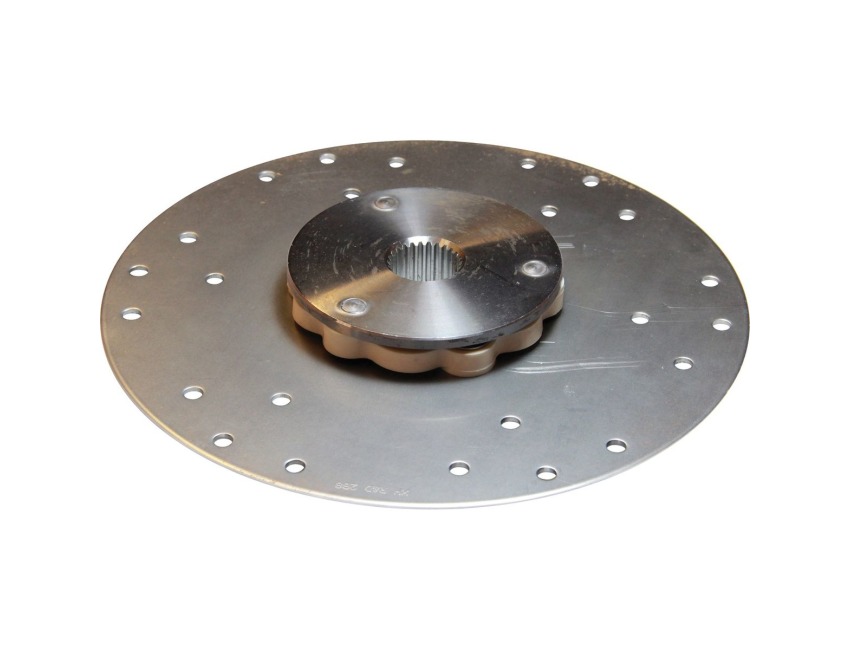

R&D Drive Plate For Borgwarner (26 Teeth Spline, 298.5mm OD, 100 lbft) - 2B8
Click to enlarge
Codex
MPN 2B8
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
R&D Drive Plate For Borgwarner (26 Teeth Spline, 298.5mm OD, 100 lbft) - 2B8
Part No: 2B8
2B8 R&D Marine Boat Engine Damper Drive Plate
Fitted between the boat engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.
Also called the Driven Plate, Damper Plate or Clutch Plate, the 2B8 Damper Drive Plate is from the R and D Loop element range. Common applications for the 2B8 drive plate include small marine engines up to approximately 45 bhp depending on application.
R&D damper plate technical details:
- Spline: 26 teeth 20/40 DP (35.4mm diameter) for Borgwarner 70, 71, 72 C Velvet Drive gearboxes, PRM inline gearboxes, TMP, Paragon and Twin Disc Boxes, ZF Hurth HSW gearboxes and some Volvo Saildrive legs.
- Diameter of drive plate back plate which bolts to the engine flywheel: 298.5mm (11.75")
- Back plate fixing holes: multi-punched offering the following fixing holes arrangement 6 × 8.1mm on 200mm PCD, 6 × 8.1mm on 250mm PCD, 6 × 8.1mm on 269.9mm PCD, 6 × 8.1mm on 273mm PCD.
- Drive plate maximum thickness: 32mm (1.25")
Fitted with a type B loop element for 135Nm 100 ft lb torque, the 2B8 drive plate can be mounted either round on the flywheel and rotated in either direction. This drive plate element will provide linear stiffness up to 3 degrees of deflection and is failsafe.
Bolt Hole PCD - 6 × 8.1mm on 200mm PCD, 6 × 8.1mm on 250mm PCD, 6 × 8.1mm on 269.9mm PCD, 6 × 8.1mm on 273mm PCD.
Gearbox Spline - 26 teeth 20/40 DP (35.4mm diameter)
Torque - 135 Nm, 100 lbft
Brand - R&D Marine
Application - Borgwarner 70, 71, 72 & 73, PRM Inline gearboxes, Paragon P series, Technodrive TN 90, 170, 260, 345, 485, 545 & 880, TMP 1200 & 1500, Twin Disc 501 & 502, some Volvo saildrives, ZF IRM220A, Hurth HBW 250 & 360, HSW 125, 450, 630 & 800 gearboxes.
Diameter - OD: 298.5mm (11-3/4")
Thickness - Maximum: 32mm (1.25")
Country of Origin - United Kingdom
Specification List
| Type | Drive Plate |
|---|
