Quick BL2 600 W 12V free fall 6mm MK2 - FSBL20612FY6B00
Click to enlarge
Codex
MPN FSBL20612FY6B00
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Quick BL2 600 W 12V free fall 6mm MK2 - FSBL20612FY6B00
Part No: FSBL20612FY6B00

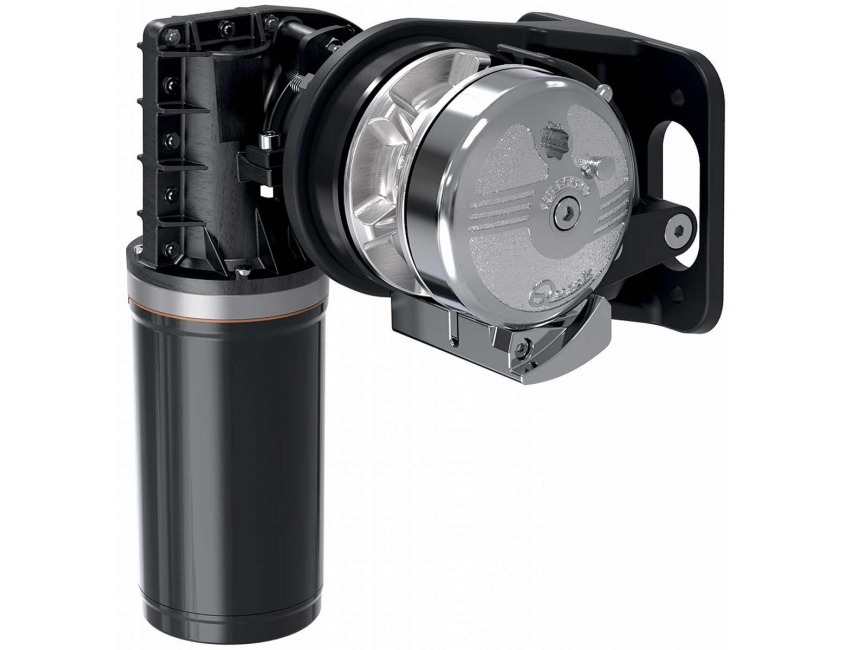

The Quick Balder BL2 windlass with horizontal axis is designed for installation in the anchor locker compartment. This windlass is fitted with a 100% recyclable technopolymer gearbox.
This BL2 model has a 600W motor at 12 volts, providing a maximum working load of 200kg (441 lbs) and a maximum chain speed of 28.9 meters per minute (94.8 ft per minute).
To ease the positioning, the motor can rotate up to 180° at 45° increments and thanks to a specific bracket, the windlass can be installed on the bulkhead or below deck.
This windlass features an 6mm gypsy which is suitable for 6mm DIN 766, 6mm ISO and 1/2" (12.7mm) rope (this value refers to a three-strand polyester rope with a rope/chain splice manufactured with the “Quick®” system).
Product contents:
- Windlass
- Reversing contactor unit T6411-12
- Nylon handle
- Mounting bracket
- Installation and user manual
- Warranty
- Drill template
Primary Construction - Stainless Steel
Suitable For - Chain and Rope
Boat Size - 5 to 8 metres in length
Gypsy Size - 6mm
Brand - Quick
Series - Balder BL2
Model - BL2 FF 6
Voltage - 12V DC
Wattage - 600W
Working Load - Working Load: 65kg (143.3 lb) / Max. Working Load: 200kg (440.9 lb)
Maximum Pull Load - 660kg (1455 lb)
Maximum Chain Speed - 28.9m/min (94.8 ft/min)
Amps - 80A at 65kg
Fuse - 60A Protection Circuit Breaker
Contents - Windlass, Reversing contactor unit T6411-12, Nylon handle, Bolts and screw (assembly, top/gearbox), Installation and User manual, Warranty, Drill template
Approvals - CE
Weight - 12.3kg (27 lb) without drum
Diameter - Mounting Holes: 9.50mm (3/8")
Size - Motor cable: 16mm² (AWG5) up to a total cable length of 20 metres
Specification List
| Type | Winch |
|---|
