Description
Quick BL2 1200W 12V free fall 8mm MK2 - FSBL21212FY8B00
Part No: FSBL21212FY8B00

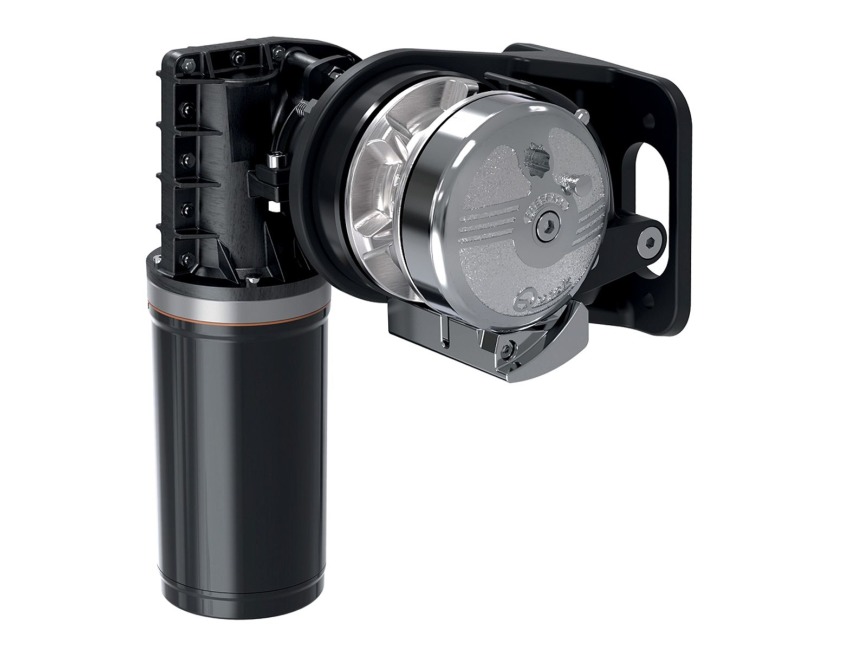

The Quick Balder BL2 windlass with horizontal axis is designed for installation in the anchor locker compartment. This windlass is fitted with a 100% recyclable technopolymer gearbox.
This BL2 model has a 1200W motor at 12 volts, providing a maximum working load of 420kg (925.9 lbs) and a maximum chain speed of 31.2 meters per minute (102.4 ft per minute).
To ease the positioning, the motor can rotate up to 180° at 45° increments and thanks to a specific bracket, the windlass can be installed on the bulkhead or below deck.
This windlass features an 8mm gypsy which is suitable for 8mm DIN 766, 8mm ISO (EN 818-3) and 1/2" (12.7mm) rope (this value refers to a three-strand polyester rope with a rope/chain splice manufactured with the “Quick®” system).
Product contents:
- Windlass
- Reversing contactor unit T6415-12
- Nylon handle
- Mounting bracket
- Installation and user manual
- Warranty
- Drill template
Primary Construction - Stainless Steel
Suitable For - Chain and Rope
Boat Size - 7 to 10 metres in length
Gypsy Size - 8mm
Brand - Quick
Series - Balder BL2
Model - BL2 FF 1200
Voltage - 12V DC
Wattage - 1200W
Working Load - Working Load: 140kg (308.6 lb) / Max. Working Load: 420kg (925.9 lb)
Maximum Pull Load - 930kg (2050 lb)
Maximum Chain Speed - 31.2m/min (102.4 ft/min)
Amps - 130A at 140kg
Fuse - 80A Protection Circuit Breaker
Contents - Windlass, Reversing contactor unit T6415-12, Nylon handle, Bolts and screw (assembly, top/gearbox), Installation and User manual, Warranty, Drill template
Approvals - CE
Weight - 17.6kg (38 lb) without drum
Diameter - Mounting Holes: 9.50mm (3/8")
Size - Motor cable: 35mm² (AWG2) up to a total cable length of 20 metres
Specification List
| Type | Winch |
|---|
