Quick 915/CX Foot Switch 150A Cover SS - FP915CX00000A00

Click to enlarge

Codex

MPN FP915CX00000A00

£309.15

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Quick 915/CX Foot Switch 150A Cover SS - FP915CX00000A00


Part No: FP915CX00000A00

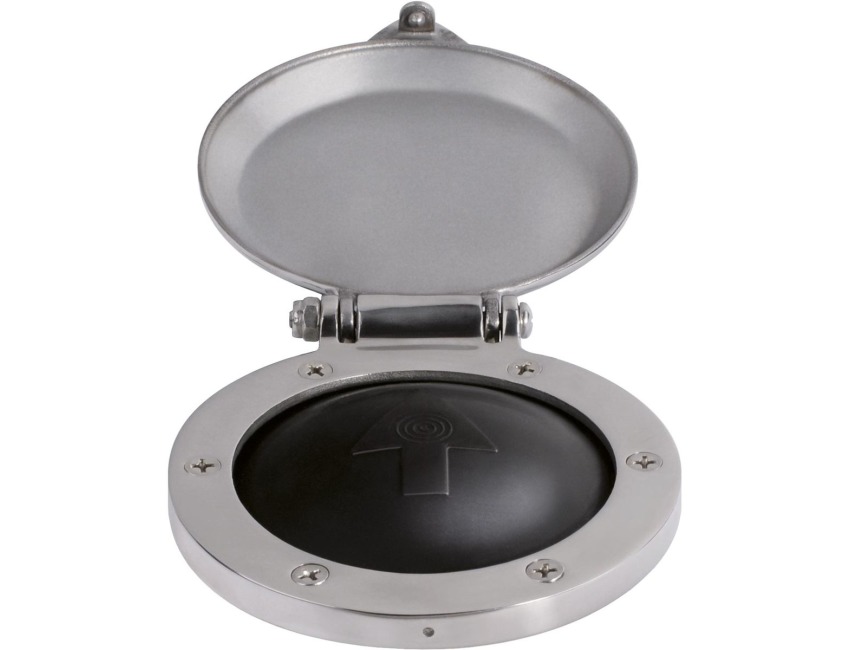

The Quick down/up foot switch 915/CX in AISI 316 stainless steel is suitable for anchor lowering or anchor lifting without using your hands. The Quick foot switch features a normally open contact and a protective lid to prevent any accidental switch operation.
This foot switch has an adjustable UP / DOWN indicator.
Note: the anchor up / down switch must be installed without using silicone.

Brand - Quick
Voltage - Max. 48V DC
Cut Out - 62mm (2-7/16") ID
Amps - 150A Max
Height - Open: 133mm (5-15/64"), Closed: 20mm (13/16"), Below Deck: 47.5mm (1-7/8")
Width - 103.5mm (4-5/64")
Length - 126.4mm (4-31/32")

Specification List

Type Foot Switch
