Quick 800 Windlass Control Switch Panel Up / Down Std - FPWCS8100000A00
Click to enlarge
Codex
MPN FPWCS8100000A00
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

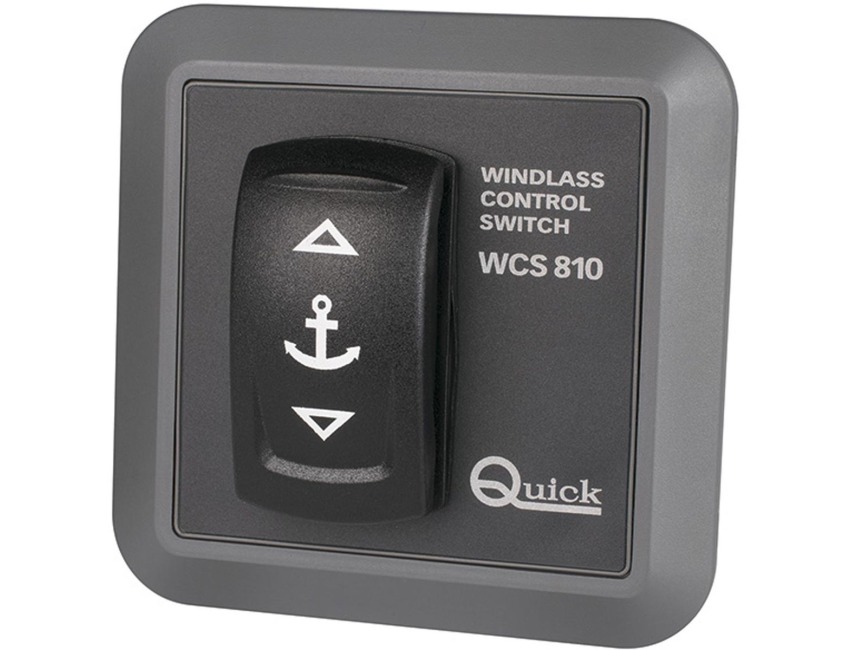

Quick 800 Windlass Control Switch Panel Up / Down Std - FPWCS8100000A00
Part No: FPWCS8100000A00
Quick WCS 810 windlass control switch panel enables you to operate the windlass from as far as the rudder-area. The Quick windlass control panel allows the windlass to be pulled up or lowered down with the press of a rocker switch.
Brand - Quick
Cut Out - 61mm (2-13/32")
Approvals - CE
Height - 77.2mm (3-1/32")
Width - 77.2mm (3-1/32")
Depth - Overall: 50.5mm (2"), Above Surface: 20.5mm (13/16"), Behind Panel: 30mm (1-3/16")
Diameter - Mounting Holes: 3mm (1/8")
Dimensions - Distance Between Mounting Hole Centres: 62mm (2-7/16")
Specification List
| Type | Switch |
|---|
