Plastimo Flexible Water Tank 100 Litres - 18033

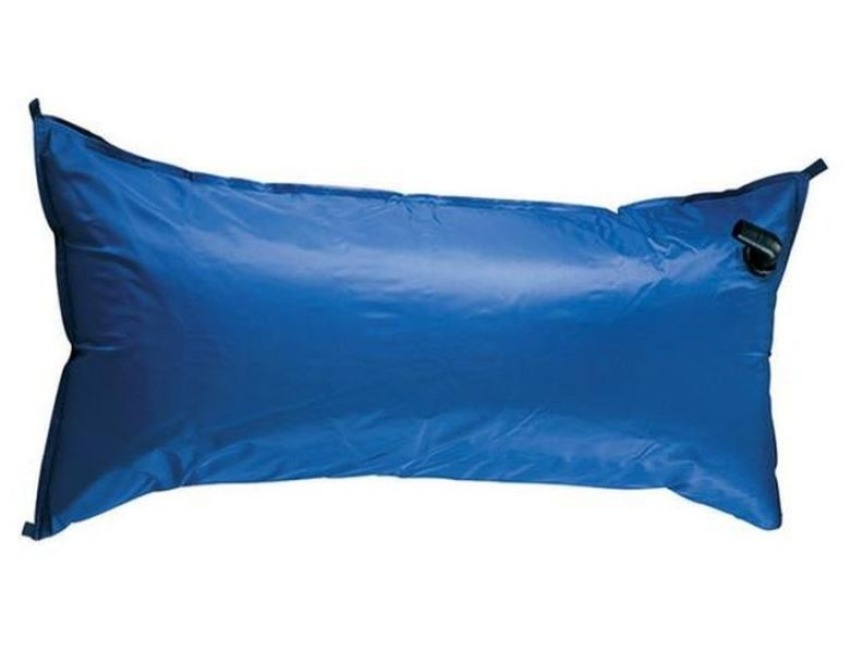

Plastimo Flexible Water Tank 100 Litres

The Plastimo water tanks consist of a welded non-porous tasteless PVC water chamber
inner bladder inside a tough nylon envelope, for complete watertightness and resistance
to tearing and abrasion.
The separate chambers allow the water tanks to be flexible enough to adapt their shape
during heavy pitching, and to remain rigid enough not to burst under pressure. The water
chamber is slightly oversized, thus allowing the pressure to be exerted not directly on the
seams, but on the sides of the bladder itself. All seams are high-frequency welded for top
resistance and watertightness.
The outer PVC coated nylon features double seams on all sides. Water tanks are supplied
complete, ready to install, with a 38mm inlet and 13mm outlet valves.

38 mm inlet valve is situated on upper side of tank
12 mm outlet valve is situated on back side of tank

Capacity: 100 Litres
Overall dimensions when empty: 75 × 110cm. Height when full: 25cm
